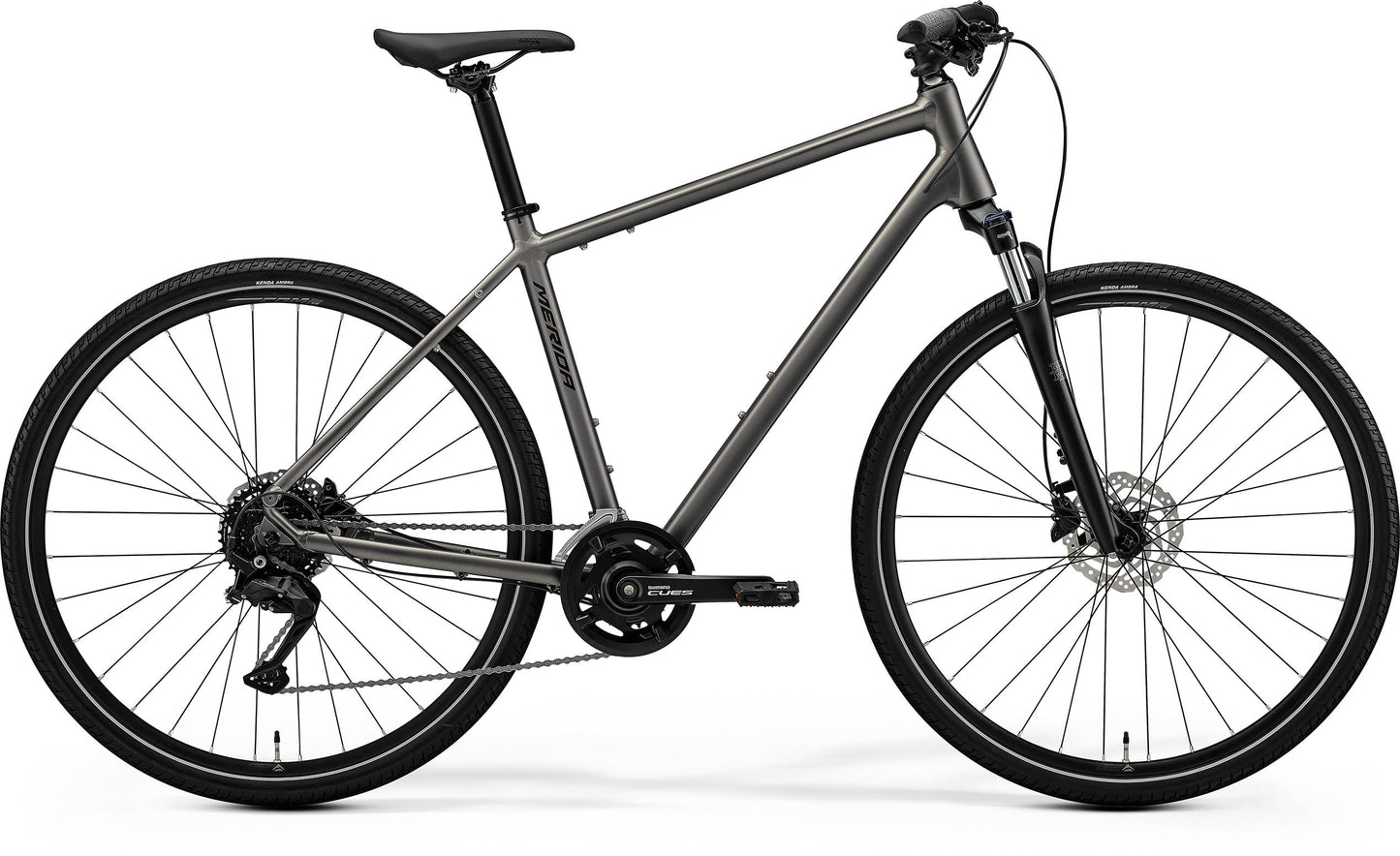

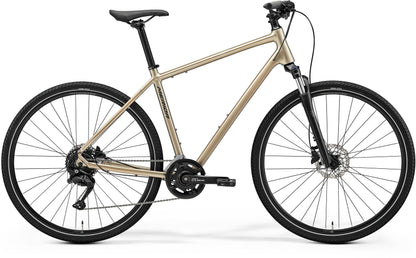

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
For ultimate adaptability, the Crossway can be equipped with mudguards, racks and kickstands.
Specification
| Frame | TFS IV - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
|---|---|
| Fork | SR Suntour NEX HLO; Coil; 63 mm travel; Lockout; 700x48C max. tyre size |
| Headset | Merida M2346 Neck |
| Shift Levers | Front: Shimano CUES U4000, Rear: Shimano CUES U4000 |
| Front Derailleur | Shimano CUES U4000 |
| Rear Derailleur | Shimano CUES U3020; SGS |
| Speeds | 18 |
| Cassette | Shimano LG300; 11-36 teeth; 9 speed |
| Chain | KMC xGlide |
| Chainset | Shimano CUES U4000; 40-26 tooth chainset; Crank length: (XXS-S) - 170mm, (M-XL) - 175mm |
| Bottom Bracket | Shimano BB-UN101; 73mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT200; 2 piston with Shimano RT10; 160mm |
| Rear Brake | Shimano MT200; 2 piston with Shimano RT10; 160mm |
| Wheel Size | 700c |
| Rim | Merida Comp TK; 20mm inner rim width; 17mm rim depth; material: aluminium |
| Spokes | Black stainless |
| Front Hub | Shimano QC300; 100x9mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano QC300-HM; 135x9mm; 32 Spoke; Centerlock |
| Front Tyre | Kenda Ambra K1278; 700x45C; wired; reflective stripe |
| Rear Tyre | Kenda Ambra K1278; 700x45C; wired; reflective stripe |
| Stem | Merida Comp CC; material: aluminium; 31.8 mm diameter; 17° degree rise; Length: 90mm |
| Handlebar | Merida Comp CC; material: aluminium; 680mm wide; 15mm rise |
| Grips | Merida Comp TK |
| Saddle | Merida Comp TK |
| Seat Post | Merida Comp CC; material: aluminium; 30.9mm diameter; 5mm layback |
| Pedals | VP VPE-889P |
