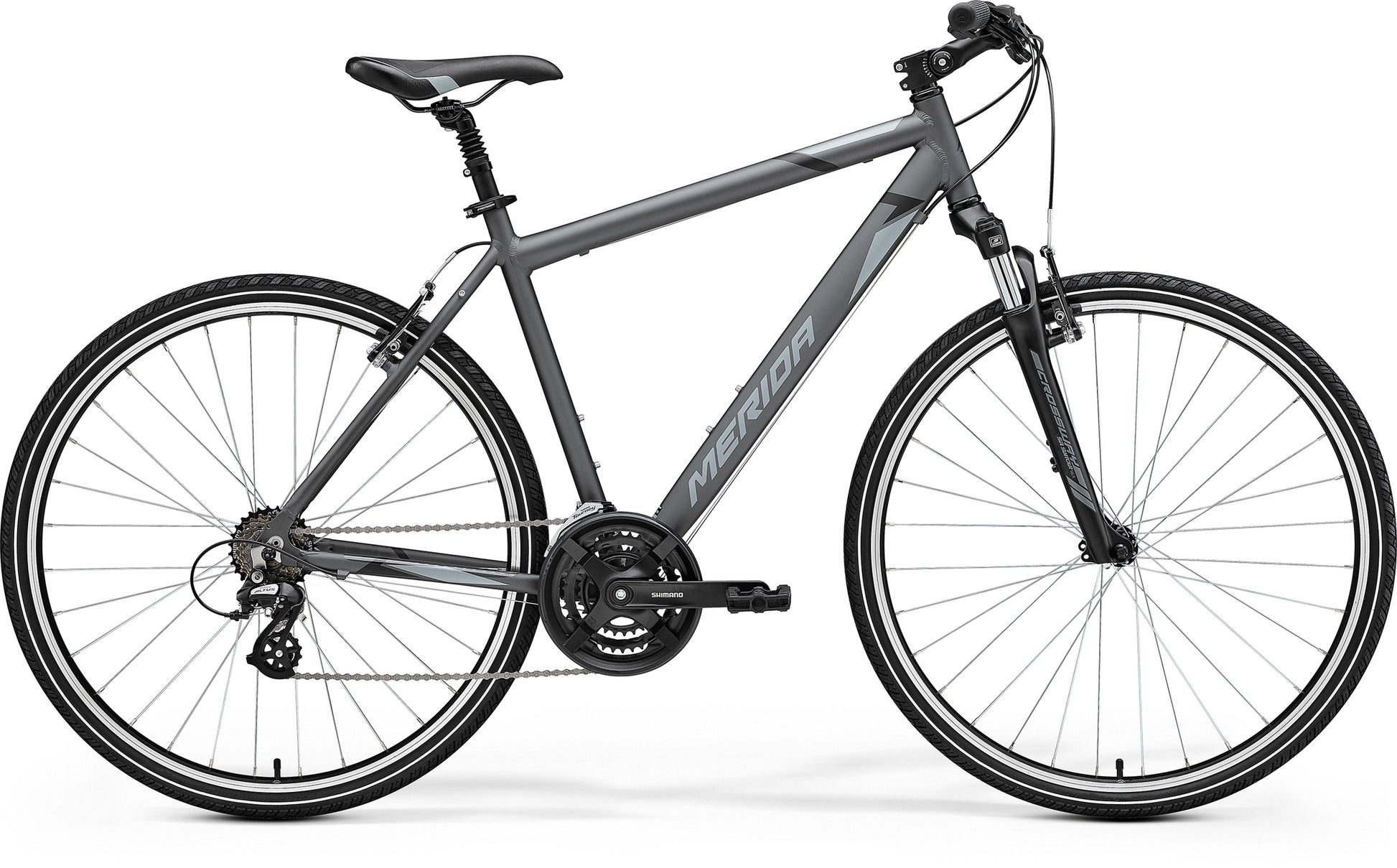

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
For ultimate adaptability, the Crossway can be equipped with mudguards, racks and kickstands.
Specification
| Frame | DT - 6061 double butted technoformed aluminium. BSA BB standard, 135 x 9mm QR axle standard. Mounting points for rack, mudguards and kickstand. Max tyre size 700 x 42c |
|---|---|
| Fork | Suntour NEX; Coil; 63mm travel. Max tyre size: 700 x 50c |
| Headset | FSA TH888 |
| Shift Levers | Shimano ST-EF500 |
| Front Derailleur | Shimano FD-TY510 |
| Rear Derailleur | Shimano RD-M310 |
| Speeds | 21 |
| Cassette | Shimano MF-TZ500; 14-28 teeth; 7 speed |
| Chain | KMC NS8 |
| Chainset | Shimano TY301; 48-38-28 tooth chainset. Crank length: 170mm (S), 175mm (M/L,XL) |
| Bottom Bracket | FSA TH-7420ST, Cartridge Bearing |
| Brake Type | V Brake |
| Brake Lever | Shimano ST-EF500 |
| Front Brake | Promax MTV-117A V Brake |
| Rear Brake | Promax MTV-117A V Brake |
| Wheel Size | 700c |
| Rim | Merida CC; 17mm inner rim width; Aluminium |
| Spokes | Steel UCP |
| Front Hub | Joytech JY-751DSE; 100x9mm; 32 spokes |
| Rear Hub | Joytech JY-752DSE; 135x9mm; 32 spokes |
| Front Tyre | Merida K1171; 700x40C; wire bead |
| Rear Tyre | Merida K1171; 700 x 40C; wire bead |
| Stem | Merida TK; aluminium; 25.4mm diameter; adjustable - Stem length: 100mm (all sizes) |
| Handlebar | Merida CC; steel; 620mm width; 30mm rise |
| Grips | Merida EC |
| Saddle | Merida Cross Sport |
| Seat Post | Merida TK; 27.2mm diameter; 13mm setback; 40mm seatpost suspension travel |
| Pedals | VP Components, VPE-891 |
Geometry
