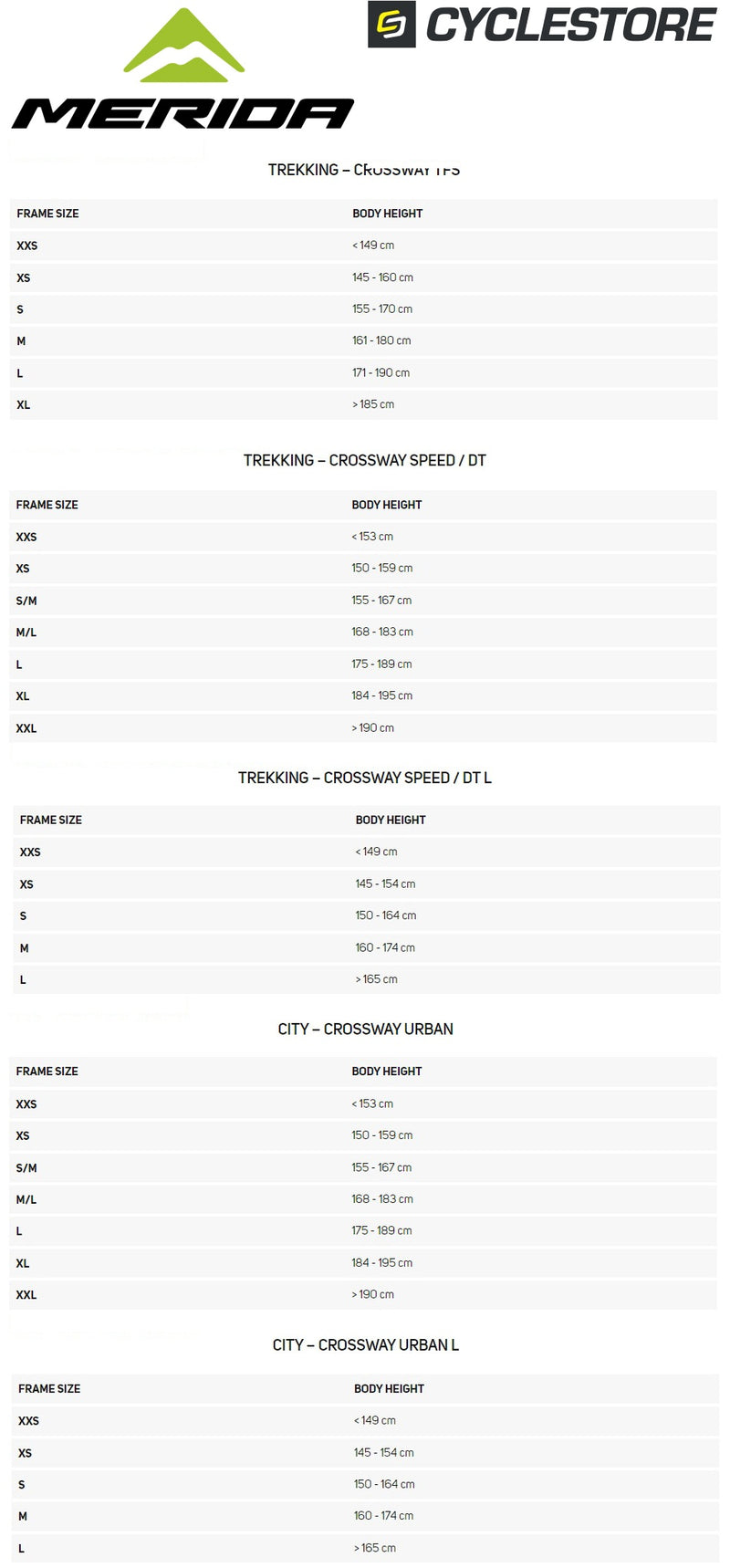

- SIZE GUIDE
- DELIVERY
- REVIEWS
- ASK A QUESTION

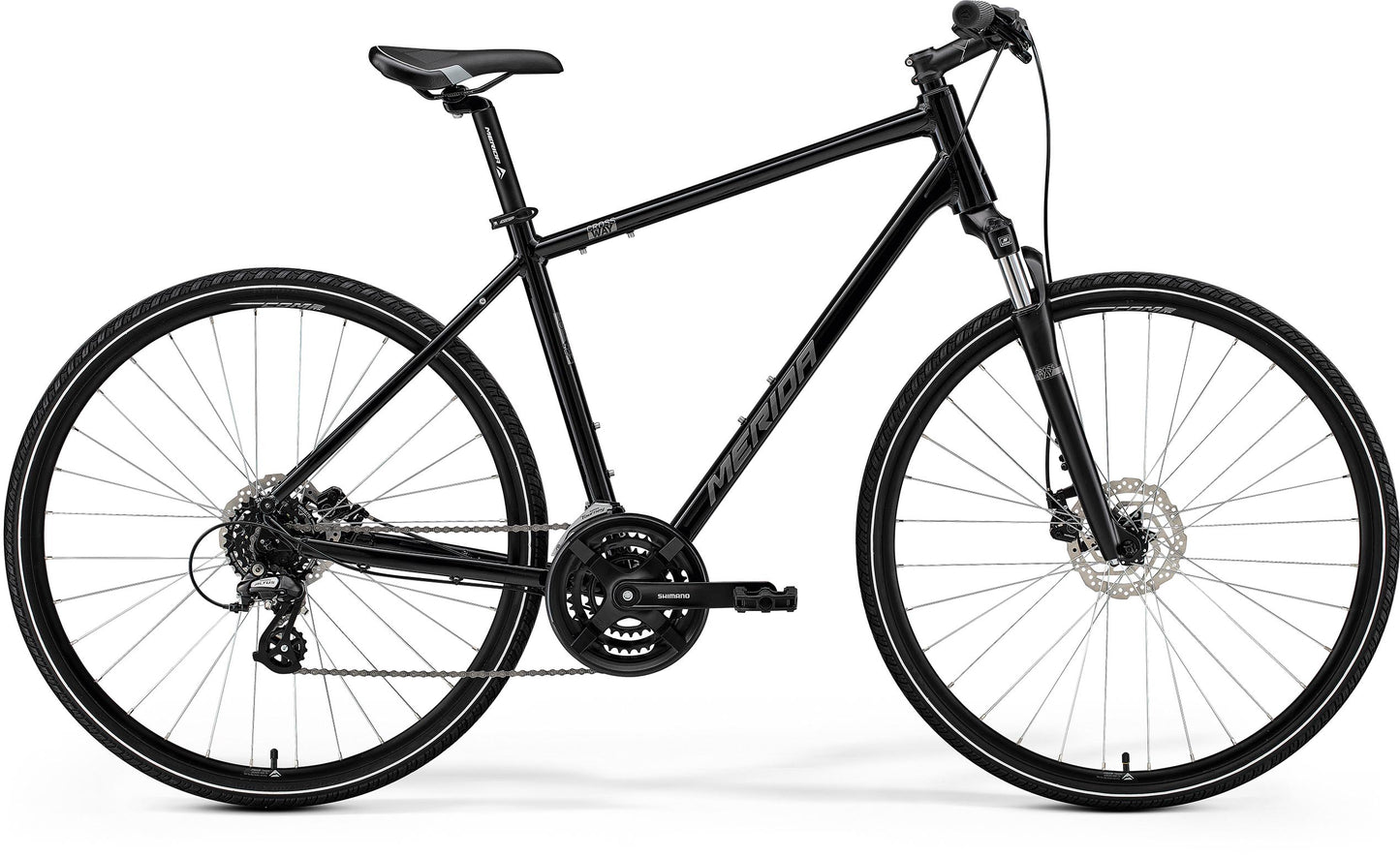

The Crossway is the perfect blend of comfort, enjoyment and all around practicality, suitable for leisure rides or commuting.
All disc brake models use the same lightweight aluminium frame with a steep, sloping top tube providing plenty of standover height.
For ultimate adaptability, the Crossway range can be equipped with mudguards, racks and kickstands.
Specification
| Frame | TFS III - 6061 double butted technoformed aluminium tubing with internal cable routing. Tapered head tube, inboard disc mounts, BSA BB standard, 135 x 9mm QR axle standard. Mounts for rack, mudguards and kickstand. Max tyre size 700 x 50c |
|---|---|
| Fork | SR Suntour NEX DS; Coil; 63mm travel; Max tyre size: 700x50C |
| Headset | Merida M2345 |
| Shift Levers | Shimano ST-EF500 |
| Front Derailleur | Shimano FD-TY510-3 |
| Rear Derailleur | Shimano RD-M310-7 |
| Speeds | 21 |
| Cassette | Shimano CS-HG200-7; 12-32 teeth; 7 speed |
| Chain | Sunrace CNM84 |
| Chainset | Shimano TY301; 48-38-28 tooth chainset; Aluminium; Crank length - 170mm (XXS/SM), 175mm (ML and up) |
| Bottom Bracket | Shimano BB-UN101 73-123 |
| Brake Type | Mechanical Disc |
| Brake Lever | Shimano ST-EF500 |
| Front Brake | Shimano BR-M375 mechanical disc brake caliper with Shimano RT10; 160mm rotor |
| Rear Brake | Shimano BR-M375 mechanical disc brake caliper with Shimano RT10; 160mm rotor |
| Wheel Size | 700c |
| Rim | Merida CC; 17mm inner rim width; aluminium |
| Spokes | Steel UCP |
| Front Hub | Shimano TX505; 100 x 9mm; 32 spoke; Centerlock |
| Rear Hub | Shimano TY505-7; 135 x 9mm; 32 spoke; Centerlock |
| Front Tyre | Merida K1171; 700 x 40C; wire bead |
| Rear Tyre | Merida K1171; 700 x 40C; wire bead |
| Stem | Merida Comp TK; aluminium; 25.4mm diameter; 7 degree rise - Length - 100mm (all sizes) |
| Handlebar | Merida CC; steel; 620mm wide; 30mm rise |
| Grips | Merida EC |
| Saddle | Merida Cross Sport |
| Seat Post | Merida CC; 30.9mm diameter; 15 mm layback; Aluminium |
| Pedals | VP VPE-891 |
Geometry
