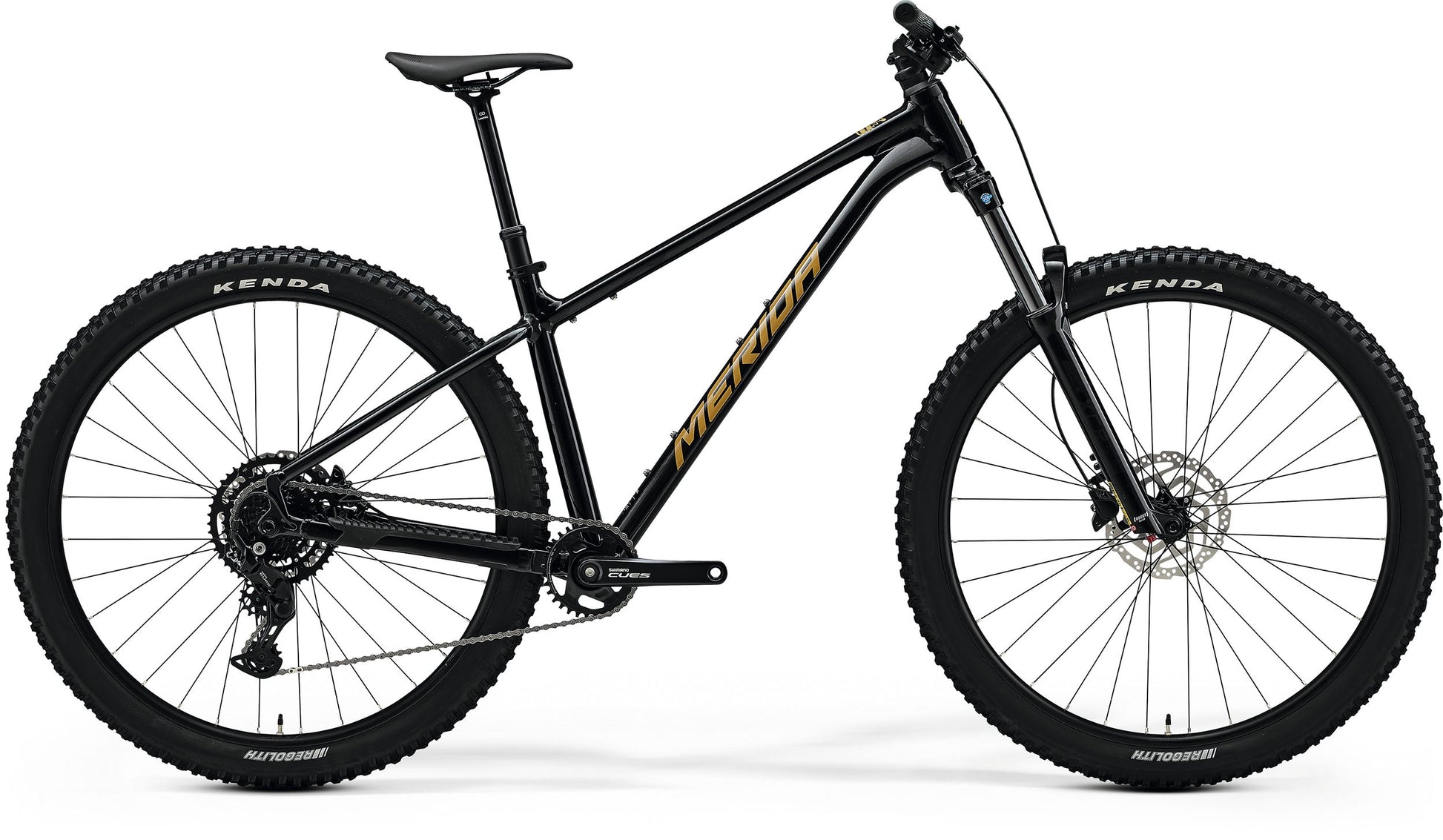

The original Big Trail concept was the result of a few UK dealers discussing the ideal UK trail bike with the Merida R&D chief - simple: 140mm air fork, 29" wheels, 1 x transmission and a dropper post.
Now in its 2nd iteration Big Trail is a fun-packed and hugely capable trail bike. Its progressive geometry combines a steep 76.5° seat angle with a slack 64.0° head angle giving great climbing characteristics and plenty of stability when the terrain gets steep or rough.
Sizing follows the Agilometer principle which means most sizes work for most body sizes so that riding style can be factored in. If you want to go fast, take the longer size, for agility, take a shorter size.
Specification
| Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
|---|---|
| Fork | SR Suntour XCR34 2CR; Air; 140 mm travel; Tapered; lockout; 44mm fork offset; 29x2.4" max. tyre size |
| Headset | Acros ICR Merida External neck; Upper and lower IPS sealing |
| Shift Levers | Rear: Shimano CUES U4000 |
| Rear Derailleur | Shimano CUES U4000; |
| Speeds | 9 |
| Cassette | SunRace U9; CS-U980 9AZ; 11-46 teeth; 9 speed |
| Chain | KMC xGlide |
| Chainset | Shimano CUES UT-400-1; 32 tooth chainset; Crank length: 170mm |
| Bottom Bracket | Shimano BB-UN101; 73mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT200; 2 piston with Shimano RT10; 180mm |
| Wheel Size | 29" |
| Rim | Merida Comp CC II; 25mm inner rim width; material: aluminium; tubeless ready |
| Spokes | Black stainless |
| Front Hub | Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock |
| Front Tyre | Kenda Regolith; 29x2.4"; wired |
| Rear Tyre | Kenda Regolith; 29x2.4"; wired |
| Stem | Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm |
| Handlebar | Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise |
| Grips | Merida Comp TR |
| Saddle | Merida Comp SL; V-mount |
| Seat Post | Merida Comp TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-XLong) - 170mm seat post travel |
| Pedals | Not included |
Geometry
