Merida's expertise for over 50 years has been building bombproof aluminium hardtails.
The latest generation follows modern mountain bike trends - a longer reach combined with a shorter stem. The geometry features a steeper seat angle and slacker head angle for greater offroad capability but without compromising everyday usability.
The sophisticated TFS frames feature:
full internal cable routing for a clean, neat set up,
tapered headtube offering future upgrade potential
inboard disc brake mounts protect the brake and maximise stopping power
dropper post ready
New XXS Big Seven size extends the wide range of sizes; Big Nine for taller riders, Big Seven for shorter riders. Riders in the middle can take riding style into account - for speed and efficiency choose a Big Nine, for agility choose a Big Seven.

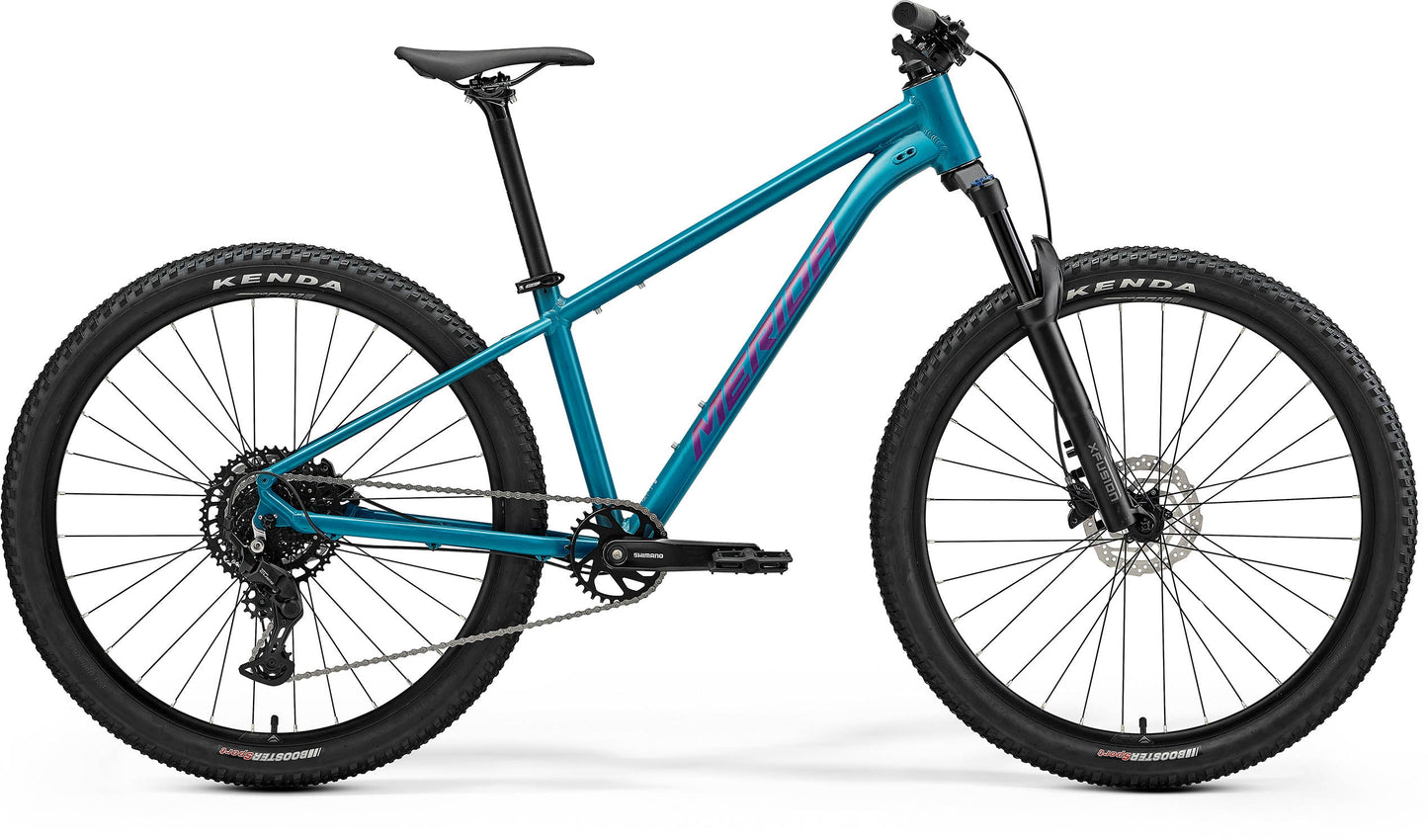

Specification
| Frame | TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4" |
|---|---|
| Fork | X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 27.5x2.4" max. tyre size |
| Headset | FSA NO.55R/57SC/57B |
| Shift Levers | Rear: Shimano Cues U4000 |
| Rear Derailleur | Shimano Cues U4000; GS |
| Speeds | 9 |
| Cassette | SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed |
| Chain | KMC xGlide |
| Chainset | Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: 165mm |
| Bottom Bracket | Shimano UN101 LL123 |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
| Rear Brake | Shimano MT200; hydraulic brake with Shimano RT10; 160 mm |
| Wheel Size | 27.5" |
| Rim | Merida Comp CC; 20mm inner rim width; material: aluminium |
| Spokes | Black steel |
| Front Hub | Shimano TX505; 100x9mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TX505; 135x9mm; 32 Spoke; Centerlock |
| Front Tyre | Kenda Booster; 27.5x2.4" 2nd color option: Booster 27.5x2.4 tanwall |
| Rear Tyre | Kenda Booster; 27.5x2.4" 2nd color option: Booster 27.5x2.4 tanwall |
| Stem | Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise |
| Handlebar | Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide |
| Grips | Merida Comp TR |
| Saddle | Merida Comp SL |
| Seat Post | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
| Pedals | VP VPE 536 |
Geometry
