XC racing is in Merida's DNA, the Multivan Merida Biking team boasted countless national, European, World and even Olympic medals.

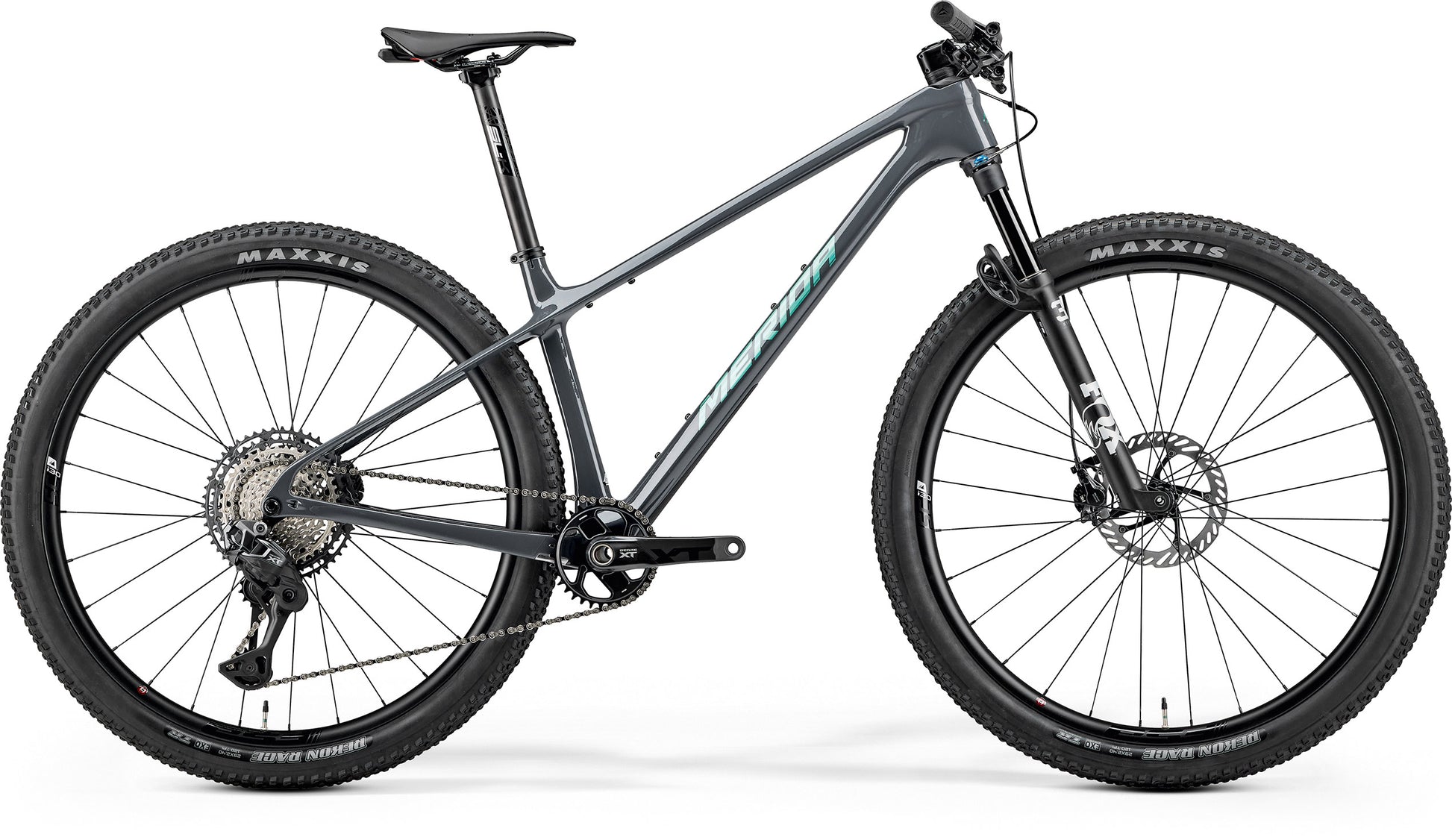

The Big Nine XT features the brand new Shimano XT Di2 wireless groupset and offers up some serious cross-country speed thanks to our lightweight carbon fibre frame, FSA SCi30 carbon wheels and fast rolling 2.4" Maxxis Rekon tyres it'll make rapid progress whether on the race track or the trail.
Specification
| Frame | CF3 III - carbon; Boost axle standard, BSA BB standard, Max. tyre size 29" x 2.4" |
|---|---|
| Fork | Fox 32 SC Performance; Air; 100 mm travel; Tapered; 2 position remote lockout; 29x2.4" max. tyre size; 44 mm fork offset |
| Headset | Acros ICR Merida Integrated neck; Upper and lower IPS sealing |
| Shift Levers | Rear: Shimano XT DI2 M8250; wireless |
| Rear Derailleur | Shimano XT DI2 M8250; wireless; SGS |
| Speeds | 12 |
| Cassette | Shimano Deore M8200; 10-51 teeth; 12 speed |
| Chain | KMC X12 |
| Chainset | Shimano XT M8200; 34 tooth chainset; Crank length: (S-M) - 170mm, (L-XXL) - 175mm |
| Bottom Bracket | Shimano BB-MT-801; 24mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano XT M8200; 2 piston with Shimano RT-CL700; 180mm |
| Rear Brake | Shimano XT M8200; 2 piston with Shimano RT-CL700; 160mm |
| Wheel Size | 29" |
| Rim | FSA SCi30; 110x14mm; 148x12mm; 30mm inner rim width; Centerlock;Shimano Microspline; material: carbon; Tubeless ready (tubeless tape installed) |
| Spokes | Part of wheelset - FSA SCi30 |
| Front Hub | Part of wheelset - FSA SCi30 |
| Rear Hub | Part of wheelest - FSA SCi30 |
| Front Tyre | Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO |
| Rear Tyre | Maxxis Rekon Race; 29x2.4" WT; tubeless ready; 3C MaxxTerra EXO |
| Stem | Length: (S-L) - 60mm, (XL-XXL) - 80mm |
| Handlebar | FSA SIC CF 1-piece cockpit; material: carbon; 760mm wide, -7°; (S-L) - 60mm rise, XL - 80mm rise |
| Grips | Merida Comp TR |
| Saddle | Prologo Akero R PAS; reycled; V-mount; incl. Merida minitool |
| Seat Post | FSA SL-K; MAT carbon; 30.9mm diameter; in-line |
| Pedals | Not included |
Geometry
