XC racing is in Merida's DNA, the Multivan Merida Biking team boasted countless national, European, World and even Olympic medals.

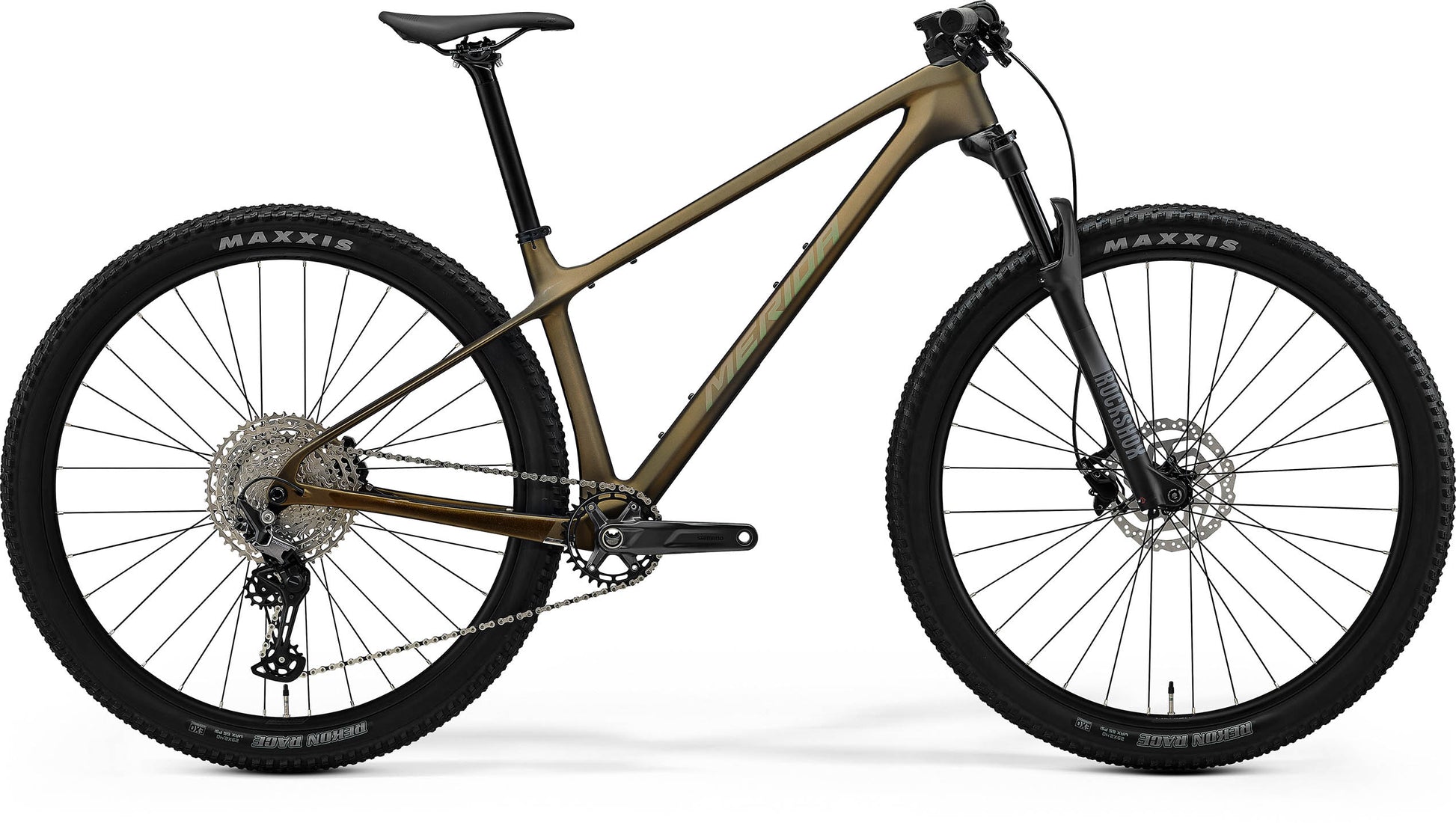

The classic race hardtail remains one of the purest tools for the job. Whether you want to take on epic rides or cross-country races, the Big Nine 3000 is the perfect place to start. The lightweight CF3 carbon fibre frame uses the Agilometer sizing system so you can match your riding style and the progressive geometry combines lightning-fast reactions with downhill abilities and comfort that you'd never expect.
Specification
| Frame | CF3 III - carbon; Boost axle standard, BSA BB standard, Max. tyre size 29" x 2.4" |
|---|---|
| Fork | RockShox Judy Gold RL; Air; 100 mm travel; Tapered; Remote lockout; 29x2.4" max. tyre size; 51 mm fork offset |
| Headset | Acros ICR Merida Integrated neck; Upper and lower IPS sealing |
| Shift Levers | Rear: Shimano Deore M6100 |
| Rear Derailleur | Shimano Deore M6100; SGS |
| Speeds | 12 |
| Cassette | Shimano Deore M6100; 10-51 teeth; 12 speed |
| Chain | KMC X12 |
| Chainset | Shimano Deore MT512; 32 tooth chainset; Crank length: (S-M) - 170mm, (L-XXL) - 175mm |
| Bottom Bracket | Shimano BB-MT-501; 24mm |
| Brake Type | Hydraulic Disc |
| Front Brake | Shimano MT200; 2 piston with Shimano RT10; 180mm |
| Rear Brake | Shimano MT200; 2 piston with Shimano RT10; 180mm |
| Wheel Size | 29" |
| Rim | Merida Comp CC II; 25mm inner rim width; material: aluminium; tubeless ready (Stans 30mm tubeless tape installed) |
| Spokes | Black stainless |
| Front Hub | Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock |
| Rear Hub | Shimano TC500-MS-B; 148x12mm; 32 Spoke; Centerlock |
| Front Tyre | Maxxis Rekon Race; 29x2.4"; wired |
| Rear Tyre | Maxxis Rekon Race; 29x2.4"; wired |
| Stem | Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (S-M) - 60mm, (L-XL) - 70mm, XXL - 80mm |
| Handlebar | Merida Expert CC; material: aluminium; 760mm wide; flat |
| Grips | Merida Comp TR |
| Saddle | Merida Comp SL; V-mount |
| Seat Post | Merida Comp CC; material: aluminium; 30.9mm diameter; in-line |
| Pedals | Not included |
Geometry
