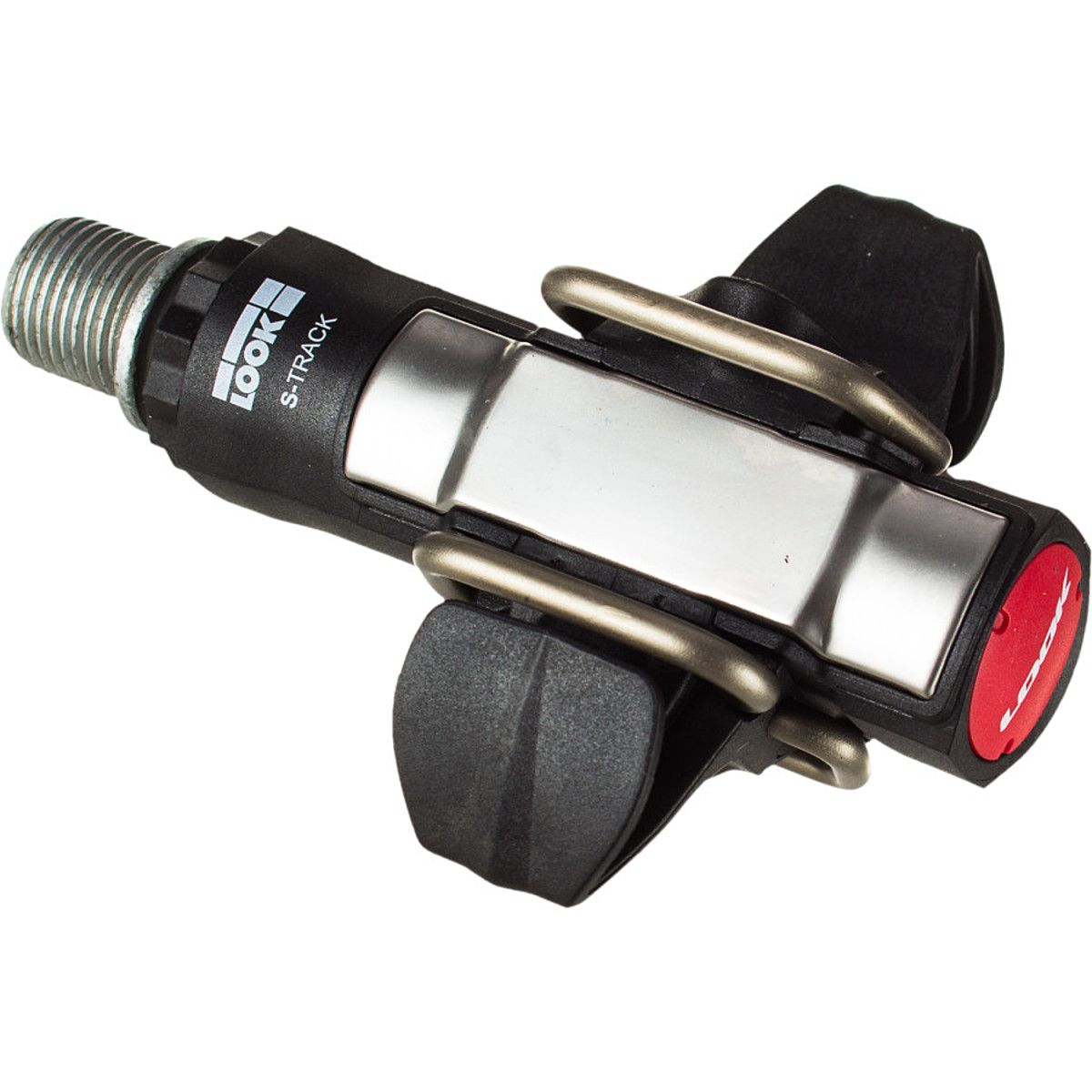

LOOK S-Track MTB Pedal w/ Cleats

Composite body and deflectors

460mm² of surface area

Compact and light: 142 g

Largest bearing surface on the market for maximum power transfer


Compact and light-weight with its patented spring-wire system functioning under torsion

Optimum mud evacuation with the DCS (Dynamic Cleat System)

USE
XC LEISURE / ALL MOUNTAIN

BODY
COMPOSITES

DEFLECTORS
COMPOSITES

SPINDLE
CHROMOLY

THREAD
9/16 X 20 MM

BEARINGS
2 BALL BEARINGS 1 IGUS BUSHING

IMPERMEABILITY
1 LIP SEAL + 1 SEAL INTEGRATED INTO THE BEARING ELASTOMER PLUG

SPINDLE / SOLE HEIGHT
122 MM

DISTANCE BETWEEN PEDAL SPINDLE & CRANK ARM
53 MM

MULTITENSOR
NO

CLEATS
DCS (DYNAMIC CLEAT SYSTEM)

ANGULAR MOVEMENT
± 3°

LATERAL MOVEMENT
± 1MM

CLEAT REMOVAL ANGLE
15°

WEIGHT OF PEDAL
142 G. (320 G. PER PAIR WITH CLEATS AND SCREWS)

COLOURS
BLACK

ACCESSORIES
1 PAIR OF CLEATS 1 SET OF WEDGES 1 SET OF SCREWS

WARRANTY
2 YEARS

• DOUBLE SURFACE AREA

The S-Track pedal is the first in the world of MTB to offer a double surface area:

• a cleat-pedal contact - 200 mm² - via elastomer pads. This contact is ensured regardless of the type of shoe by using the 2mm wedge.

• an additional pedal-crampons contact can be obtained by adjusting the height of the cleat with wedges (0.5 1 and 2mm) which are slipped under the cleat. The total surface obtained 460 mm² is by far the largest on the market which assists power transmission and provides unmatched comfort.

S-track
• NEW PATENTED FIXING SYSTEM

The new S-shaped spring-wire acting as a torsion bar (LOOK patent) provides impressive efficiency: instant cleat insertion and removal in any conditions absence of untimely cleat removal long working life.

The spring-wire system has been proven in the most severe conditions both in the laboratory and actual use.

The simplicity of its design makes the S-Track compact light and reliable able to meet the demands of mountain bikers of all levels.

• THE DCS CLEAT (DYNAMIC CLEAT SYSTEM)

This cleat is specially designed to ensure optimal evacuation of mud. This guarantees cleat insertion and removal even in the most extreme conditions.

Its build-in pads (LOOK technology) provide stable and effective contact as well as maximum comfort by eliminating functional play by pedalling fluidity that recalls the best road pedals.
