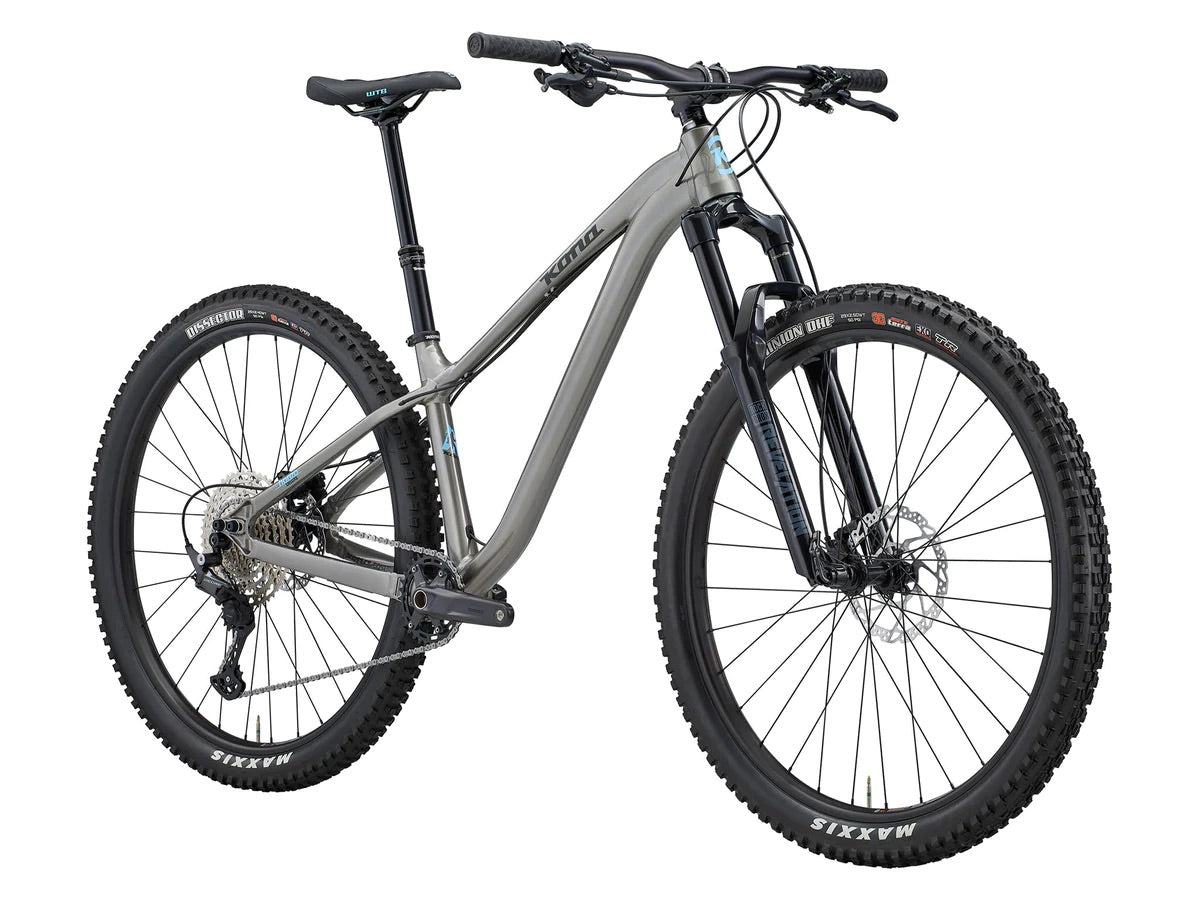

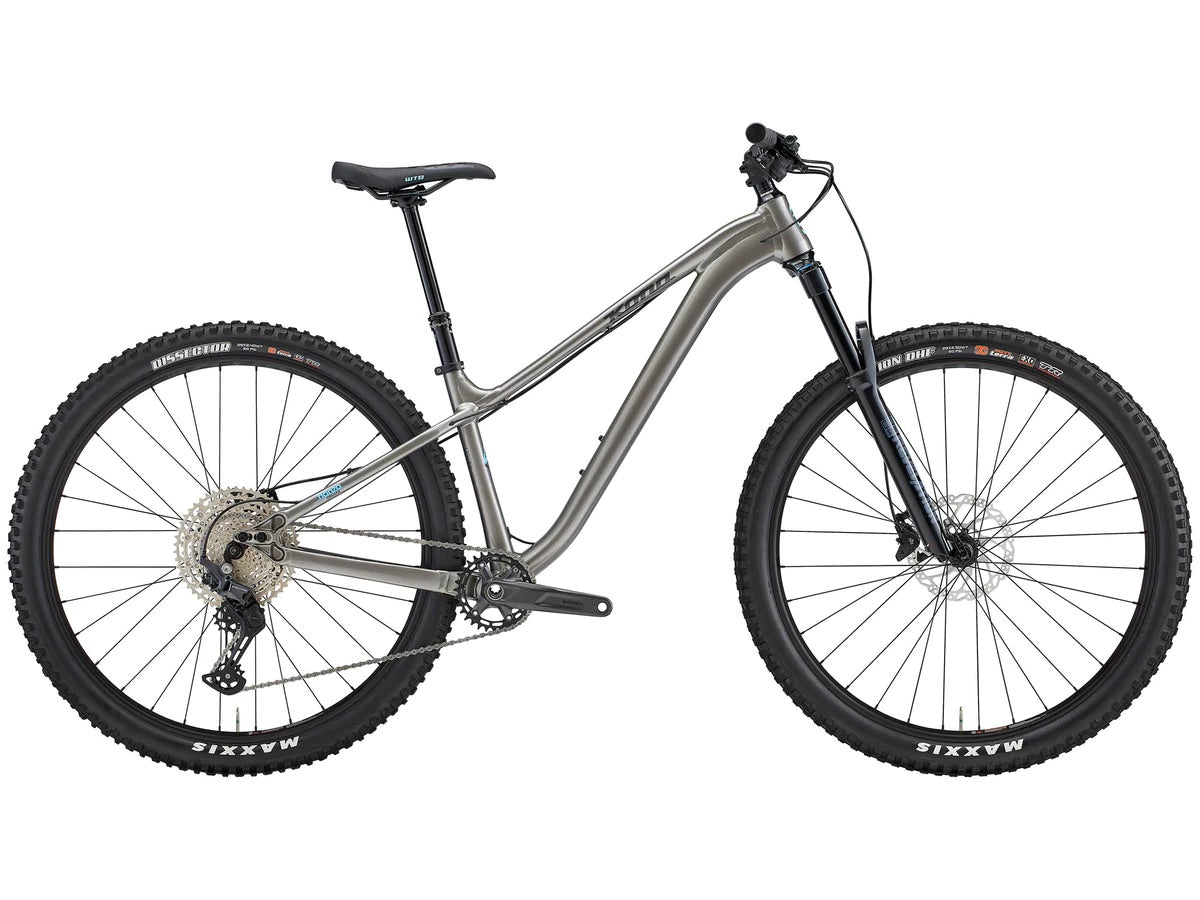

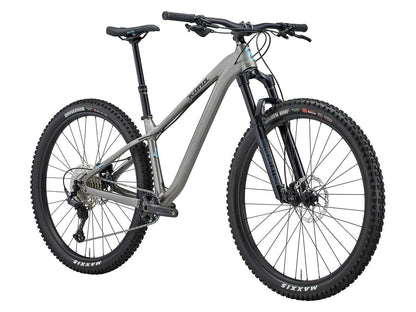

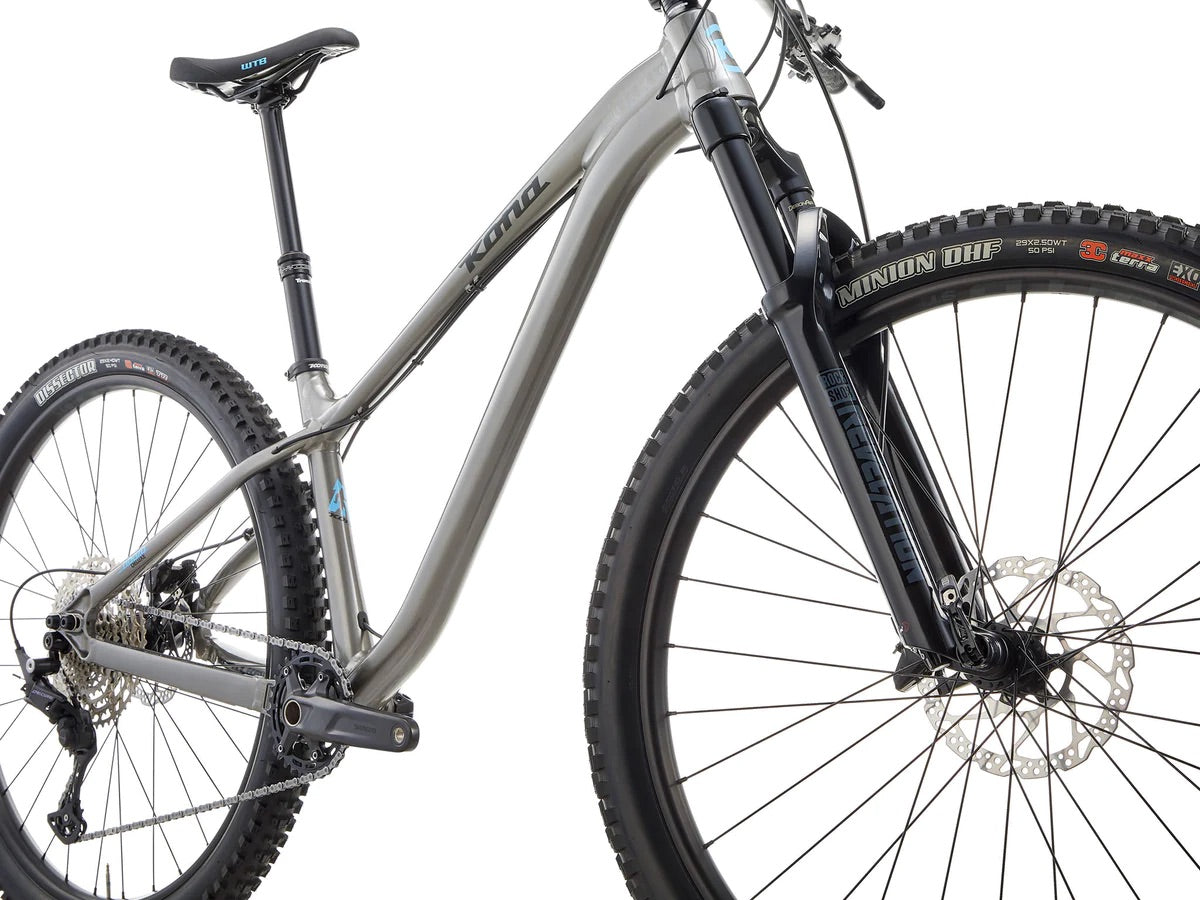

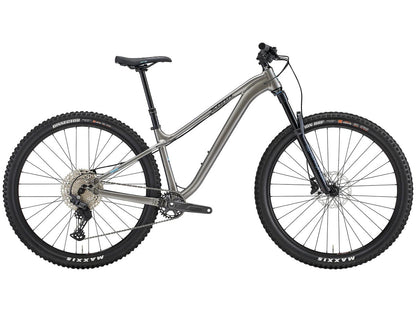

For the hardtail enthusiast, the Honzo DL is a quintessential bike to have in your quiver. Featuring an aluminum frame with geometry derived from the Process 134 it’s ready to rip up and down the trails. A short seat tube allows you to run a longer dropper post, and adjustable dropouts allow you to run the bike geared or as a single speed. Sitting squarely between the Honzo and the Honzo ESD – the Honzo DL is the all-round hardtail for any location.
| B36HZD01 |
| B36HZD03 |
| B36HZD05 |
| B36HZD06 |
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME MATERIAL | Kona 6061 Aluminum Butted |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | RockShox Revelation RC DebonAir 140mm Tapered 110mm Spacing |

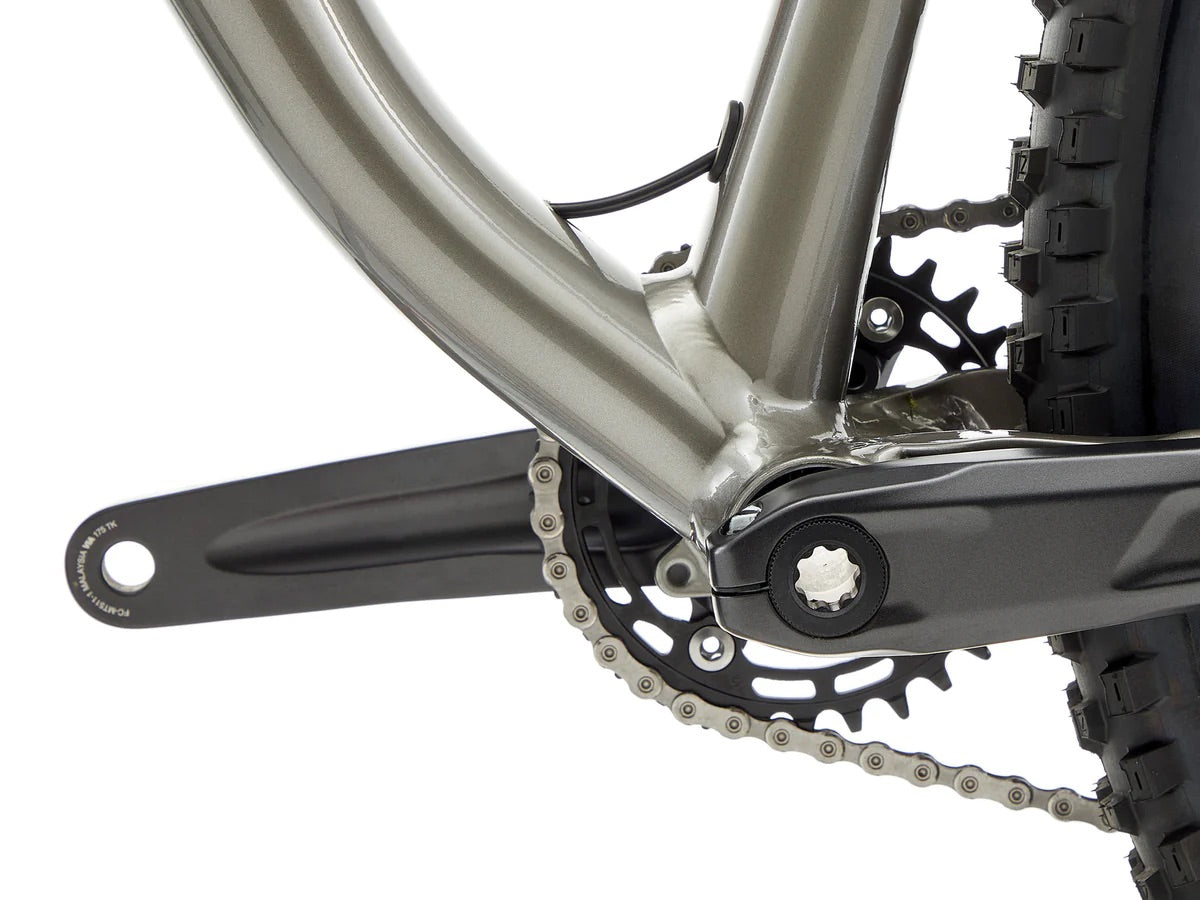

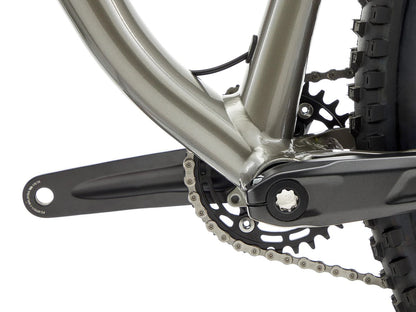

| CRANKARMS | Shimano Deore 12 spd |
| CHAINRINGS | 32t |
| B/B | Shimano PF92 |
| PEDALS | n/a |
| CHAIN | Shimano Deore 12 spd |
| CASSETTE | Shimano Deore 11-50t 12spd |
| CHAINGUIDE | n/a |
| F/D | n/a |
| R/D | Shimano Deore 12 spd |
| SHIFTERS | Shimano Deore 12 spd |

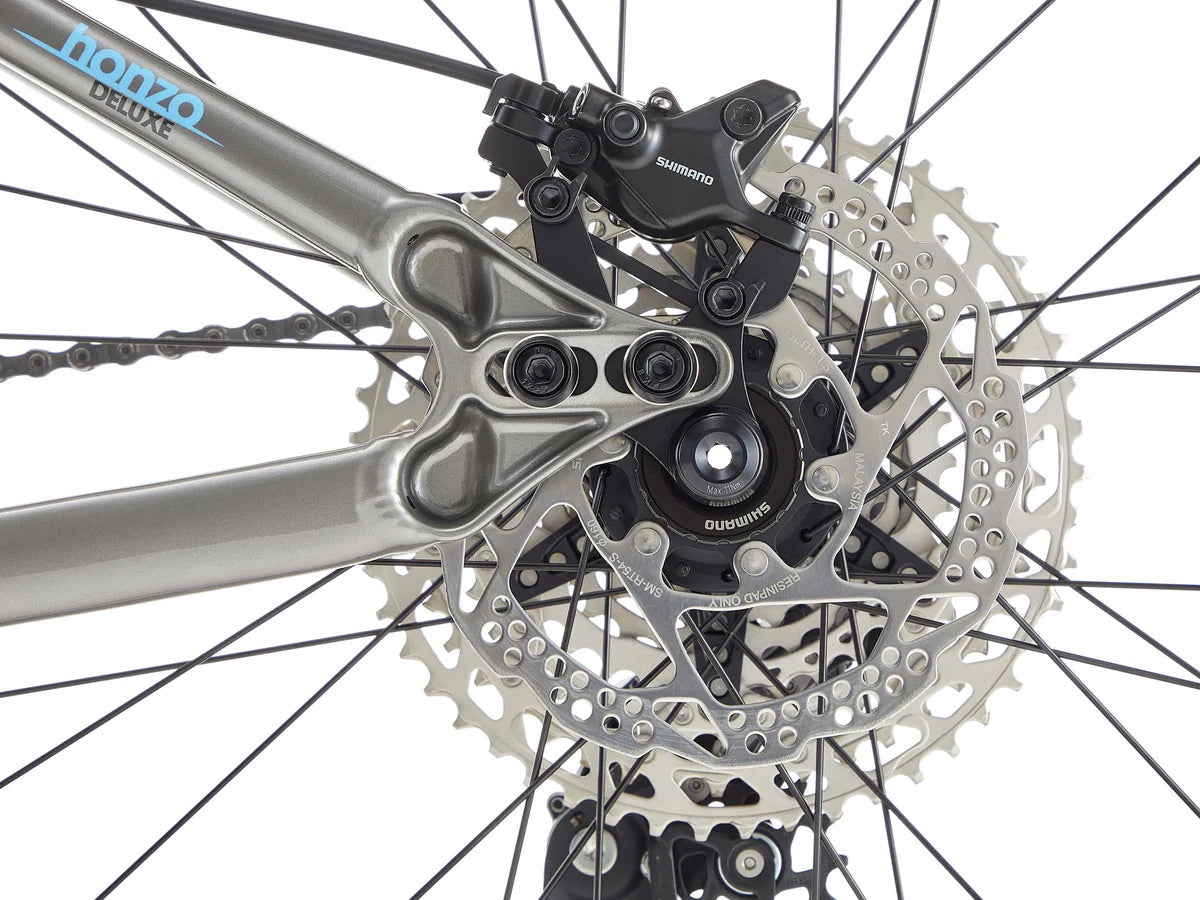

| BRAKE CALIPERS | Shimano MT410 Hydraulic |
| FRONT BRAKE ROTOR | Shimano RT54 180mm (centerlock) |
| REAR BRAKE ROTOR | Shimano RT54 160mm (centerlock) |
| BRAKE LEVERS | Shimano MT410 Hydraulic |

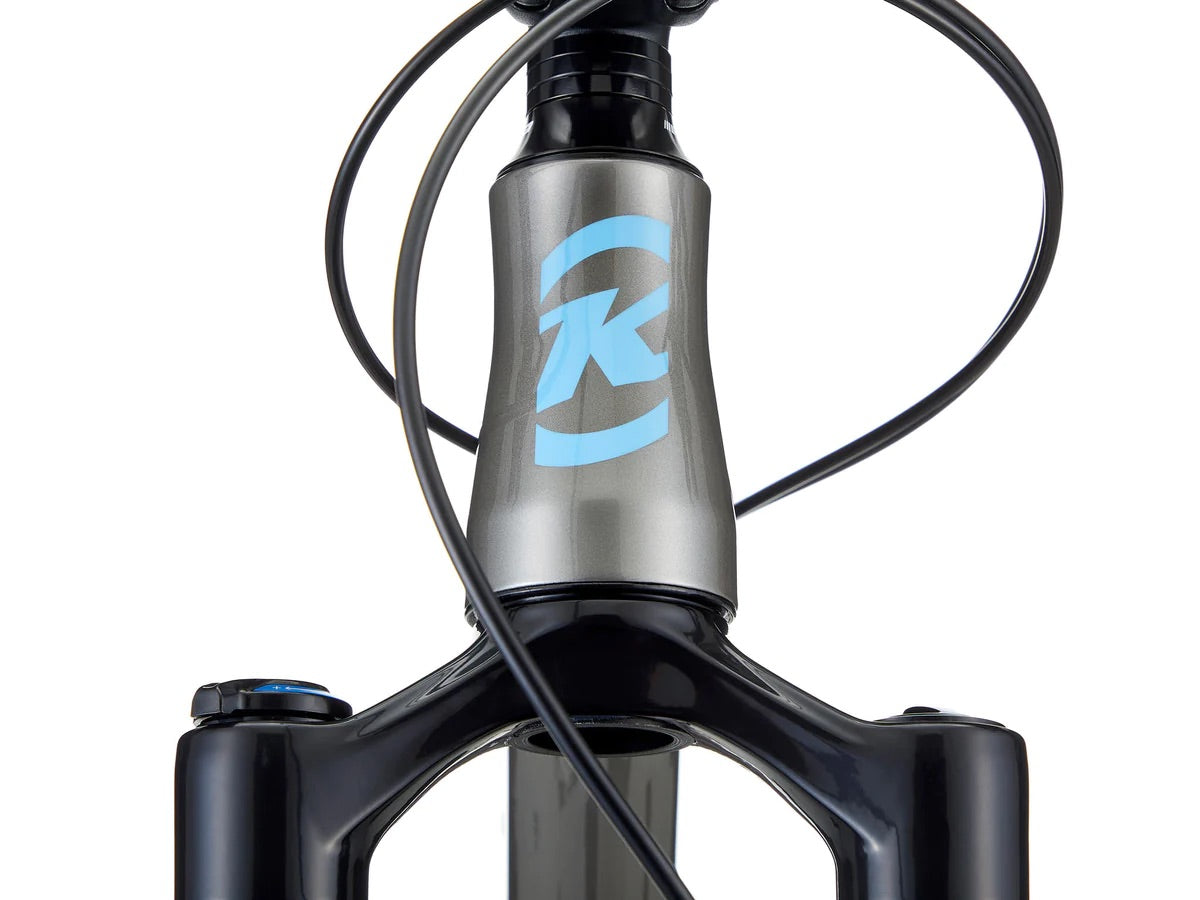

| HEADSET | FSA No.57B |
| HANDLEBAR | Kona XC/BC 35 |
| STEM | Kona XC/BC 35 |

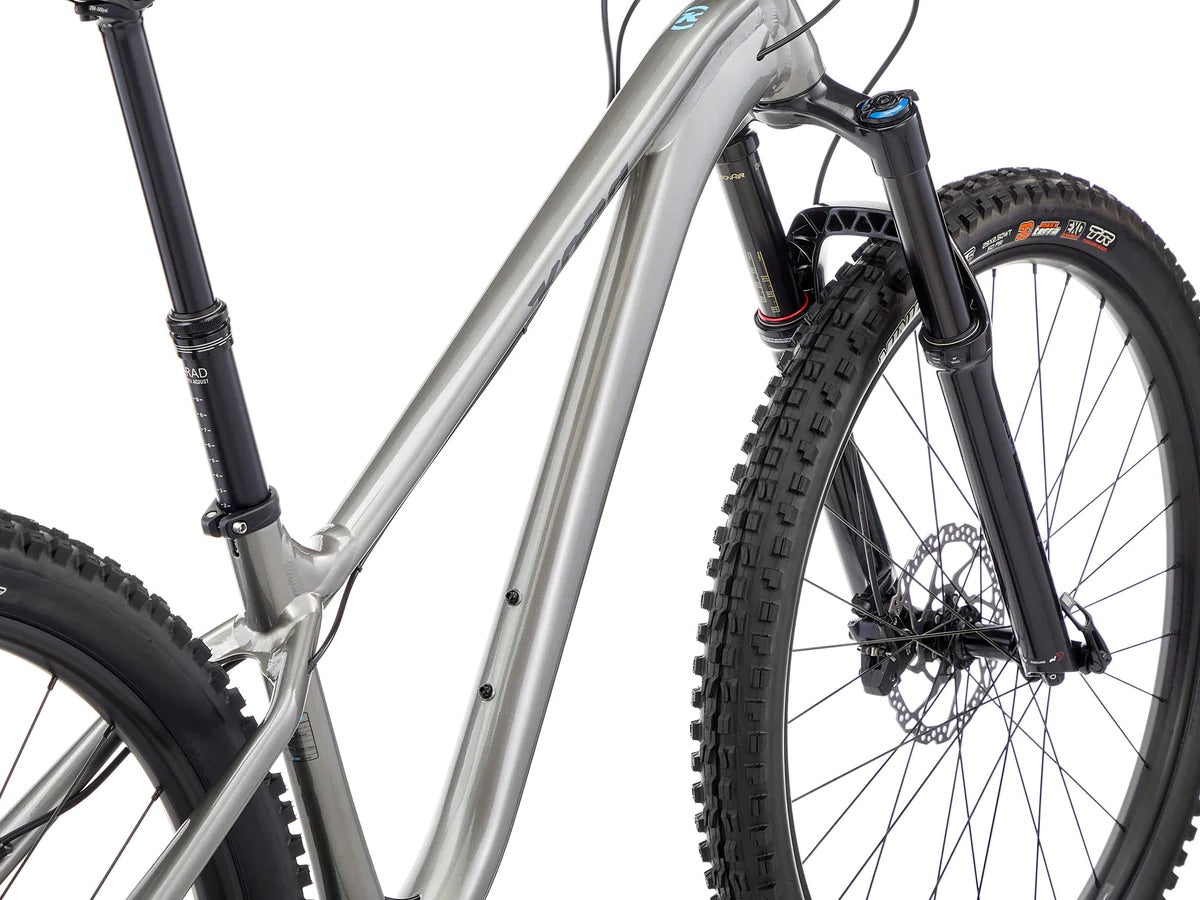

| SEATPOST | TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm |
| SEAT CLAMP | Kona Clamp |
| GRIPS | Kona Key Grip |
| SADDLE | WTB Volt |
| FRONT HUB | Shimano 110x15mm (centerlock) |
| REAR HUB | Shimano 148x12mm (centerlock) |
| SPOKES | Stainless Black 14g |
| RIMS | WTB ST i30 TCS |
| FRONT TIRE | Maxxis Minion DHF EXO TR 3C 29x2.5" WT |
| REAR TIRE | Maxxis Dissector EXO TR 3C 29x2.4" WT |

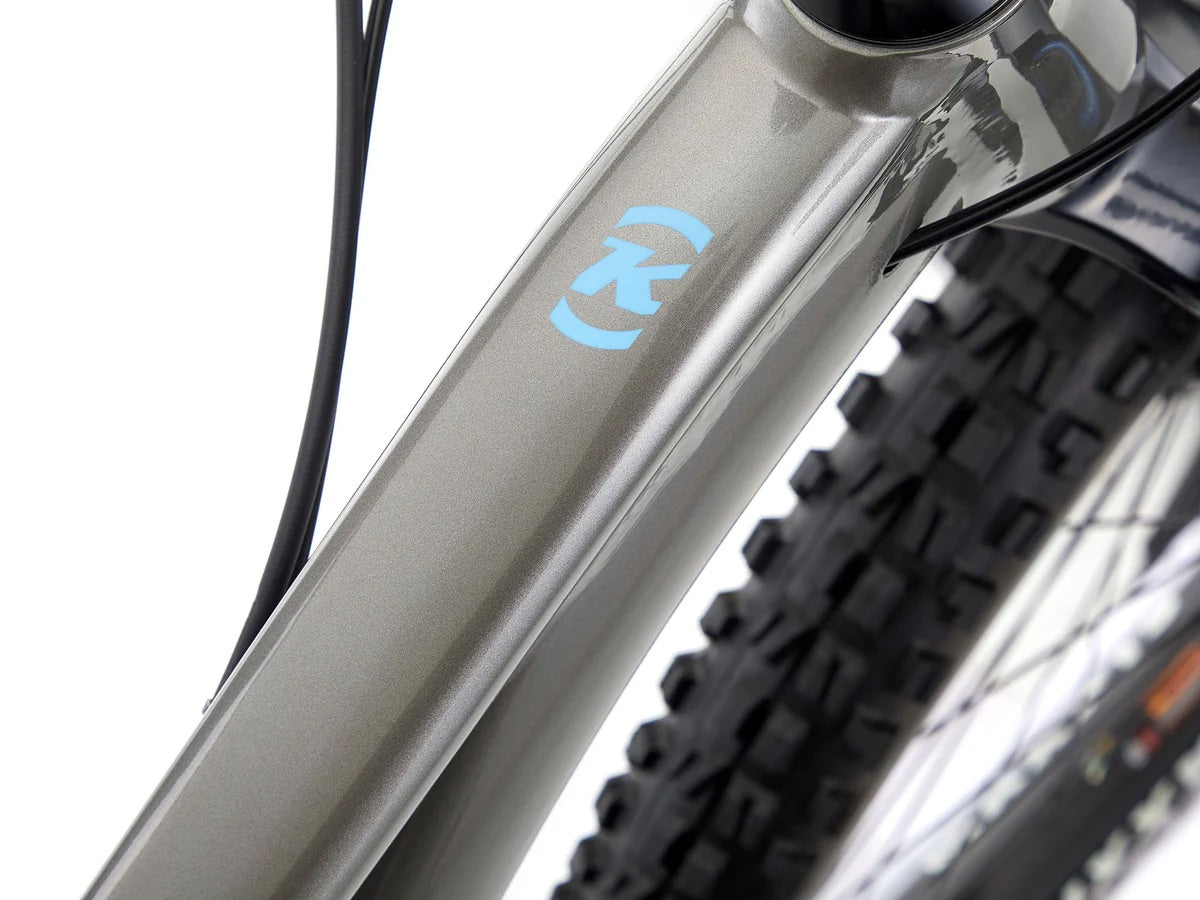

| PAINT COLOR | Gloss Metallic Grey w/ Charcoal & Cyan Decals |
| EXTRAS | n/a |
GEOMETRY
| SIZE | S | M | L | XL | |
| 1 | ST LENGTH | 379 | 379 | 419 | 449 |
| 2 | TT LENGTH | 582 | 609 | 636 | 668 |
| 3 | REACH | 430 | 455 | 480 | 510 |
| 4 | STACK | 631 | 640 | 649 | 658 |
| 5 | STANDOVER | 717 | 695 | 690 | 716 |
| 6 | HT ANGLE | 65.5 | 65. | 65.5 | 65.5 |
| 7 | HT LENGTH | 90 | 100 | 110 | 120 |
| 8 | ST ANGLE | 76.5 | 76.5 | 76.5 | 76.5 |
| 9 | CS LENGTH | 415 | 415 | 415 | 415 |
| 10 | BB DROP | 63 | 63 | 63 | 63 |
| 11 | BB HEIGHT | 312 | 312 | 312 | 312 |
| 12 | WHEELBASE | 1156 | 1185 | 1214 | 1248 |
| 13 | FRONT CENTER | 738 | 767 | 796 | 830 |
| 14 | FORK LENGTH | 551 | 551 | 551 | 551 |
| 15 | FORK OFFSET | 42 | 42 | 42 | 42 |
