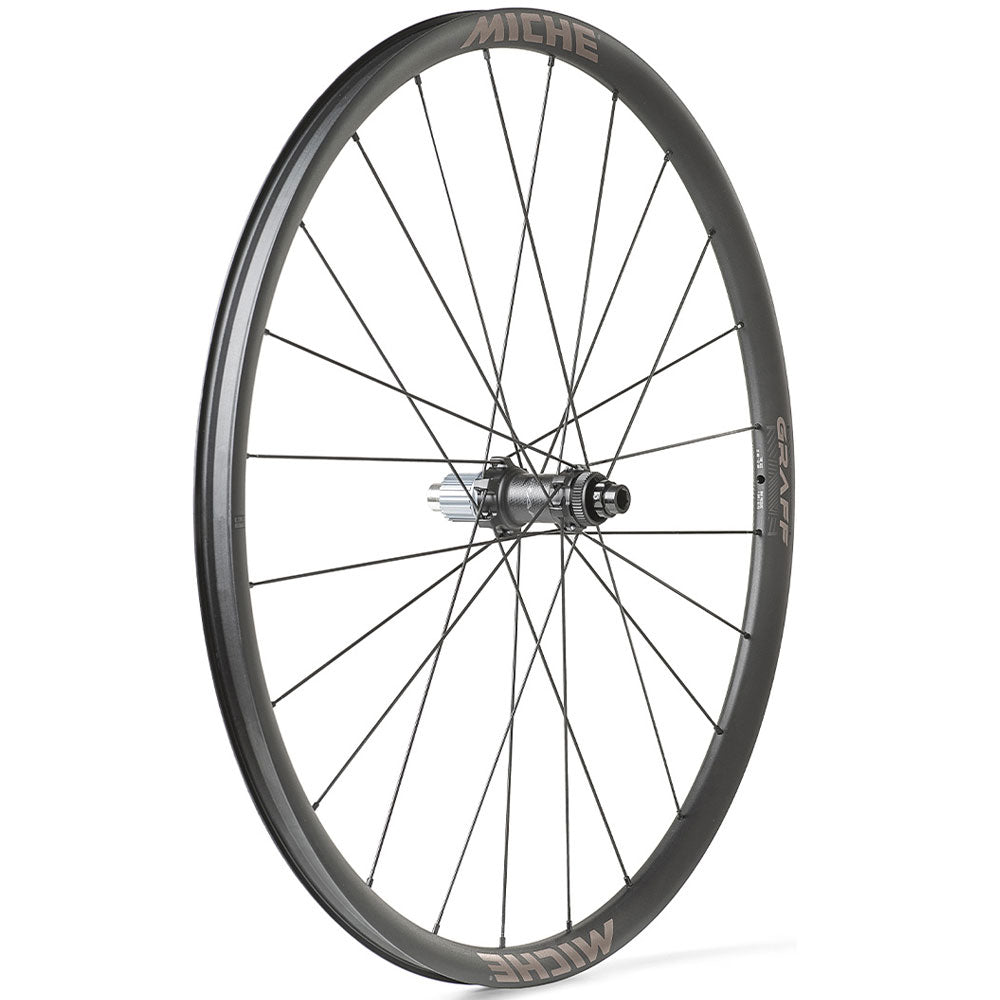

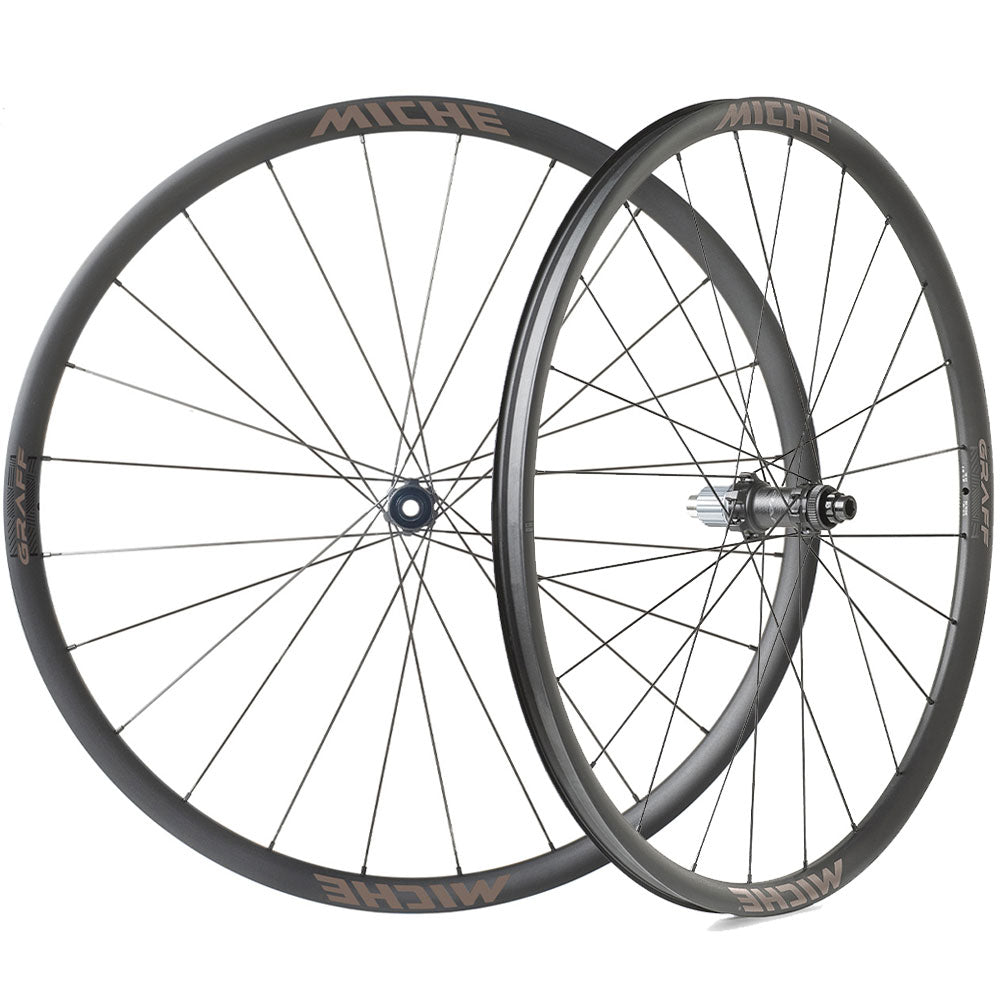

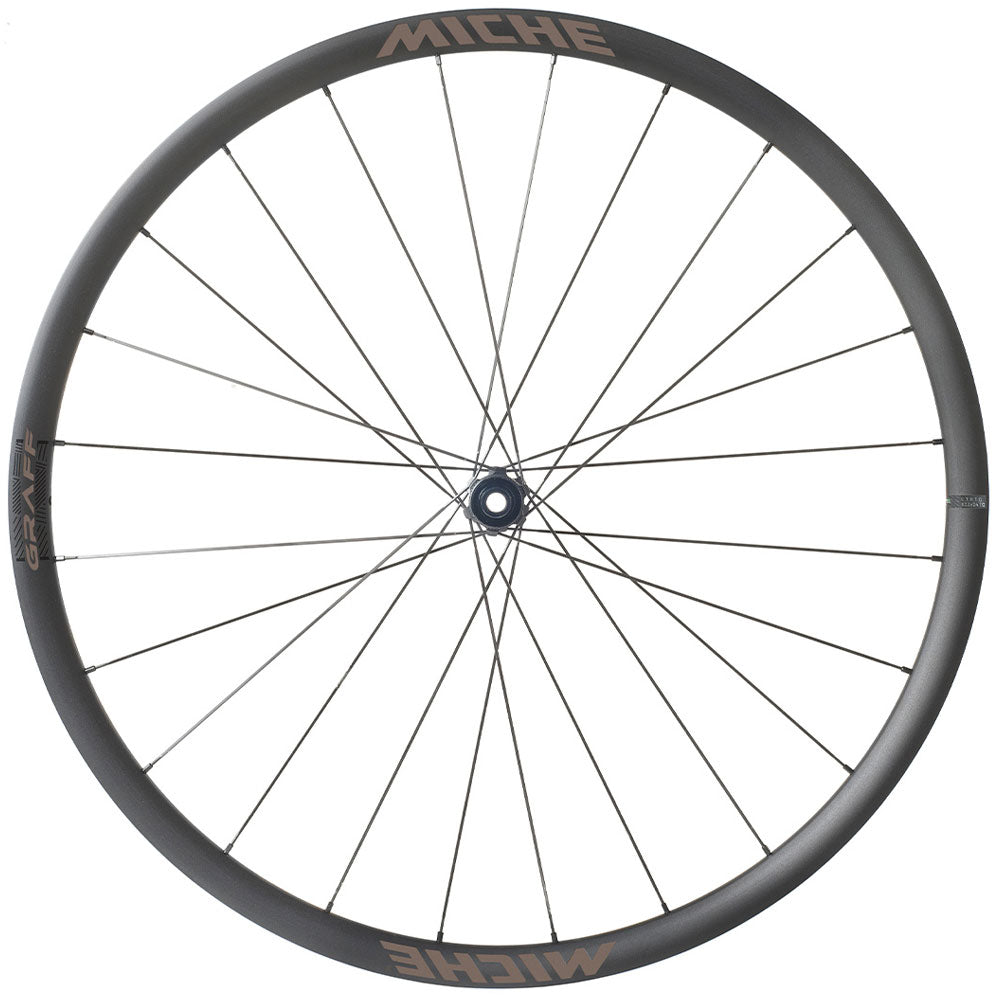

Miche Graff Tubeless Disc Wheels

Designed for gravel and adventure riders, this wheelset delivers durability, responsiveness, and tubeless-ready versatility.

The rim is Tubeless Ready, finished with a sandblasted surface and optimised for tyres between 35 mm and 50 mm, offering a perfect balance of grip, comfort, and control. It comes fitted with a pre-assembled tubeless kit, quality-checked by Miche for peace of mind.

At the heart of the wheel, CNC-machined AL7075 T6 hubs use a 12+12 spoke pattern and high-smoothness sealed bearings to deliver consistent, reliable performance. You can fine-tune hub smoothness—even with the wheel mounted—thanks to a special adjustment ring. For disc brake compatibility, use the original Shimano lock ring designed for thru axles with a 27 mm hole.

Technical Specifications

• Weight: 1735g (Tubeless Ready Kit + 20)
• Rim Material: Alloy
• Spokes: Stainless steel black, aero, straight pull, double butted
• Tyre Type: Clincher and Tubeless
• Braking System: Disc Centre Lock
• Rim profile: 25mm
• Max Load + user: 108kg
• Bearings: Miche Steel Sealed
• Included accessories: Instruction manual, Flap (only for lcincher version)

Tubeless-Ready Asymmetric Rim

The Graff XL Disc features a 24C asymmetric rim profile that’s Tubeless Ready and finished with a durable sandblasted surface. It’s optimised for tyres between 35 mm and 50 mm, offering excellent grip, comfort, and control across gravel, dirt, and mixed terrain. The asymmetric design improves spoke tension balance, enhancing overall wheel strength and stability.

CNC-Machined Hubs with Sealed Bearings

Crafted from lightweight yet strong AL7075 T6 alloy, the hubs are CNC-machined for precision and durability. They use a 12+12 spoke pattern for even load distribution and improved torsional rigidity, giving riders a more responsive feel. High-smoothness sealed bearings ensure consistent performance, while a special ring nut allows easy hub adjustment-even with the wheel mounted.
