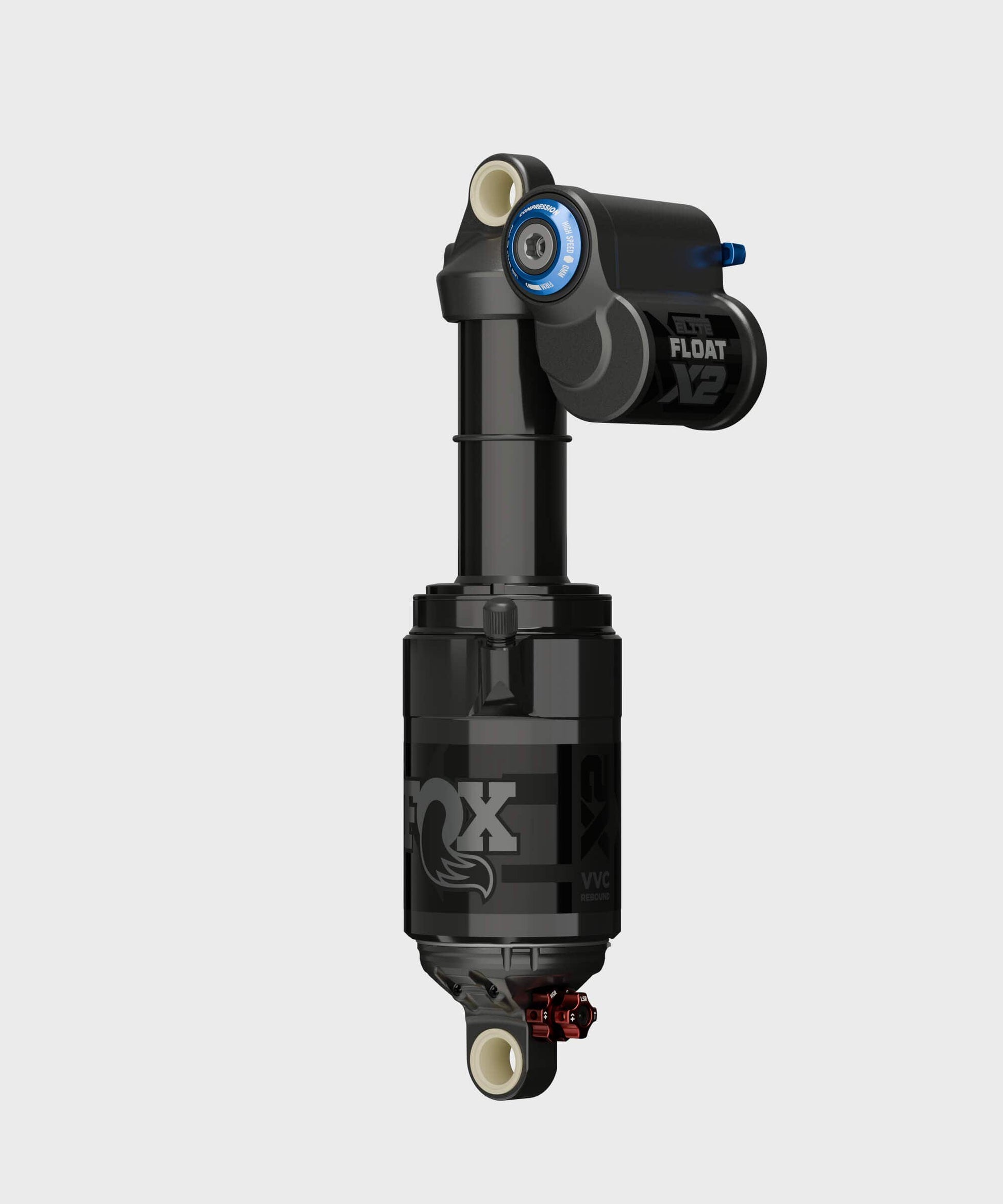

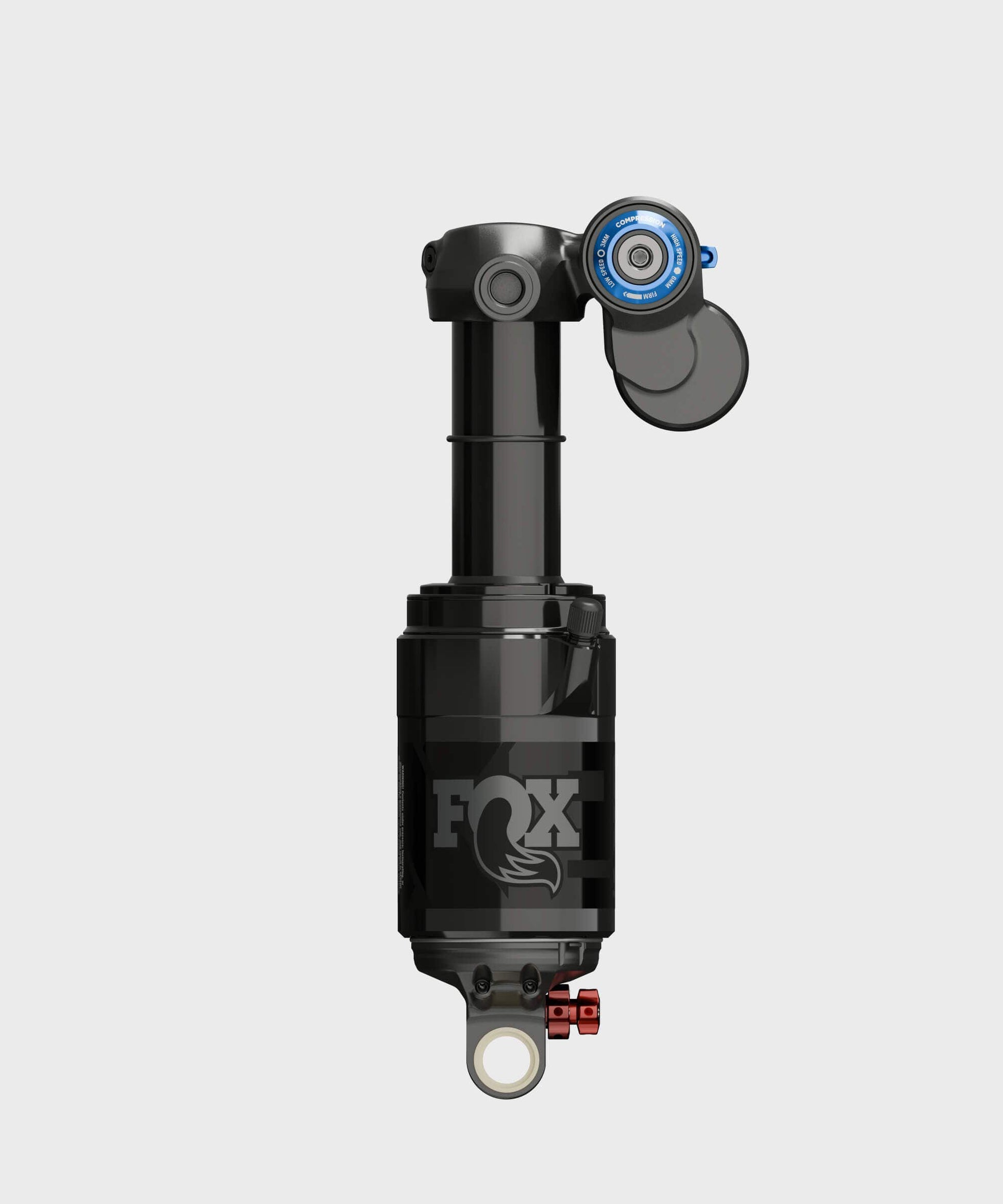

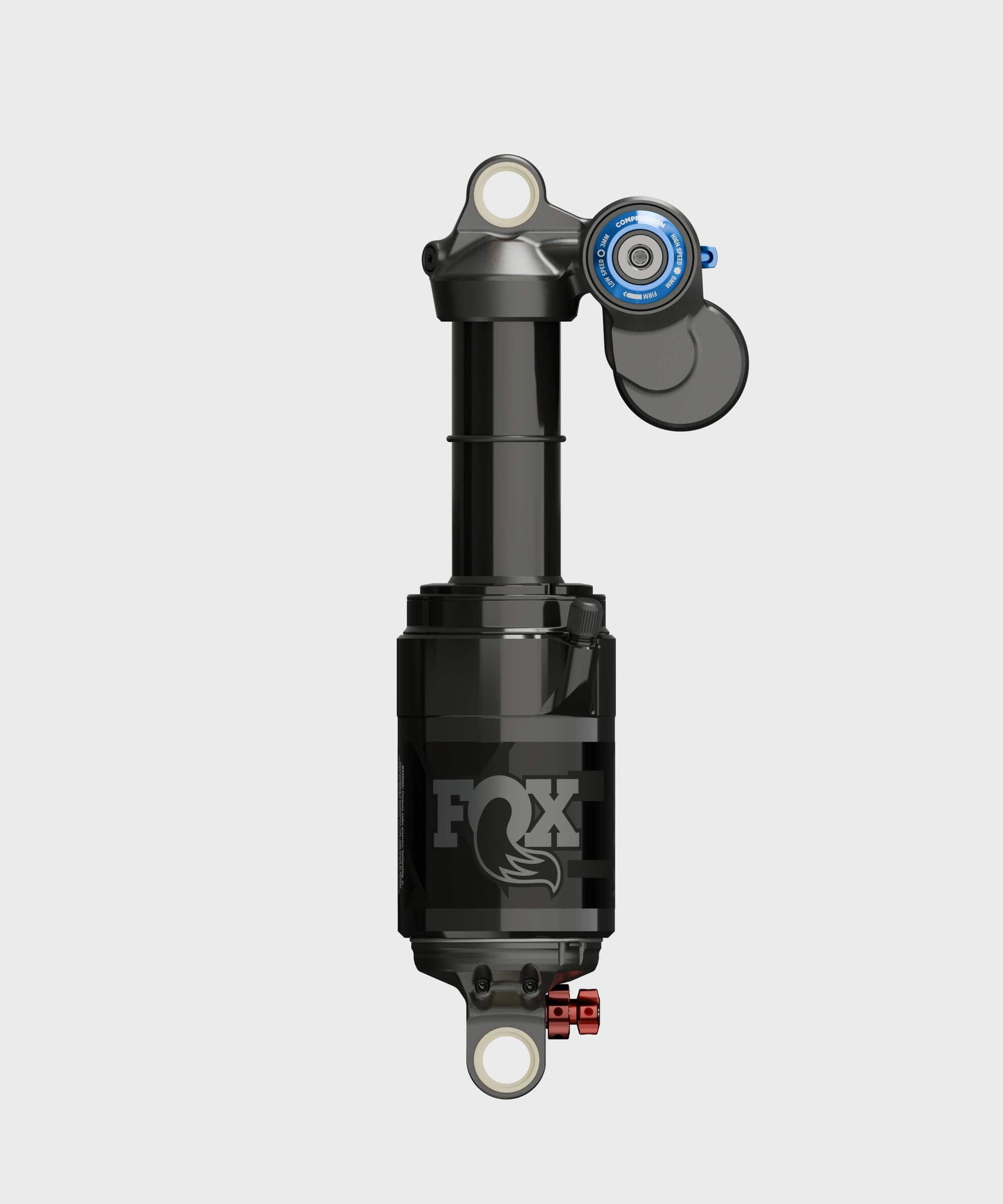

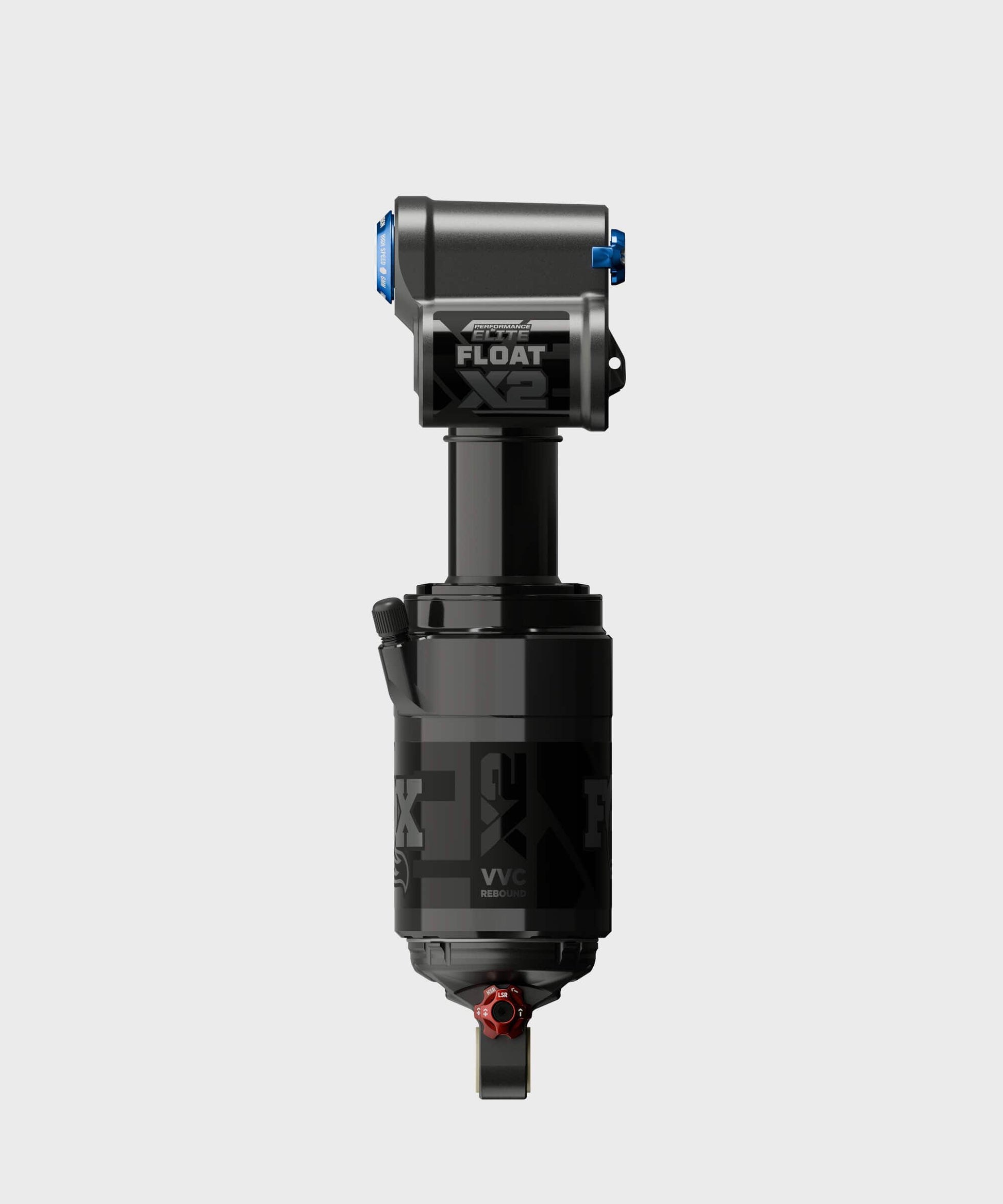

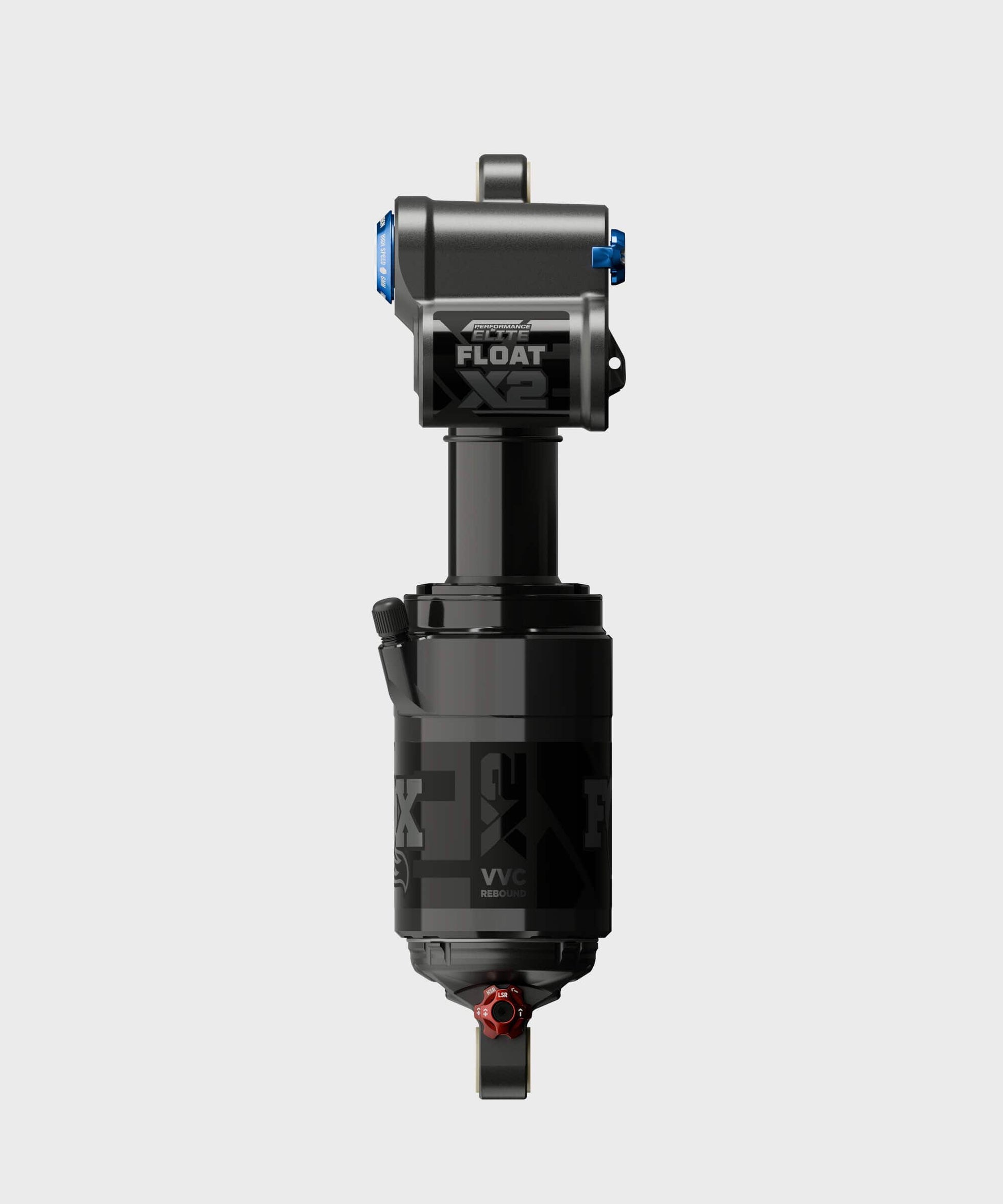

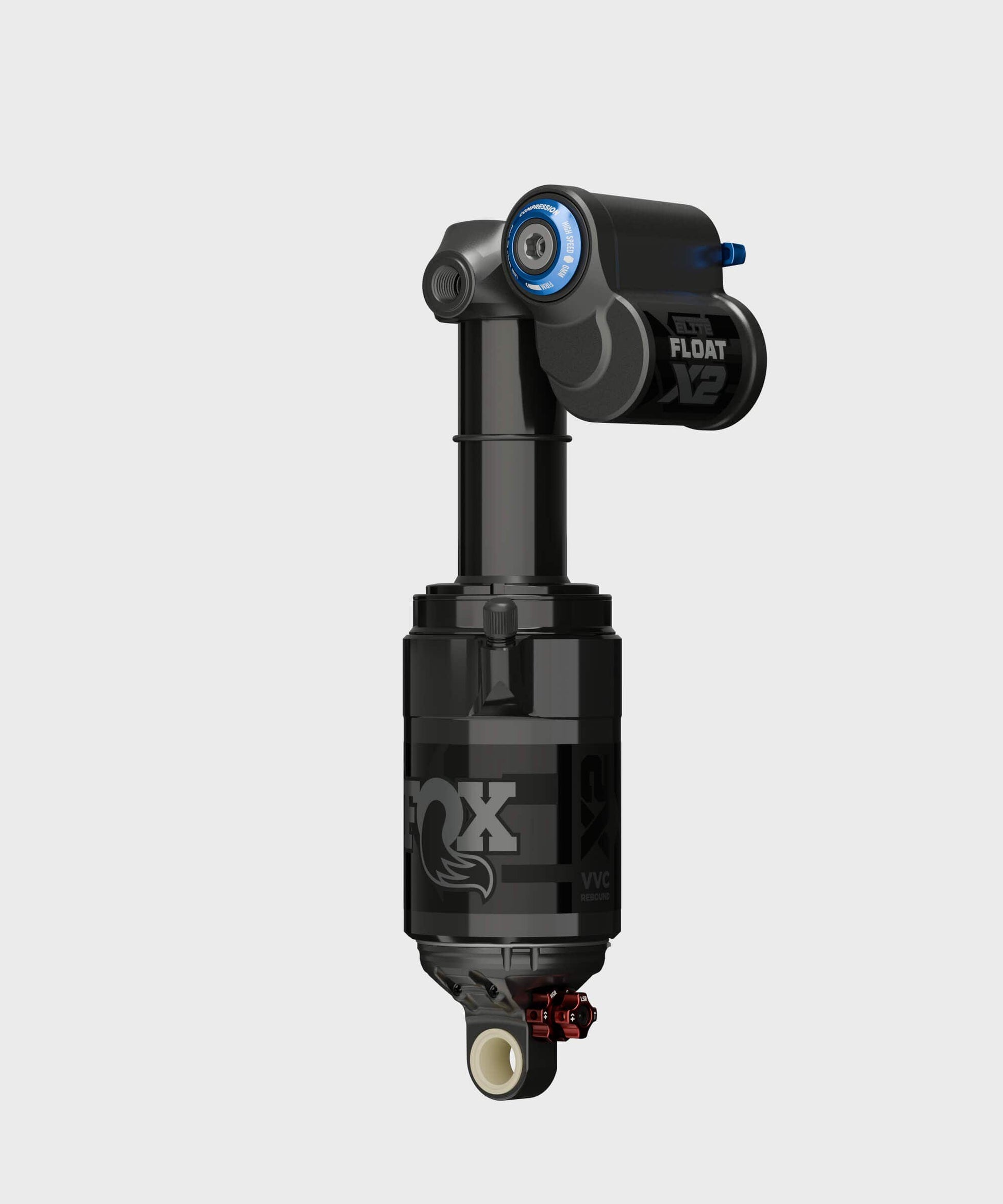

FOX Float X2 Performance Elite 2Pos-Adj Shock 2

FLOAT X2: The Definitive Gravity Air Shock

The FLOAT X2 sets a new benchmark in gravity air shocks with an all-new monotube design pressure balancing and increased tuning capability. The result is improved shock response more usable tuning range and greater durability —ideal for riders who demand the highest level of performance. We closed the gap to the award winning Grip X2 fork dampers giving you more traction more support and more control.

Key Innovations:

• World’s First 4-Way Adjustable Monotube – A revolutionary design that enhances durability and allows full pressure balancing for better shock response and reliability.


• Pressure Balancing – Reduces flow paths that cause cavitation and oil aeration leading to increased damping consistency and better traction.


• Larger Base Valve & Multi-Valve System – Provides enhanced traction support and reduced rider fatigue mirroring the proven performance of FOX’s GRIP X2 damper.


• Upgraded Main Shaft Diameter – Now 12.7mm (1/2") for increased strength and durability over the previous 9.5mm design.


• 4-Way Adjustability – Independent High-Speed and Low-Speed Compression and Rebound tuning for precise ride feel.


• Trophy Truck-Inspired Ride Quality – Keeps the chassis composed while maintaining maximum traction just like Fox-equipped off-road race vehicles.


• Close the Performance Gap – The oversized air chamber and reduced friction air seal package creates a more linear planted ride feel that gravity riders demand without excess weight.

FLOAT X2 Tech Specs:

• Sizes (Eyelet Mount): 210x50 210x52.5 210x55 230x60 230x62.5 230x65 250x75


• Sizes (Trunnion Mount): 185x55 205x60 205x65 225x75


• Adjustability: High/Low-Speed Compression & High/Low-Speed Rebound


• Max Air Spring Pressure: 350 psi


• Air Volume Spacers: 1cc increments


• Starting Weight: 720g (210x55)
