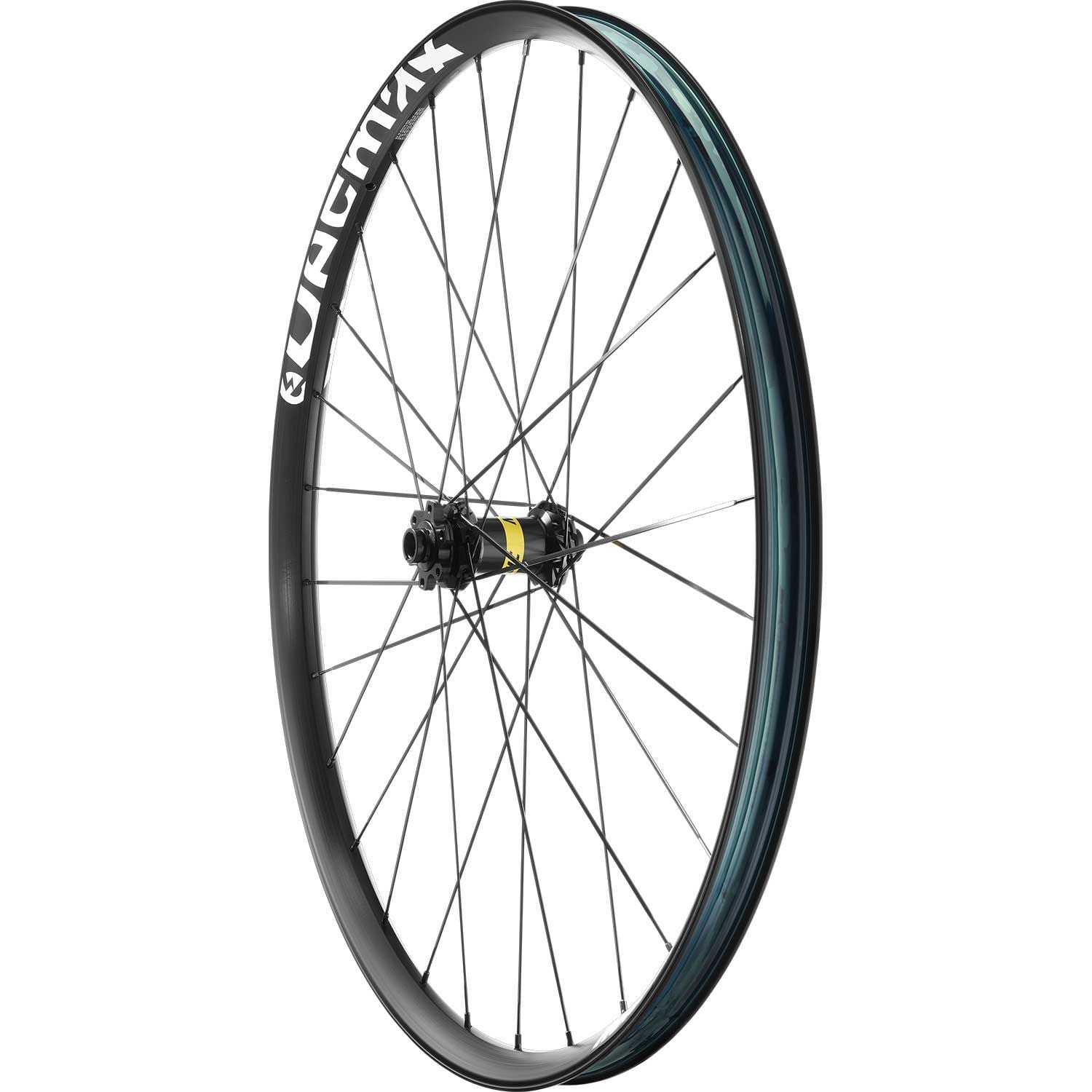

Mavic E-Deemax 27.5 6 Bolt Disc

The name E-Deemax has become a reference for E-Bike riders this new E-Deemax 30 lives up to its name with many of the same features and technologies as a higher range model but at a far more attainable price. Now featuring a wider central channel installing even the strongest and most rigid tyres has never been so easy. Mavics exclusive Pinch Flat Protection technology (PFP) offers a wider contact surface at the top of sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP the tyre can resist to 20% harder impact before being cut.

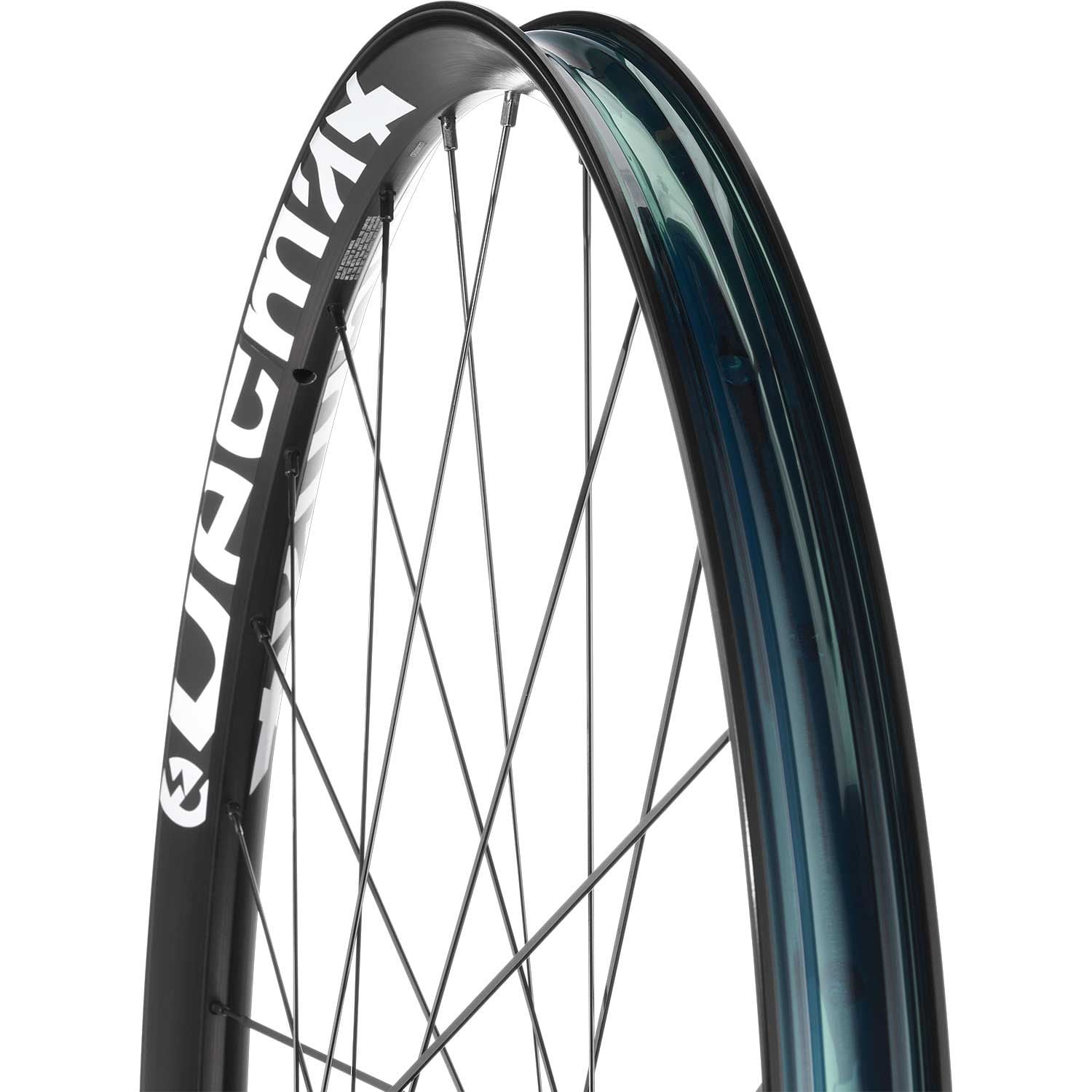

The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tire pressure for better traction and control.

As all our E-Deemax wheelsets this new option is lab and field validated for a max total weight of 180Kg.

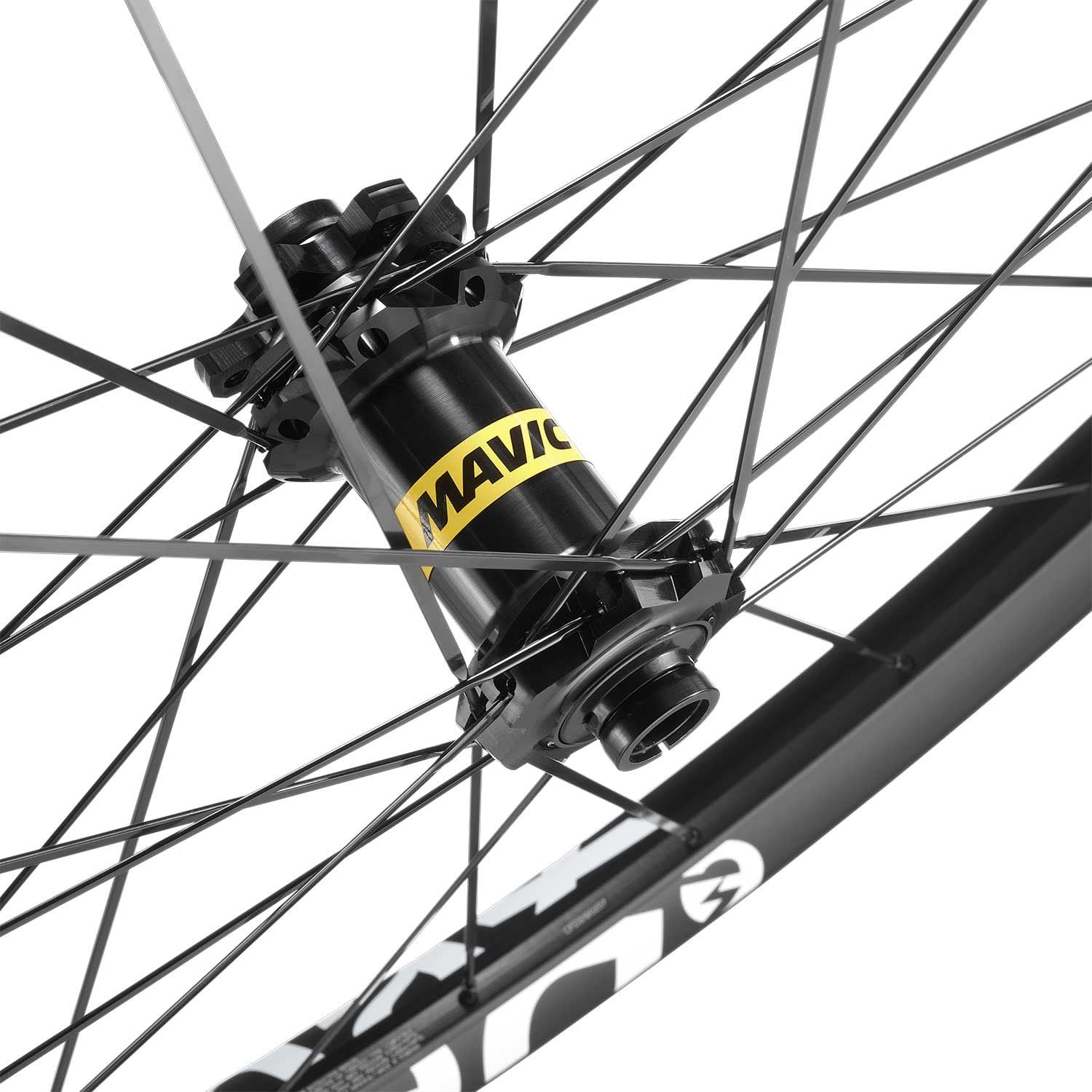

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.

The rear hub is compatible with Shimano HG9 Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves replacement spokes and accessories.

Maxtal Aluminium Alloy

Exclusive to Mavic. this specific aluminium alloy offers a higher strength to weight ratio than tradition 6106 alloy

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction while a wide array of end caps makes it super versatile.

UST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction control and comfort whilst reducing inertia and flats.

SUP Welding technology

Soude Usine Process stronger and smoother joint. After bending the rim joint is arc welded. The welded seam is then milled for a smooth finish.

QRM Auto Bearing Preload Technology

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Technical Specifications:

• Profile depth: 22mm
• Inner width: 30mm
• Front axle: 15x110mm
• Discipline: Downhill
• Spokes: Straight Pull Flat.
• Rim Diameter: 27.5
• Nipples: Steel ABS Black
• Rim material: Maxtal
• Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape
• Maximum weight: 180kg including bike
• Braking system: 6 Bolt
• Bearings: QRM automatic setting sealed cartridge
• ETRTO Size: 584x30TC
• Weight: 2160g

Whats in the Box?

• Front Wheel
• Rim tape mounted on wheel
• UST valve not mounted on wheel
• 2 replacement spokes with wheel
• Multifonction adjustment wrench with the rear wheel

Intended Use

• Minimum tyre size: width 52mm - pressure max. 2.95Bar/43PSI
• Maximum tyre size: width 76mm - pressure max. 2.45Bar/36PSI
• ASTM category 5 : gravity riding focused on the descent
