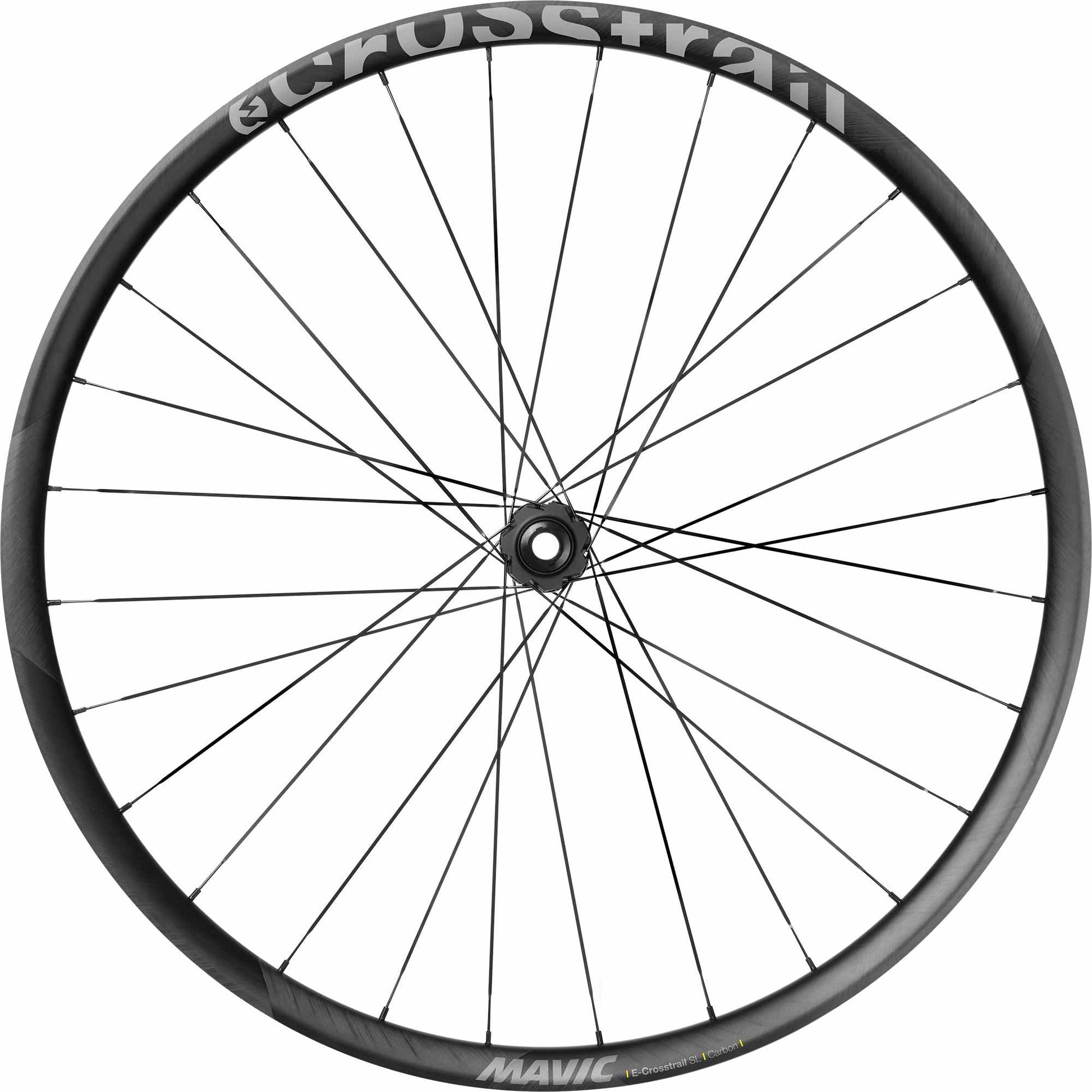

Mavic E-Crosstrail SL Carbon 29 Disc Centre Lock

Super dynamic and strong wheels to transform your light E-Mountain Bike into a trail rocket.

Improved acceleration and control, lower battery consumption

• Light but strong carbon rim reduces inertia
• Light spokes improves vertical compliance and control
• New Infinity hub with 28 spokes keeps lateral stiffness high

Purpose-built for off-road E-bikes

• Wider 30mm (internal) rim adds stiffness and cornering precision
• Engineered for the added torque of E-bike motors with 28 threaded three-cross spokes that further boost lateral stiffness

Low maintenance and easy to use

• Ultra-reliable and low maintenance ID360 freewheel system
• Userfriendly tubeless system eases tyre mounting
• Delivered with spare spokes, reparable for over 5 years

Weight 1725g

Understanding the different Mavic freehub body acronyms:

• HG or M11 – Shimano HG Road 11/12x (other speeds with spacer)
• MS - Shimano Microspline
• XD - SRAM XD
• XD-R - SRAM XD-R
• ED11 - Campagnolo 9/12x
• N3W - Campagnolo 13x

ADDITIONAL INFORMATION

Designed to transform your electric mountain bike into a trail rocket, the E-Crosstrail SL Carbon 29 wheels rely on a dynamic design and exceptional strength to deliver a unique riding experience, while reducing battery consumption. Magic from Mavic.

Thanks to lightweight carbon rims that make no concessions to strength, the E-Crosstrail SL Carbon 29 considerably reduce inertia for better acceleration and increased control. The steel spokes, designed by our teams at the foot of the French Alps, are also lighter, improving vertical compliance and control for greater confidence on uneven terrain. Finally, the new Infinity hub with 28 steel spokes maintains high lateral stiffness for optimal stability when cornering. Youll love dancing on the trails.

Designed to handle the high torque of e-bike motors, this robust, high-performance wheel is fitted with a wide 30mm rim (internal), which adds extra rigidity and precision when cornering, allowing you to negotiate corners with absolute confidence.

Like all Mavic wheels, the E-Crosstrail SL Carbon 29 has been designed with durability and repairability at the top of our priorities, with an ultra-reliable ID360 freewheel and tubeless system for easy tire mounting, all to save time and energy when servicing your wheels. For extra peace of mind, the E-Crosstrail SL Carbon 29 wheels come with two spare spokes per wheel, so you can go out and make trouble without having to start all over again in the workshop.

The E-Crosstrail SL Carbon 29 wheels are an unrivaled choice for optimizing the performance of your electric mountain bike, with dynamic handling and unfailing robustness. Science moves forward, and so do your wheels.

Instant Drive 360 technology

Super light and efficient. The large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

UST tubeless technology

Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.

Infinity hub design

Efficient power transfer thanks to optimised non-contact spoke lacing (no noise under load) and tension distribution. The length of the spokes at the front and rear is identical. Maintenance is easy thanks to a tool-free solution.

QRM Auto Bearing Preload Technology

Qualite de Roulements Mavic Auto. Cartridge bearings double sealed with e3 internal clearance. Preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Technical Specifications:

• Profile depth: 25mm
• Inner width: 30mm
• Front Boost 15 x 110mm
• Rear axle: 12x148mm
• Freehub Type: Shimano MS or XD option
• Discipline: Downhill
• Spokes: Straight Pull, Flat
• Rim Diameter: 29
• Nipples: Seel, Black
• Rim material: Maxtal
• Tyre compatibility: UST Tubeless Ready Use with Mavic Tubeless Tape
• Maximum weight: 150kg including bike
• Braking system: Centre Lock or 6 Bolt Option
• Bearings: QRM automatic setting sealed cartridge
• ETRTO Size: 622x30TSS
• Weight: 1725g
