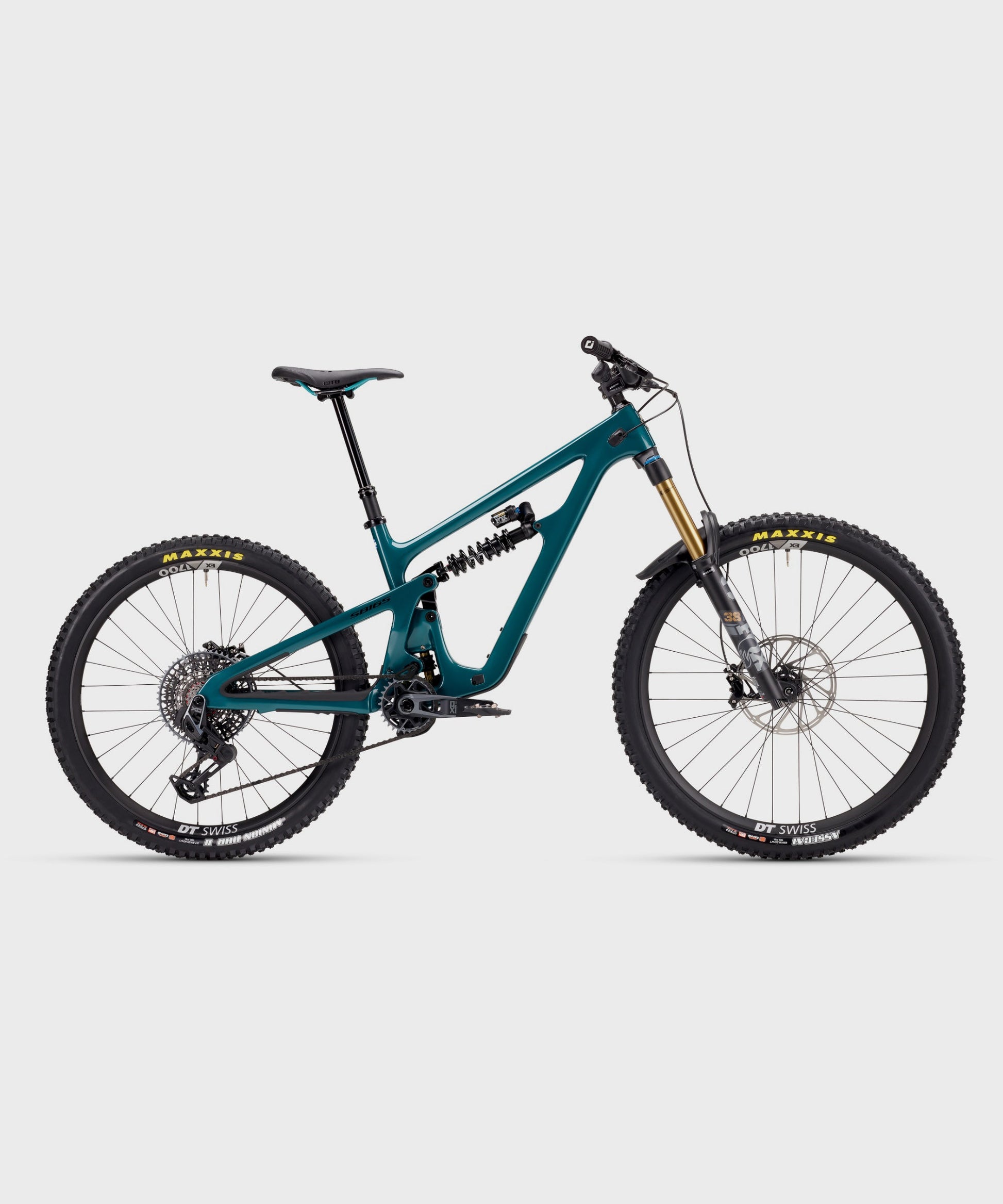

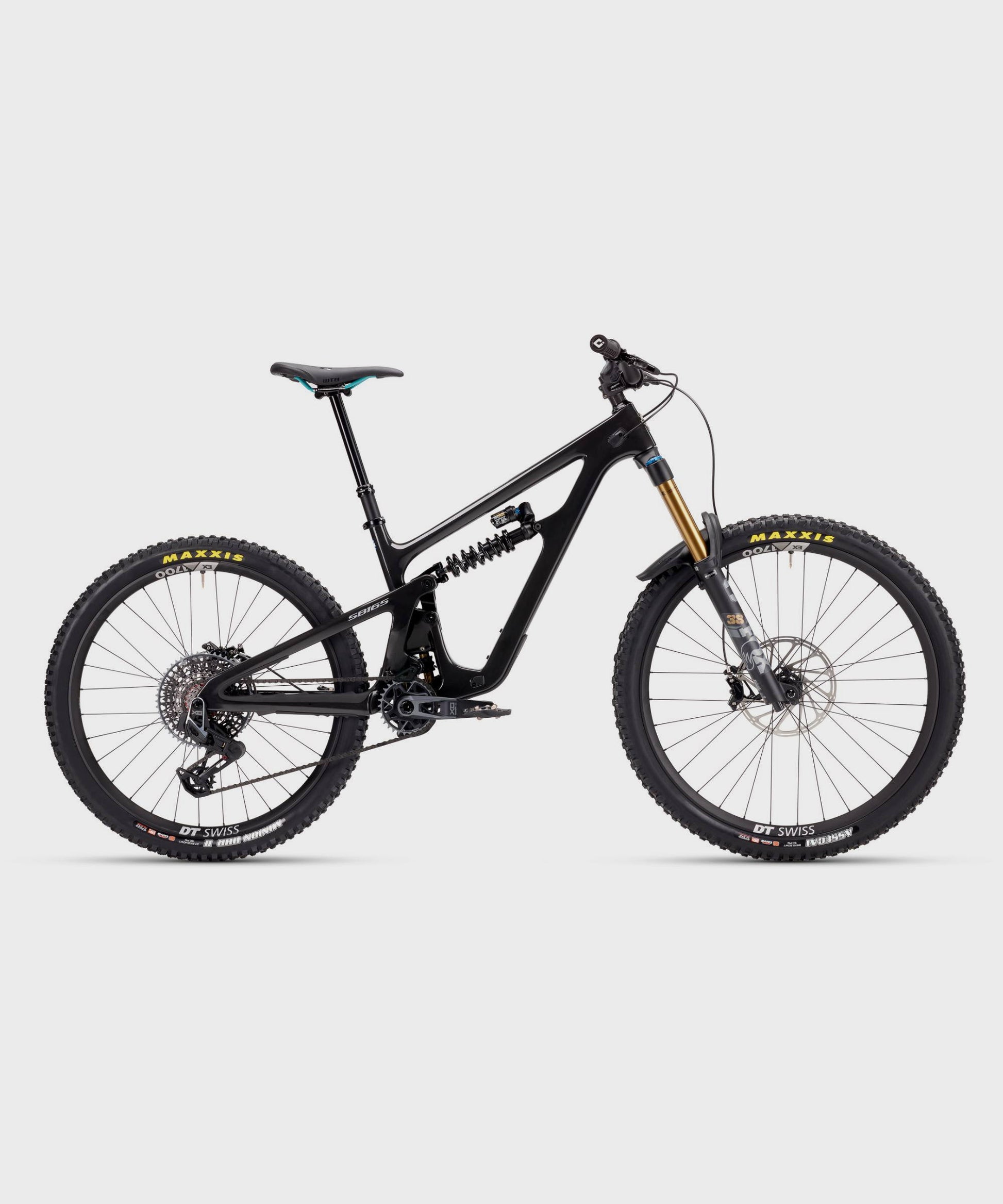

SB165
We said it already knows. And now it knows better. Proven worthy time and again at Rampage reconfigured to fit the bill as Zero-Hesitation Go-To for whatever your pleasure. Un-rack it for all the park laps pedal it on character-building epics push it up spooky steep darksides “nobody” knows about. Whatever the question unhard your decisions. YOU ASK. IT GIVES..
165MM
FRAME TRAVEL
170MM
FORK TRAVEL
29"
FRONT WHEEL SIZE
27.5"
REAR WHEEL SIZE
63.5°
HEAD TUBE ANGLE
76.9°
EFF. SEAT ANGLE
HIGHLIGHTS
- Fox Factory 38 Grip 2 and Fox Factory DHX2 shock
- Fox Transfer dropper post
- MX DT Swiss EX1700 custom wheelset
- 4 piston brakes
- ODI Elite Pro grips
- 220mm front and 200mm rear rotors
- Maxxis Assegai 2.5 and DHR II 2.4 EXO+ tyres
- SLS Coil Spring on frame only
FRAME HIGHLIGHTS
- 63.5-degree head tube angle
- 76.9-degree seat tube angle
- 165mm rear travel paired with a 170mm fork
- Sizes: SM-XL
- Threaded bottom bracket
- High-clearance downtube
- Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Compact-wishbone shock extender
- Boost spacing
YOU ASK. IT GIVES.
SIZE GUIDE
| SMALL | 5'1" - 5'7" | |||
| MEDIUM | 5'5" - 5'11" | |||
| LARGE | 5'10" - 6'3" | |||
| X-LARGE | 6'1" - 6'7" |
SPECIFICATION
TURQ Series carbon fibre frame threaded bottom bracket fully enclosed internal cable routing 148mm x 12mm BOOST dropouts integrated derailleur hanger and axle.
| FORK | FOX FACTORY 38 GRIP X2 / 170MM |
| SHOCK | FOX FACTORY DHX2 2 POS LEVER (SM:400 MD:450 LG:500 XL:550 STEEL) |
| TYRE (F) | MAXXIS ASSEGAI 2.5 EXO+ |
| TYRE (R) | MAXXIS MINION DHR II 2.4 DD |
| ROTOR (F) | SRAM CENTERLINE 200 |
| ROTOR (R) | SRAM CENTERLINE 200 |
| HEADSET | CANE CREEK 40 INTEGRATED |
| WHEELSET | DT SWISS CUSTOM EX1700 30MM |
| BB | SRAM DUB BSA73 |
| GRIPS | ODI ELITE PRO |
| BAR | YETI CARBON 35X800MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| CRANK | SRAM X0 EAGLE TRANSMISSION 30T 170MM |
| SADDLE | SILVERADO CUSTOM |
| BRAKES | SRAM CODE RSC |
| DERAILLEUR | SRAM X0 EAGLE AXS TRANSMISSION |
| CASSETTE | SRAM X0 EAGLE TRANSMISSION 10-52 |
| CHAIN | SRAM X0 EAGLE TRANSMISSION FLATTOP |
| SHIFTER | SRAM AXS POD CONTROLLER |
| SEATPOST | FOX TRANSFER 31.6MM / 175MM |
| BASHGUARD | MRP AMG SL BASH GUIDE |
Please note: Specifications are subject to change without notice.
GEOMETRY
All measurements are shown in millimetres.
| 180MM FORK | SM | MD | LG | XL | |
| A | SEAT TUBE LENGTH | 365 | 400 | 440 | 470 |
| B | EFF. TOP TUBE LENGTH | 573 | 604 | 625 | 653 |
| C | HEAD TUBE ANGLE | 63.5 | 63.5 | 63.5 | 63.5 |
| D | EFF. SEAT TUBE ANGLE | 76.8 | 76.9 | 76.9 | 76.9 |
| E | CHAINSTAY LENGTH | 433 | 435 | 437 | 439 |
| F | WHEELBASE | 1207 | 1242 | 1266 | 1298 |
| G | ESTIMATED BB HEIGHT | 345 | 345 | 345 | 345 |
| H | STANDOVER | 730 | 738 | 744 | 750 |
| I | HEADTUBE LENGTH | 95 | 101 | 107 | 118 |
| J | FORK (AXLE TO CROWN) | 588 | 588 | 588 | 588 |
| K | FORK (OFFSET) | 44 | 44 | 44 | 44 |
| L | STACK | 620 | 625 | 630 | 640 |
| M | REACH | 430 | 460 | 480 | 505 |
| N | FRONT CENTER | 774 | 807 | 829 | 859 |
| O | VERTICAL FORK TRAVEL | 152 | 152 | 152 | 152 |
