Yeti Cycles

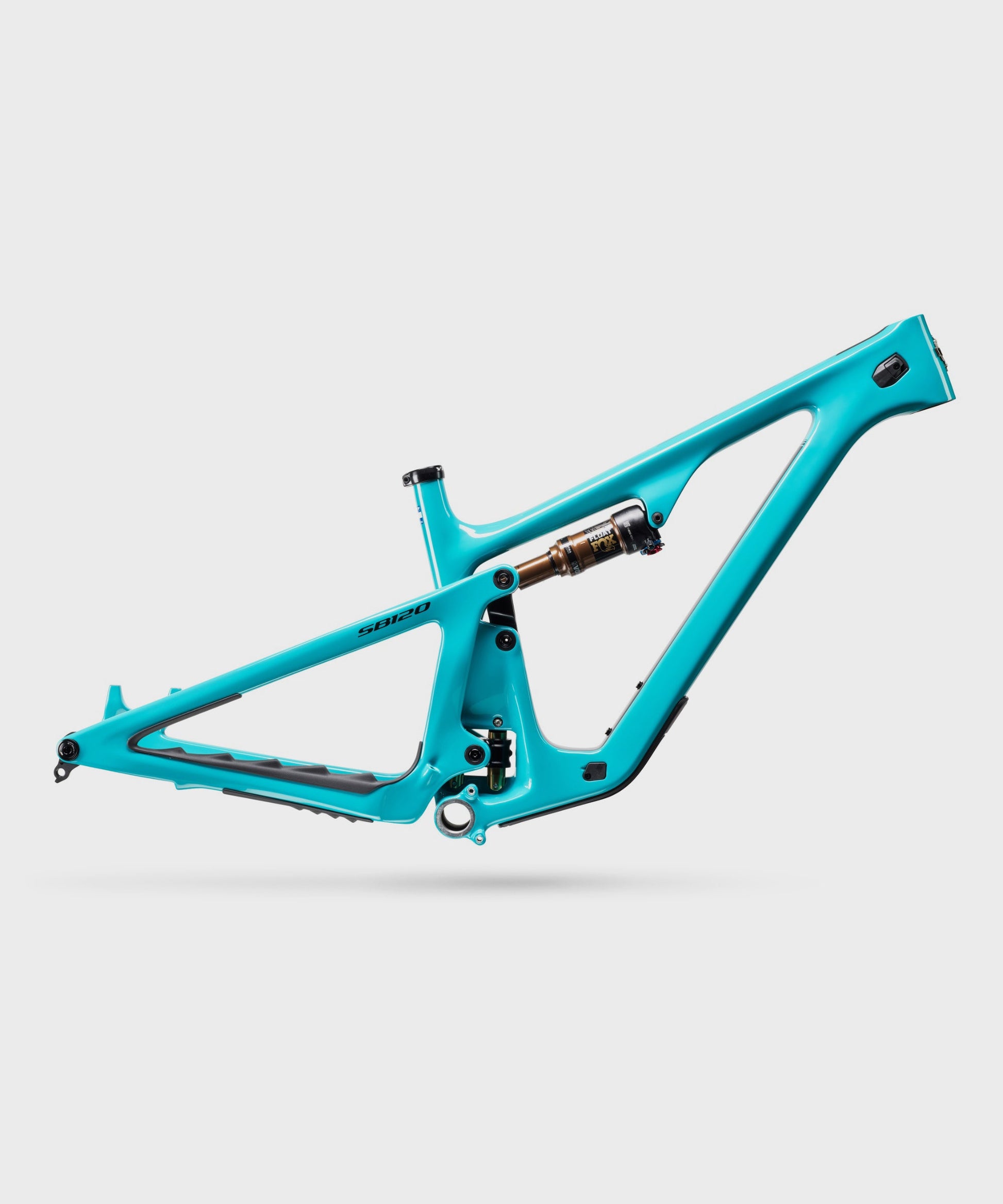

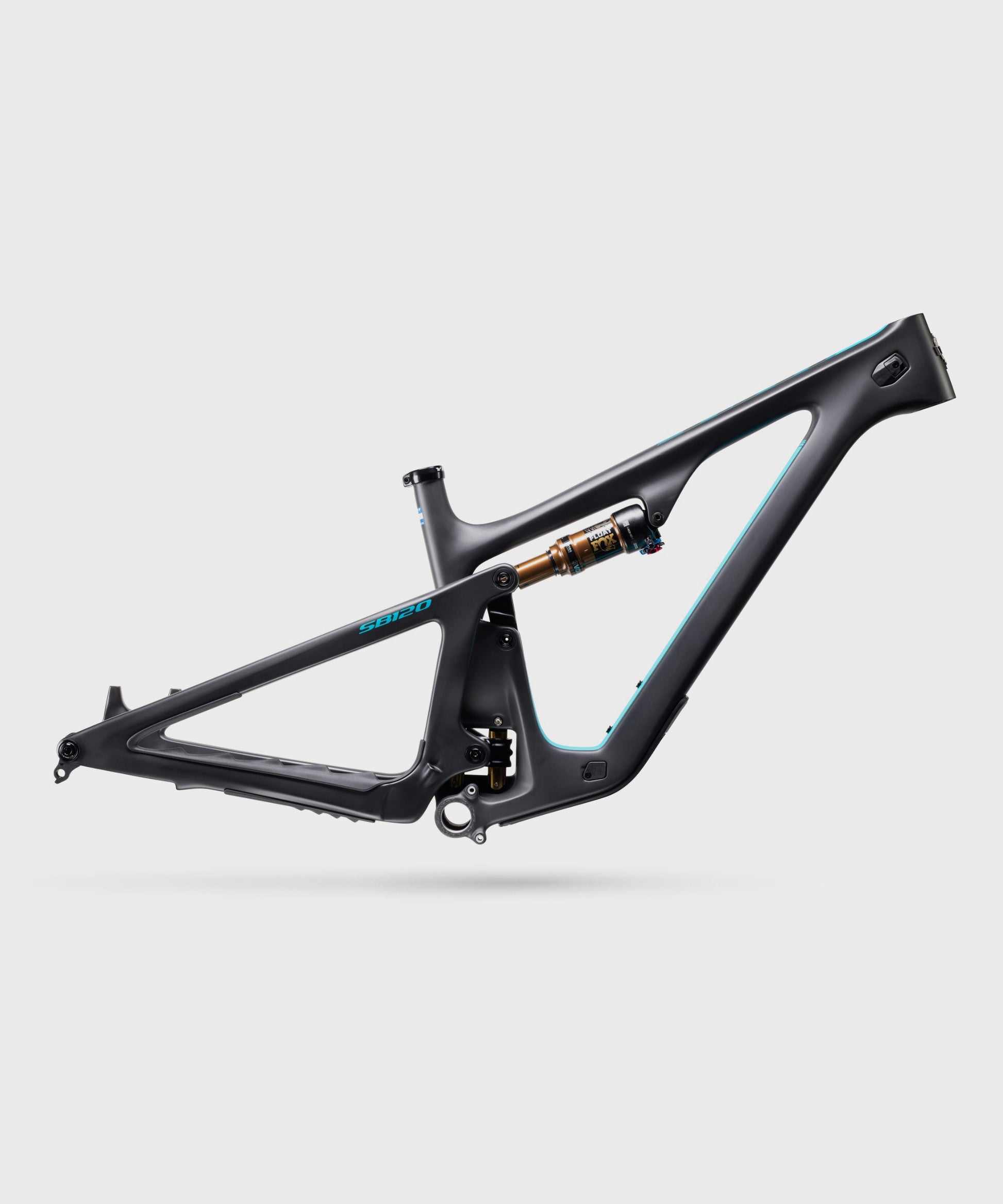

Yeti Cycles SB120 T-Series 29

Yeti Cycles SB120 T-Series 29

ID: YCF26120TLGPLNFA0000000

Size
Colour
£4,299.00
£4,299.00
Sold out
Taxes included.
Estimated dispatch:2-5 working days
View full details
  • DESCRIPTION
  • DELIVERY
  • REVIEWS
  • ASK A QUESTION
DESCRIPTION
{{widget type="Magento\Cms\Block\Widget\Block" template="widget/static_block/default.phtml" block_id="136" type_name="CMS Static Block"}}

SB120

Forget the numbers. Mute the speculation. Let the other guys invent cute alternatives for "Cross Country". Steer clear of pigeon holes and limiting beliefs. Strap on your blinders and go get lost. Then decide what the sb120 means to you. And you alone. Definition ready.


120MM


FRAME TRAVEL





11%


LEVERAGE RATE





29"


WHEEL SIZE





66.5°


HEAD TUBE ANGLE





76.5°


EFF. SEAT ANGLE


FRAME HIGHLIGHTS



  • NEW short travel trail frame platform

  • NEW Switch Infinity assembly on T-Series

  • NEW Threaded bottom bracket

  • NEW High-clearance downtube

  • NEW Dual-density downtube protection

  • Universal Derailleur Hanger (UDH)

  • Secure fully enclosed internal cable management

  • Compatible with long dropper posts

  • 100% standard sealed Enduro Max bearings

  • Floating collet axle pivot design

  • Ultra-compact shock extender

  • Boost spacing

  • Sizes XS-XXL

TRAIL. CHECK MATE.

Crushing souls on the descent is more than half the fun. And a hell of a lot more than half the point. The SB120 is wicked quick in your direction of choice.

SIZE GUIDE




























































X-SMALL 4'10" - 5'3"
SMALL 5'1" - 5'7"
MEDIUM 5'5" - 5'11"
LARGE 5'10" - 6'3"
X-LARGE 6'1" - 6'7"
XX-LARGE 6'5" - 6'11"


SPECIFICATION



T / Series carbon fibre frame 148mm x 12mm BOOST dropouts integrated derailleur hanger and axle.

.































































































FORK FOX PODIUM FACTORY 38 170MM
SHOCK FOX FACTORY FLOAT X2
TYRE (F) SCHWALBE MAGIC MARY TRAIL PRO 2.5 RADIAL ULTRA SOFT
TYRE (R) SCHWALBE ALBERT GRAVITY PRO 2.5 RADIAL SOFT
ROTOR (F) SRAM HS2 200
ROTOR (R) SRAM HS2 200
HEADSET CANE CREEK 40
WHEELSET DT SWISS HXC1700 30MM
GRIPS ODI ELITE PRO
BAR YETI CARBON BAR 35X800MM
STEM BURGTEC ENDURO MK3 35X50MM
CRANK SRAM XX 165MM
SEAT WTB SOLANO CHOMOLY
BRAKES SRAM MAVEN ULTIMATE
DERAILLEUR SRAM XX EAGLE AXS TRANSMISSION
CASSETTE SRAM XX EAGLE TRANSMISSION 10-52
CHAIN SRAM XX EAGLE TRANSMISSION FLATTOP
SHIFTER SRAM AXS POD CONTROLLER
SEATPOST SRAM REVERB AXS 31.6MM / SM: 150MM MD: 175MM L/XL: 200MM
DRIVE UNIT BOSCH PERFORMANCE LINE CX RACE BDU38
BATTERY BOSCH POWERTUBE 800WH
ASSIST SWITCH BOSCH WIRELESS MINI REMOTE
CHARGER BOSCH 4A CHARGER



Please note: Specifications are subject to change without notice.

GEOMETRY



All measurements are shown in millimetres.























































































































































170MM FORK SM MD LG XL
A SEAT TUBE LENGTH 390 420 440 460
B EFF. TOP TUBE LENGTH 566 598 620 647
C HEAD TUBE ANGLE 64.0 64.0 64.0 64.0
D EFF. SEAT TUBE ANGLE 78 78 78 78
E ACTUAL SEATTUBE ANGLE 72.0 72.1 72.2 72.3
F CHAINSTAY LENGTH 449 449 449 449
G WHEELBASE 1223 1257 1282 1312
H ESTIMATED BB HEIGHT 350 350 350 350
I STANDOVER 754 765 765 765
J HEAD TUBE LENGTH 93 100 111 122
K FORK (AXLE TO CROWN) 588 588 588 588
L FORK (OFFSET) 44 44 44 44
M STACK 618 625 635 645
N REACH 435 465 485 510
O FRONT CENTER 774 808 833 863
P VERTICAL FORK TRAVEL 153 153 153 153
