Yeti Cycles

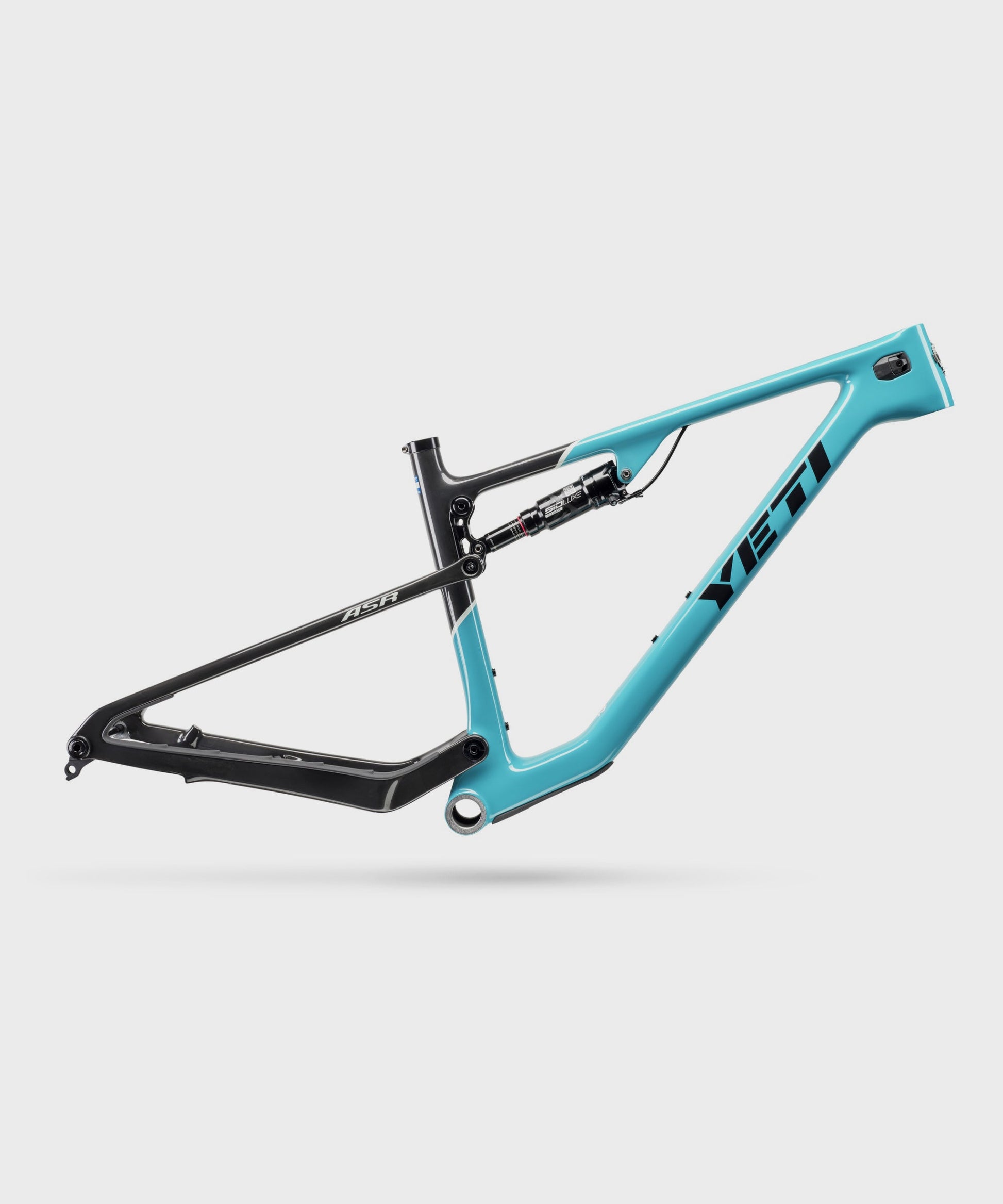

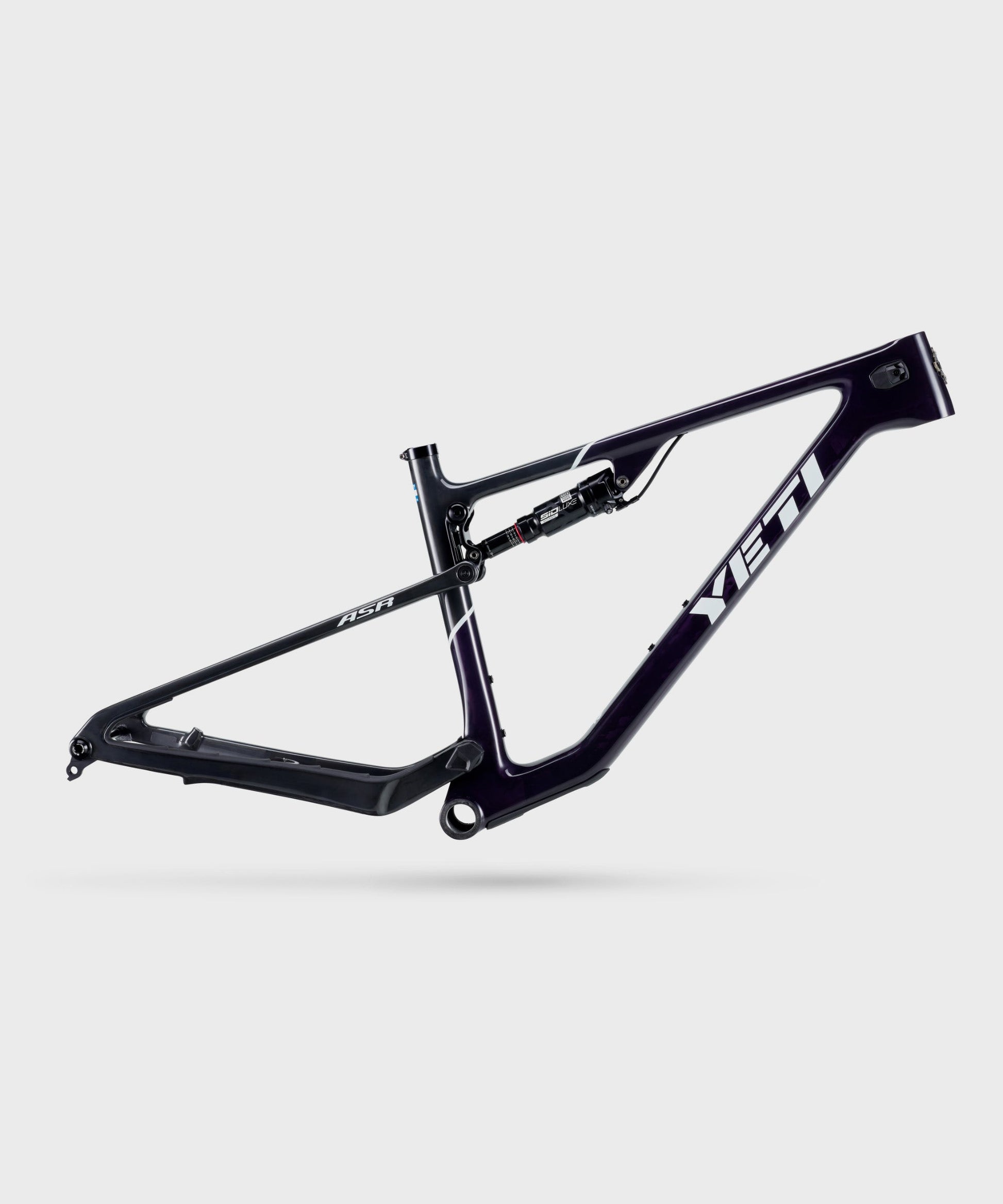

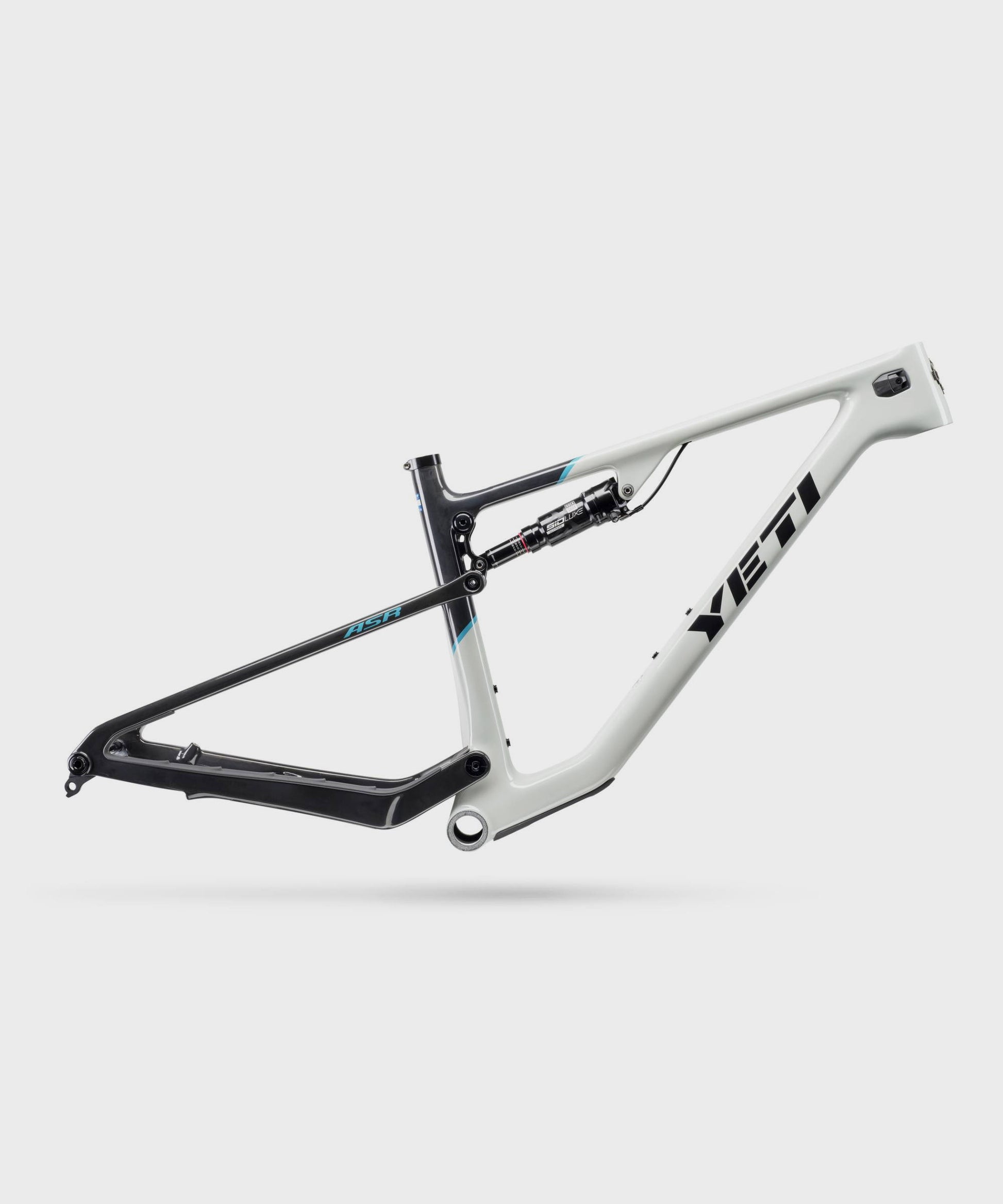

Yeti Cycles ASR T-Series 29 Frame

Yeti Cycles ASR T-Series 29 Frame

ID: YCF26ASRTLGPTUSU0000000

Size
Colour
£3,799.00
£3,799.00
Sold out
Taxes included.
Estimated dispatch:2-5 working days
View full details
  • DESCRIPTION
  • DELIVERY
  • REVIEWS
  • ASK A QUESTION
DESCRIPTION
{{widget type="Magento\Cms\Block\Widget\Block" template="widget/static_block/default.phtml" block_id="136" type_name="CMS Static Block"}}

ASR

A decade ago we peaced out of the lycra game. While we were busy getting down XC got a lot more X calling for the comeback of a legend. Flashing a crazy-light zero-redundant carbon layup that's far beyond the previously possible. Featuring 115mm of flex stay suspension for 100% usable travel and energy saving small-bump compliance. Helping today's racers be faster where they have to be. On first blush it may appear to have peers but don't get it twisted. The reincarnated ASR is a lot like nothing else..

{{widget type="Magento\Cms\Block\Widget\Block" template="widget/static_block/default.phtml" block_id="389" type_name="CMS Static Block"}}

SIZE GUIDE




























































X-SMALL 4'10" - 5'3"
SMALL 5'1" - 5'7"
MEDIUM 5'5" - 5'11"
LARGE 5'10" - 6'3"
X-LARGE 6'1" - 6'7"
XX-LARGE 6'5" - 6'11"


GEOMETRY



All measurements are shown in millimetres.





































































































































































120MM FORK XS SM MD LG XL
A SEAT TUBE LENGTH 400 410 430 470 495
B EFF. TOP TUBE LENGTH 554 574 600 623 653
C HEAD TUBE ANGLE 66.5 66.5 66.5 66.5 66.5
D EFF. SEAT TUBE ANGLE 78 78 78 78 78
E ACTUAL SEATTUBE ANGLE 70.4 70.8 71.2 71.6 72.1
F CHAINSTAY LENGTH 433 435 437 439 441
G WHEELBASE 1122 1144 1174 1201 1236
H ESTIMATED BB HEIGHT 335 335 335 335 335
I STANDOVER 768 768 771 771 776
J HEAD TUBE LENGTH 92 92 101 111 133
K FORK (AXLE TO CROWN) 530 530 530 530 530
L FORK (OFFSET) 44 44 44 44 44
M STACK 592 592 600 610 630
N REACH 400 420 445 465 490
O FRONT CENTER 689 709 737 762 795
P VERTICAL FORK TRAVEL 110 110 110 110 110
