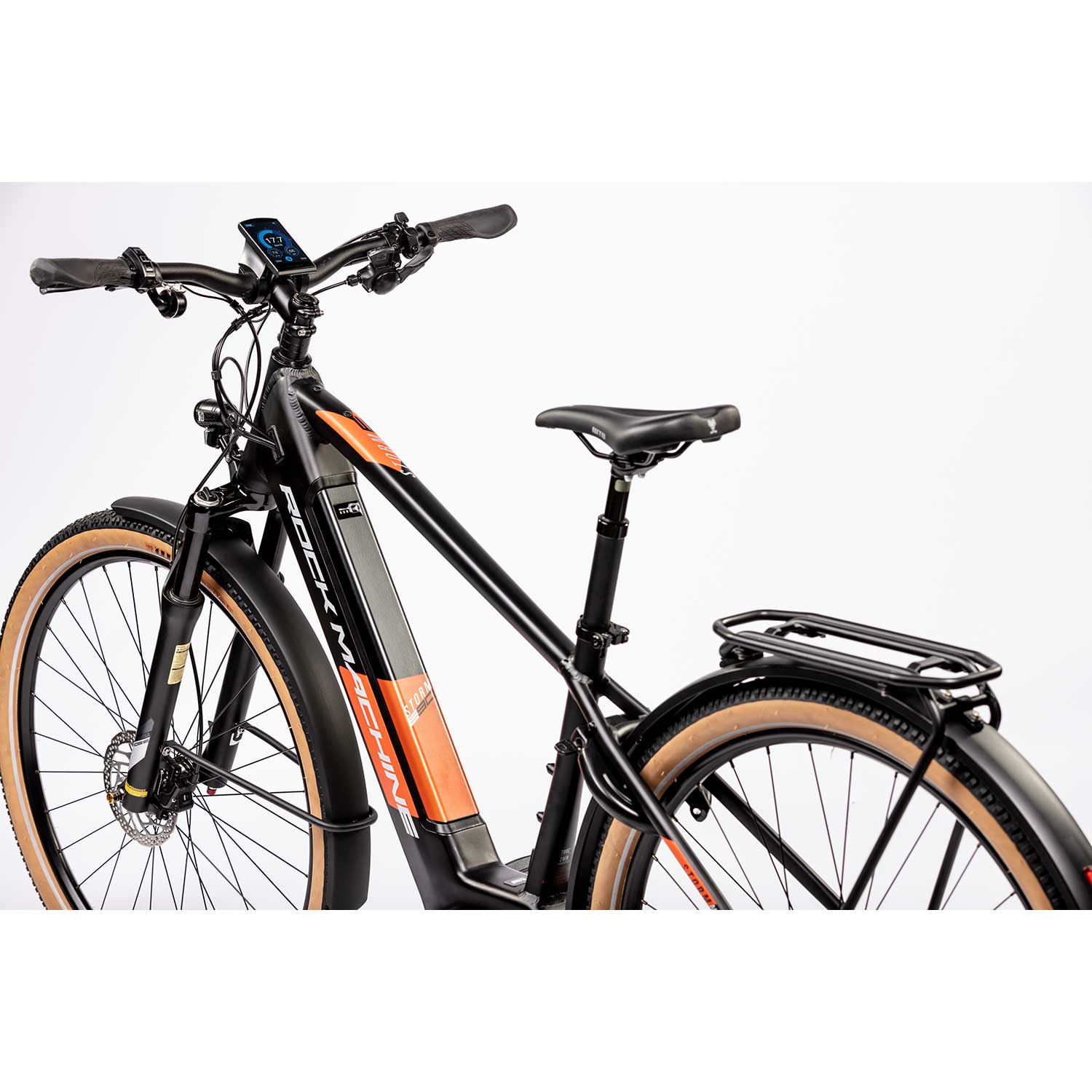

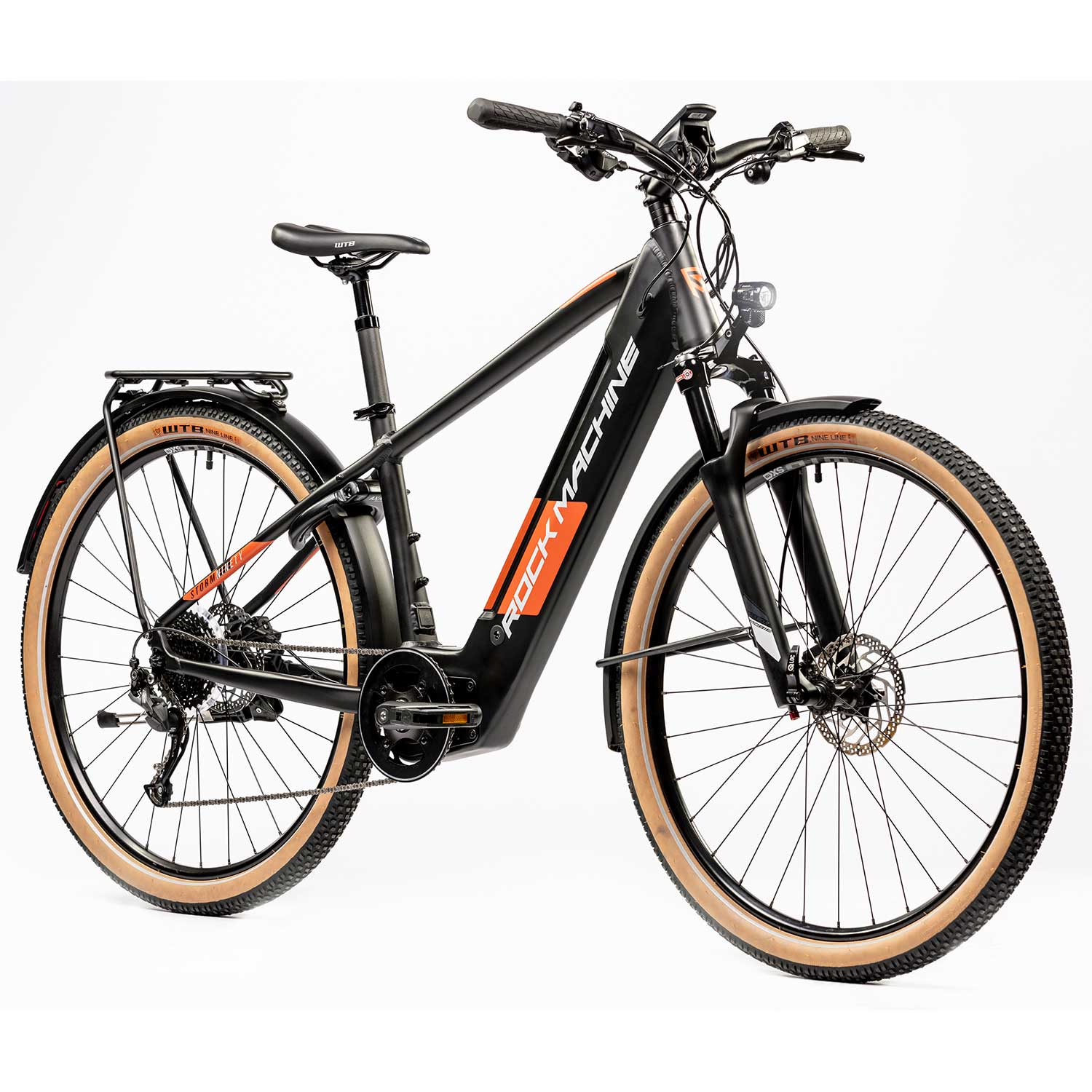

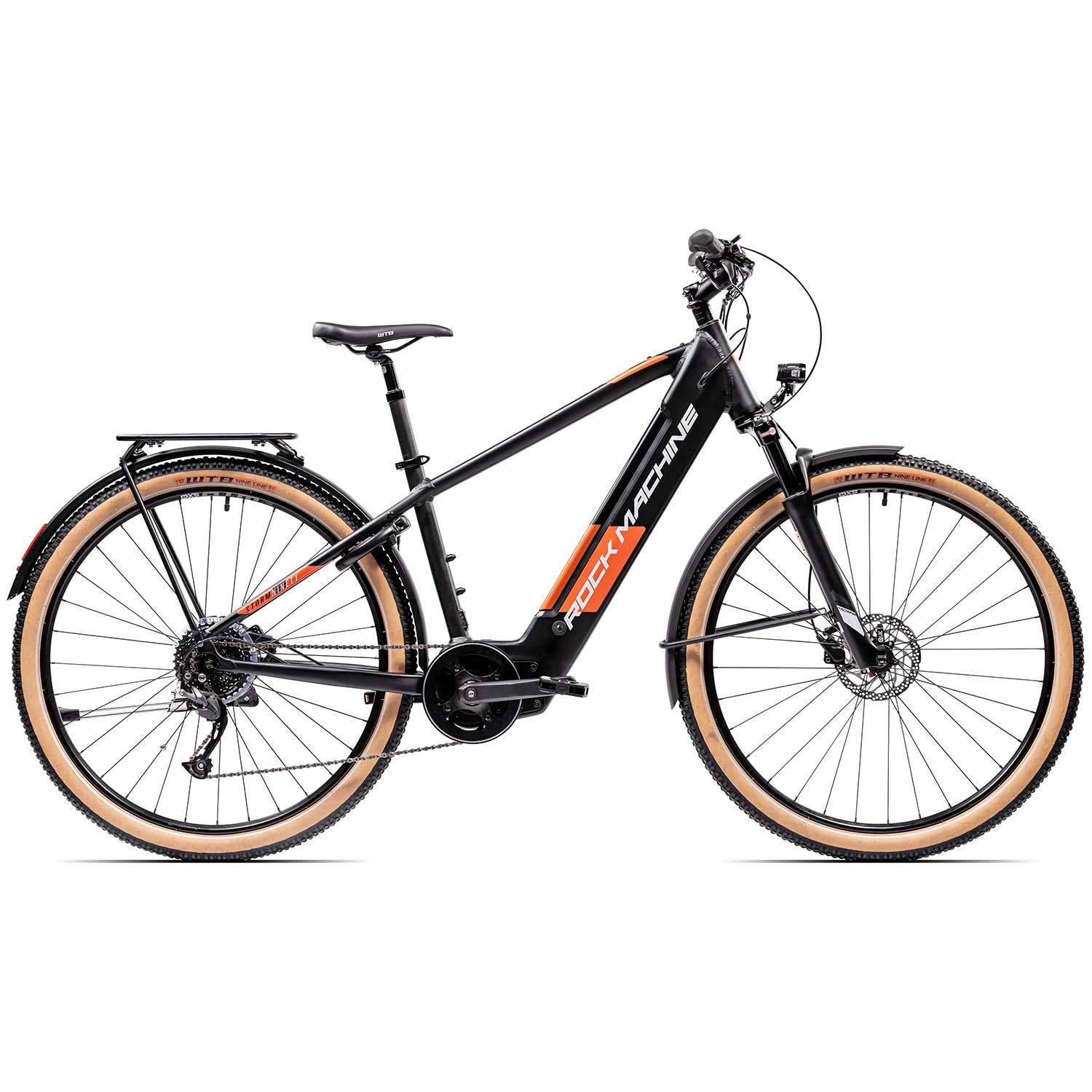

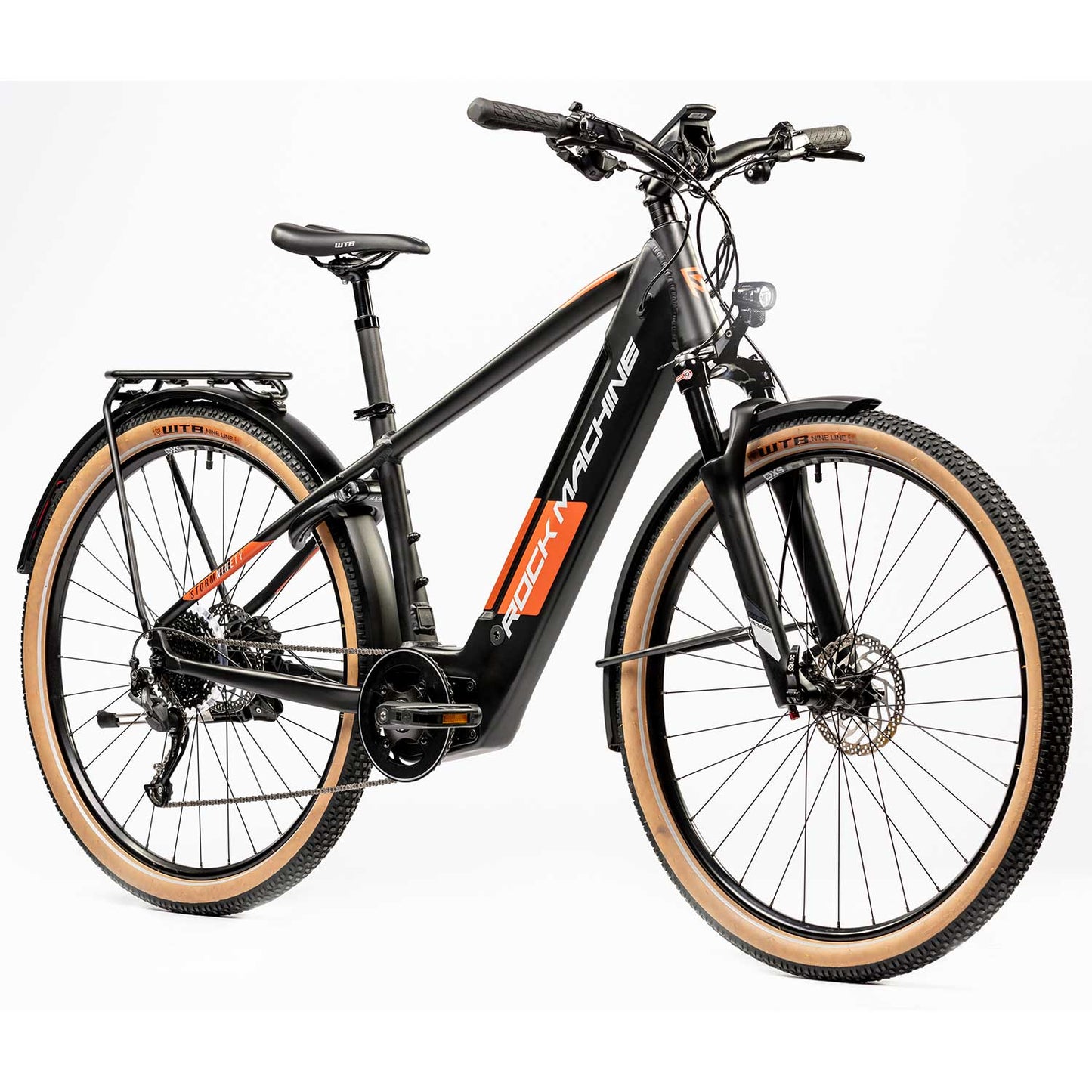

Superior Rock Machine Storm INT e90-29 Touring E-Bike

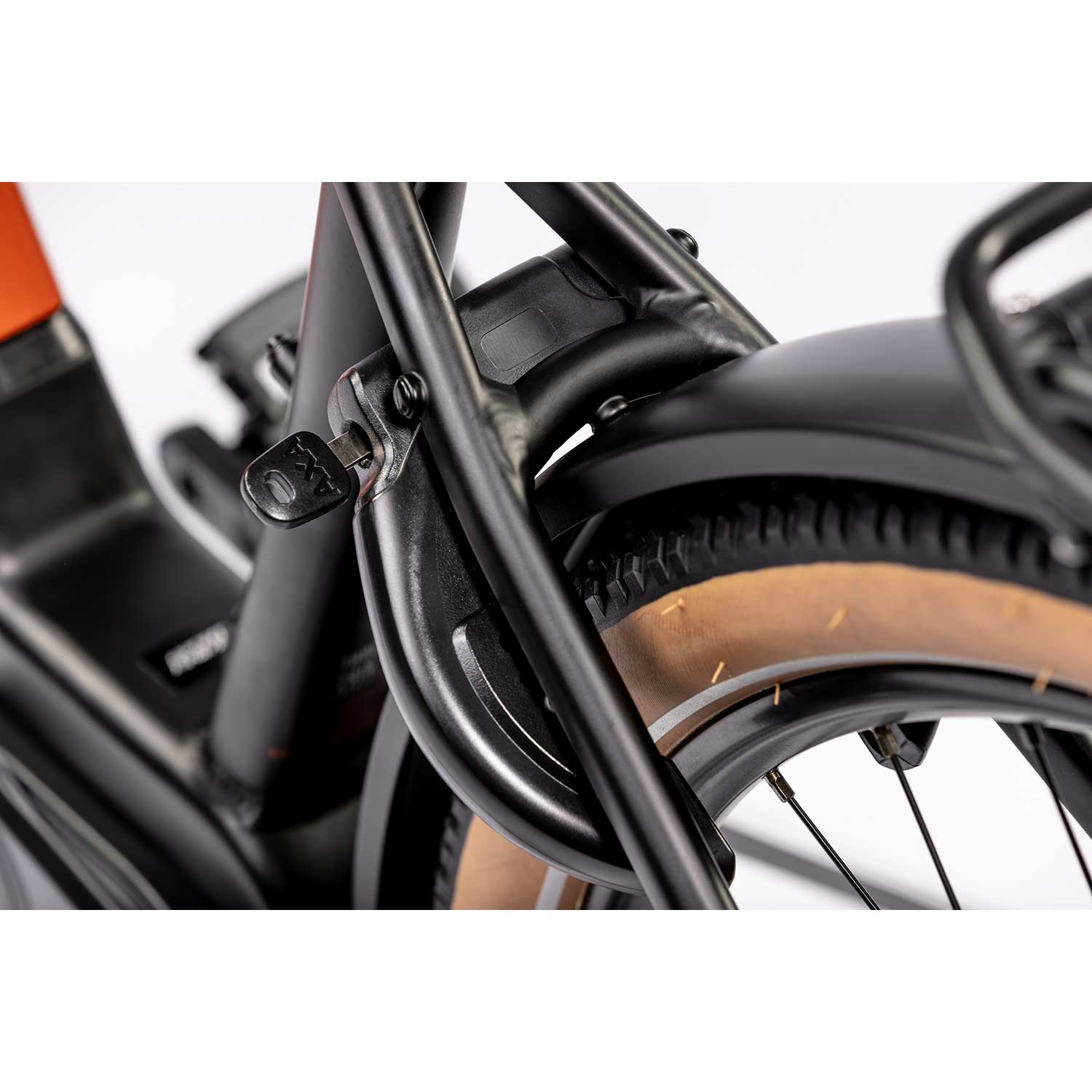

Nestled in its strong and stiff MONO TUBE frame designed by Rock Machine, the integrated battery is like the superhero's core, ready to take on the world. And with the super-powerful Sport Drive E-bike system boasting 90 Nm of torque and a range of up to 120km, you’ll be cruising like royalty without a care in the world. This isn't just any e-bike; it's a full touring set on two wheels! Durable fenders, bright lights, an integrated lock, a sturdy kickstand, and the trusty AltranVelo system for your bags - it's got it all. The geometry? Oh, it’s the perfect blend of stability and fun, ensuring you'll be smiling even when the terrain gets tough.

• Sport Drive with 90 Nm, integrated 504 Wh battery with a range of up to 120 km
• Frame with Fun Ride geometry for improved comfort and control on the ground
• Lightweight Rock Shox Judy Silver TK air suspension fork with 100mm travel
• Durable microSHIFT Acolyte 1x8, 38x12-42, 350% gearing system

FRAMESET

• COLOUR: Gloss Red/Black/Silver
• FRAME: Alloy Al-6061 T6 Custom tubing, Smooth Welding, Fun Ride Geometry, Sport Drive MID Motor, OLD 135x9, Disc Brake Post Mount, Fender & Kickstand Ready Dropout, Replaceable RD Hanger, Inner Cable Routing
• HEADSET: FSA, ZS44/28,6, ZS56/40, ORBIT 1.5B ZS NO.57B
• FORK: RockShox Judy Silver TK, Tapered, SoloAir, 15x110mm axle, 100mm travel
• SIZES: 17.0"(M), 19.0"(L)

E-BIKE

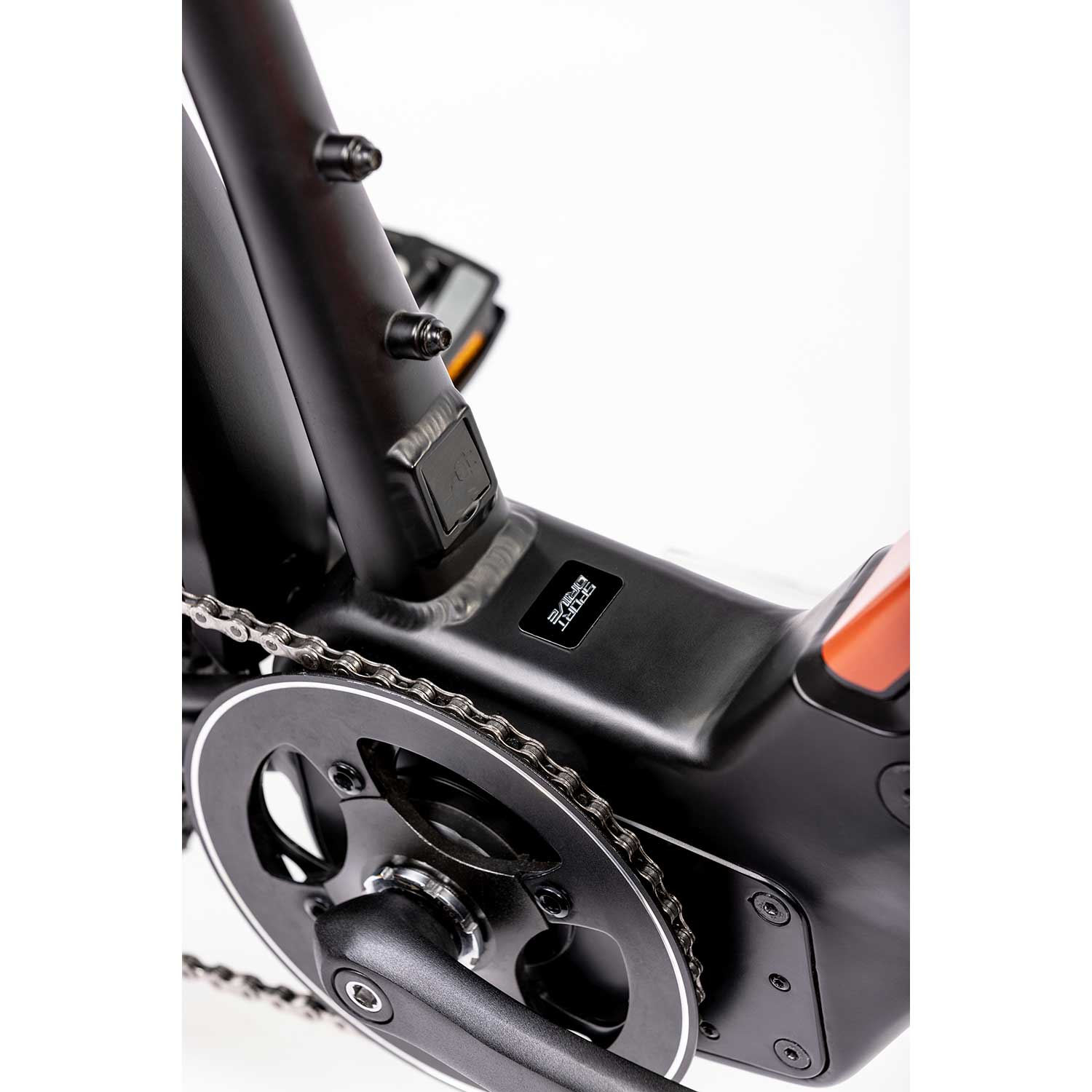

• E-BIKE SYSTEM: SPORT DRIVE middle motor MD250S
• DRIVE UNIT: Centre Sport Drive MD250S, 90 Nm (36 V, 250 W) 500 W
• BATTERY: SportDrive 500Wh, 36V, frame
• DISPLAY: SPORT DRIVE Colour display with USB port
• CHARGER: SPORT DRIVE charger, 36V/2A, charging time up to 7,5 hours

DRIVETRAIN

• GEARS: 1x8, 12-42, 350%

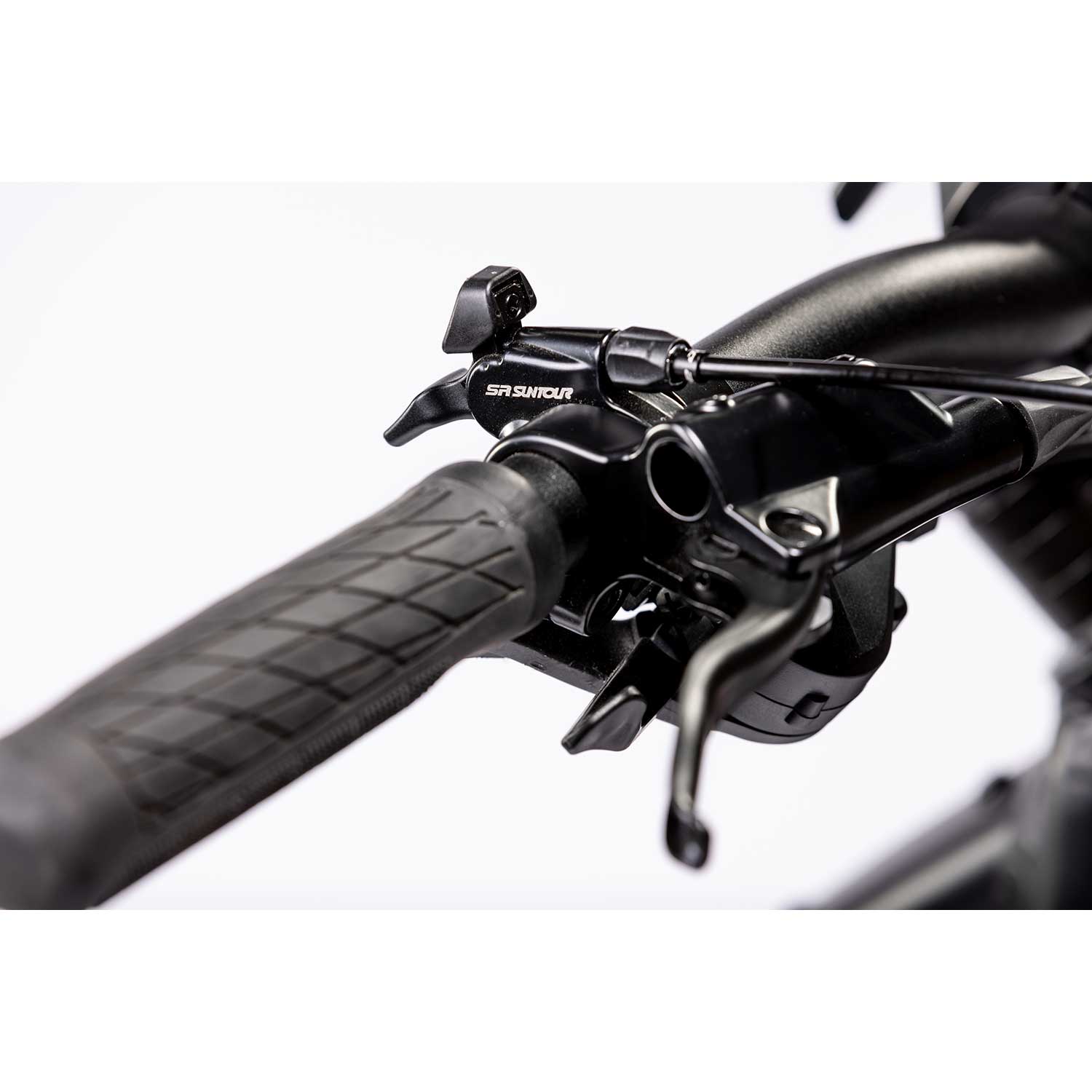

• SHIFTER: microSHIFT ACOLYTE SL-M7180-R, 8-speed

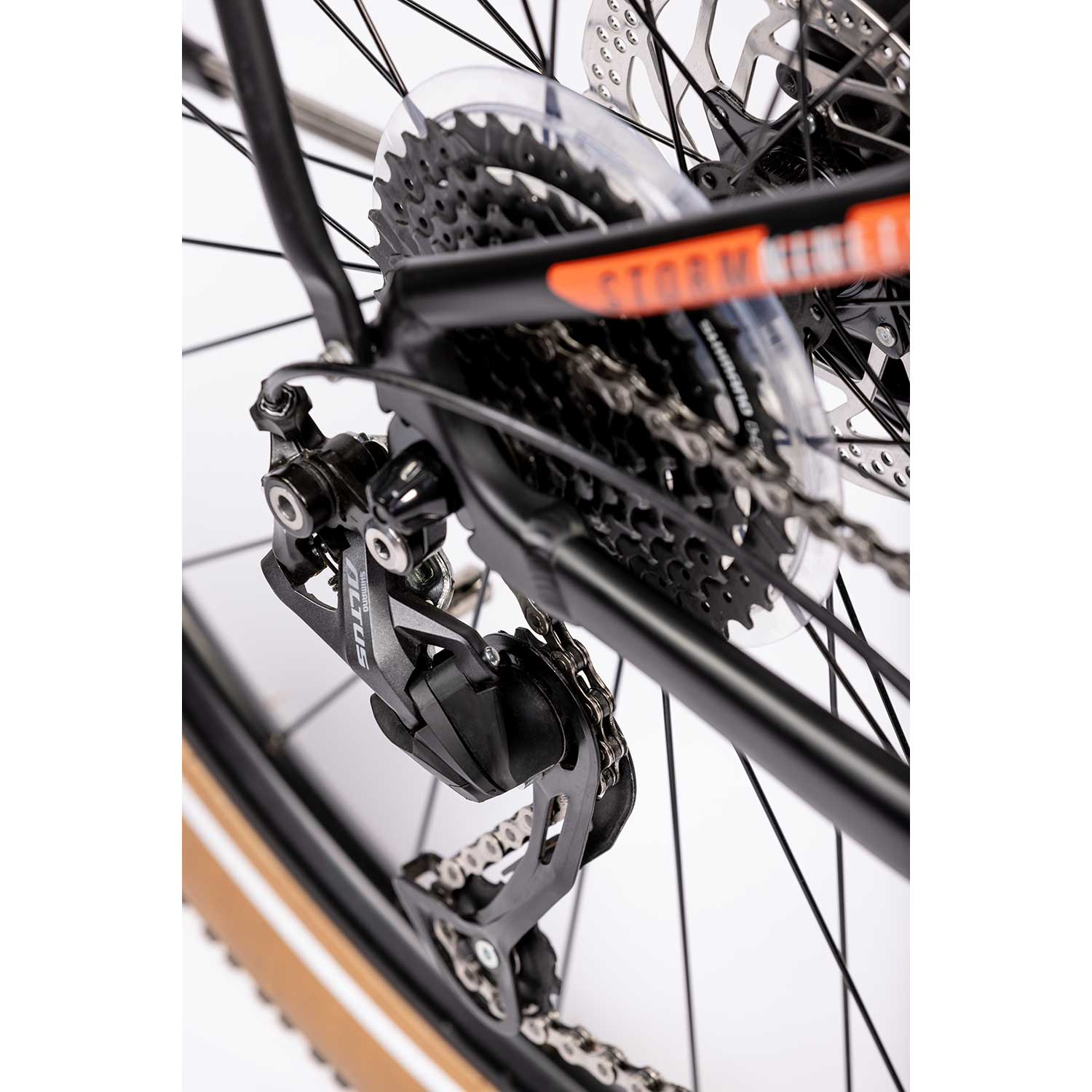

• REAR DERAILLEUR: microSHIFT ACOLYTE RD-M5185M
• CASSETTE: microSHIFT ACOLYTE CS-H083A, 12-42T
• CHAIN: KMC e9S
• PEDALS: Ball bearing, with sand non slip inlay and reflector

COMPONENTS

• HANDLEBAR ONE1 Alloy, MTB AL-325BT, 6Degree upsweep, 9Degree backsweep, 25mm rise, 720mm, 31.8mm
• STEM: ONE1 TDS-C342 Alloy, 31.8xE45mm, +3deg
• GRIPS: Velo VLG-1879D2, Ergo Grip

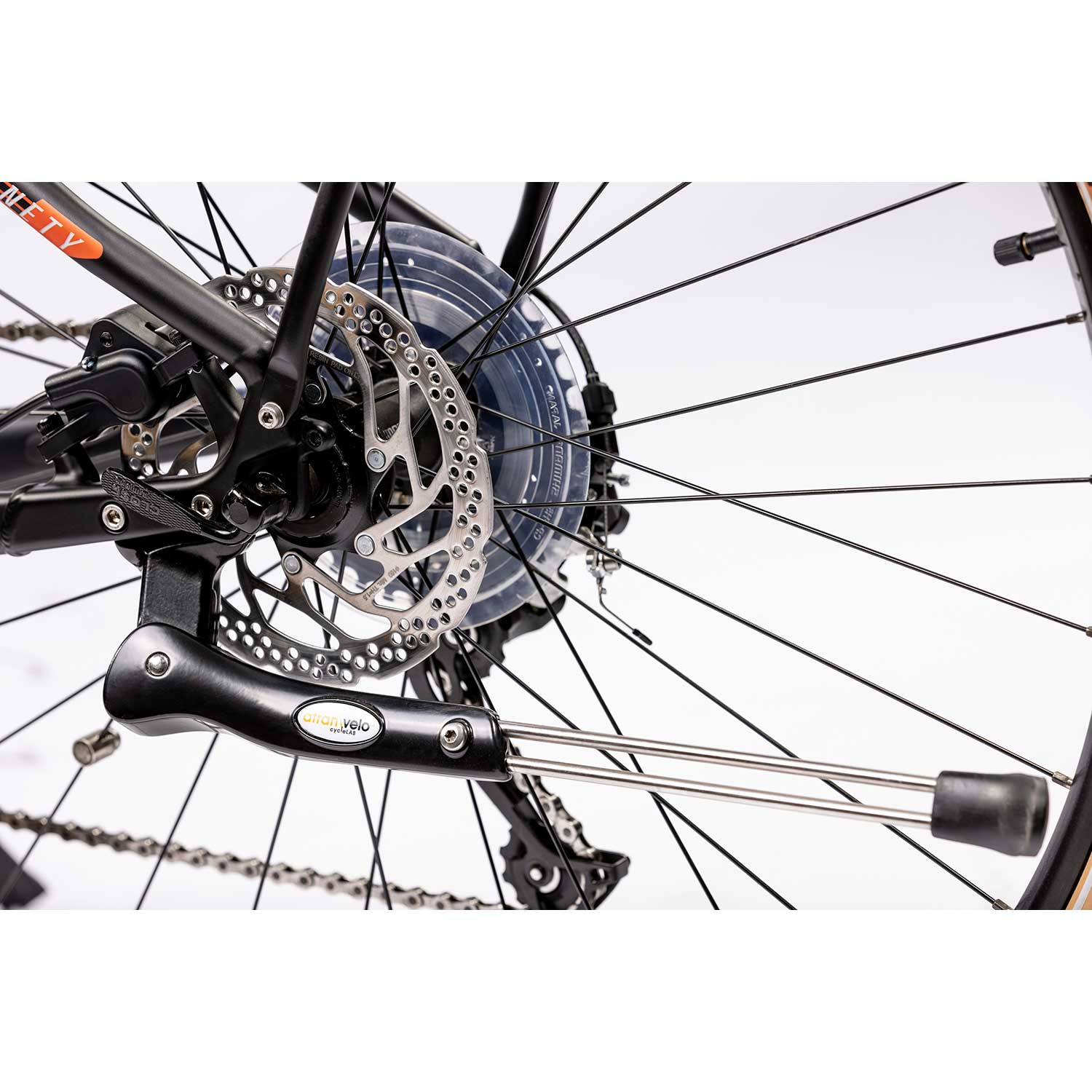

• BRAKES: Hydraulic Shimano BL-MT200/BR-MT200, disc 160/160 mm

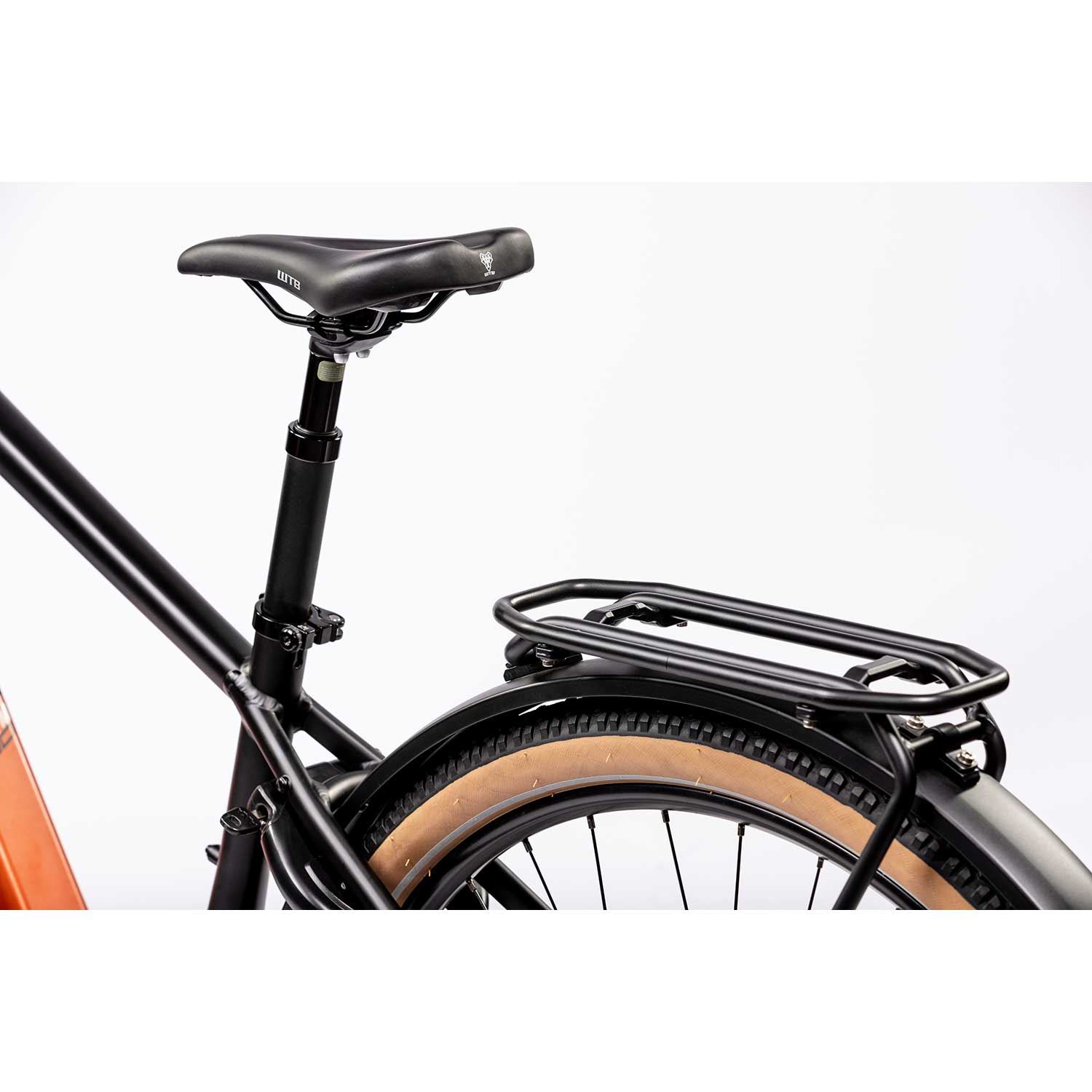

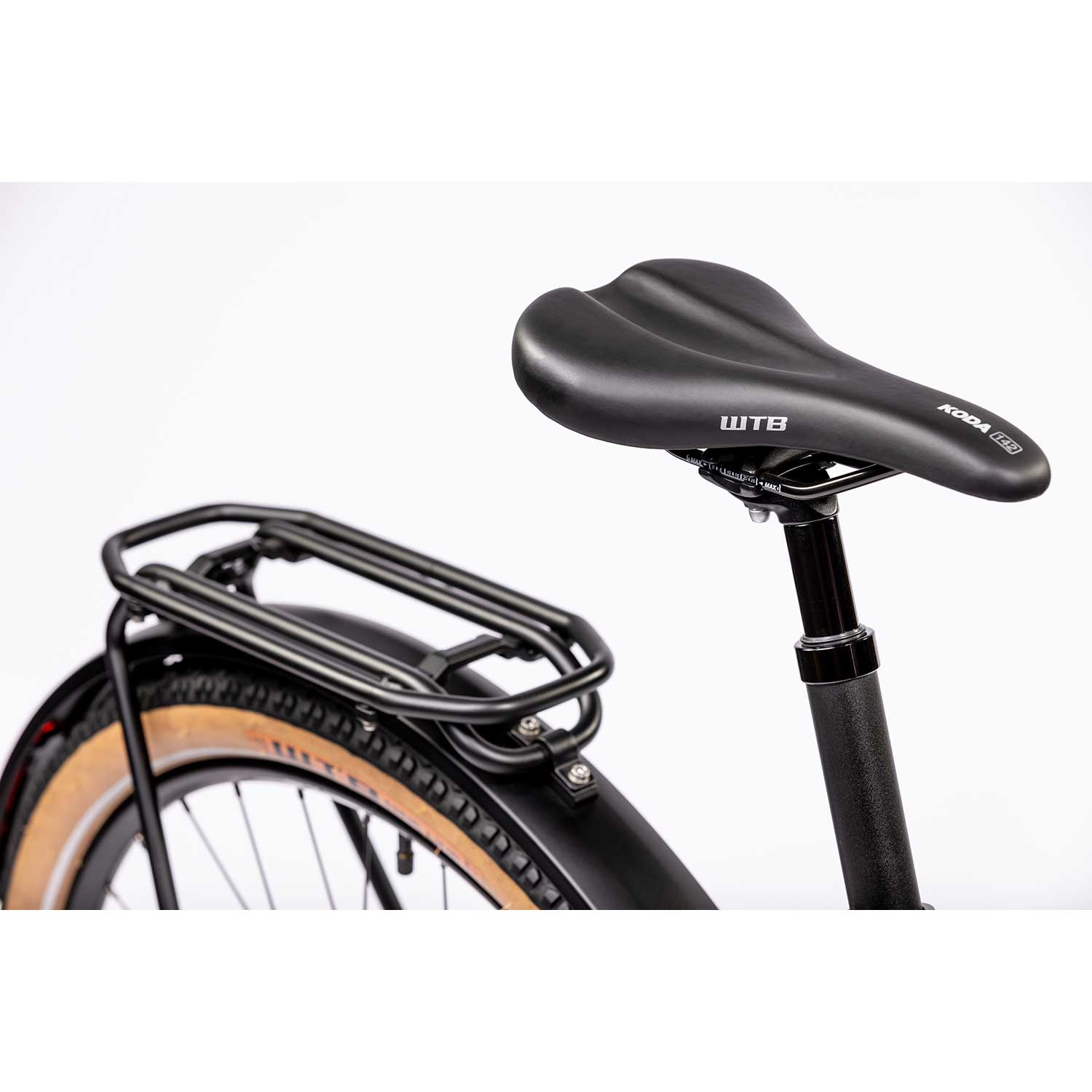

• SADDLE: WTB Koda Sport
• SEATPOST: ONE1 Alloy, SP S405, 30.9mm

WHEELS

• FRONT HUB: ONE1 QLSX9F, 32H, 15x110mm THRU Type AXLE
• REAR HUB: ONE1 KTK68R, 32H, M10x135, CASSETE, QR Type
• RIMS: WTB SX19, 32H
• TYRES: WTB Nineline Comp, 29x2.25", Reflective Stripe
• SPOKES: Sapim Galvanized Black

WEIGHT

• 23.2 Kg (M size)

Please Note: Bike Specification May Be Subject To Change Without Notice
