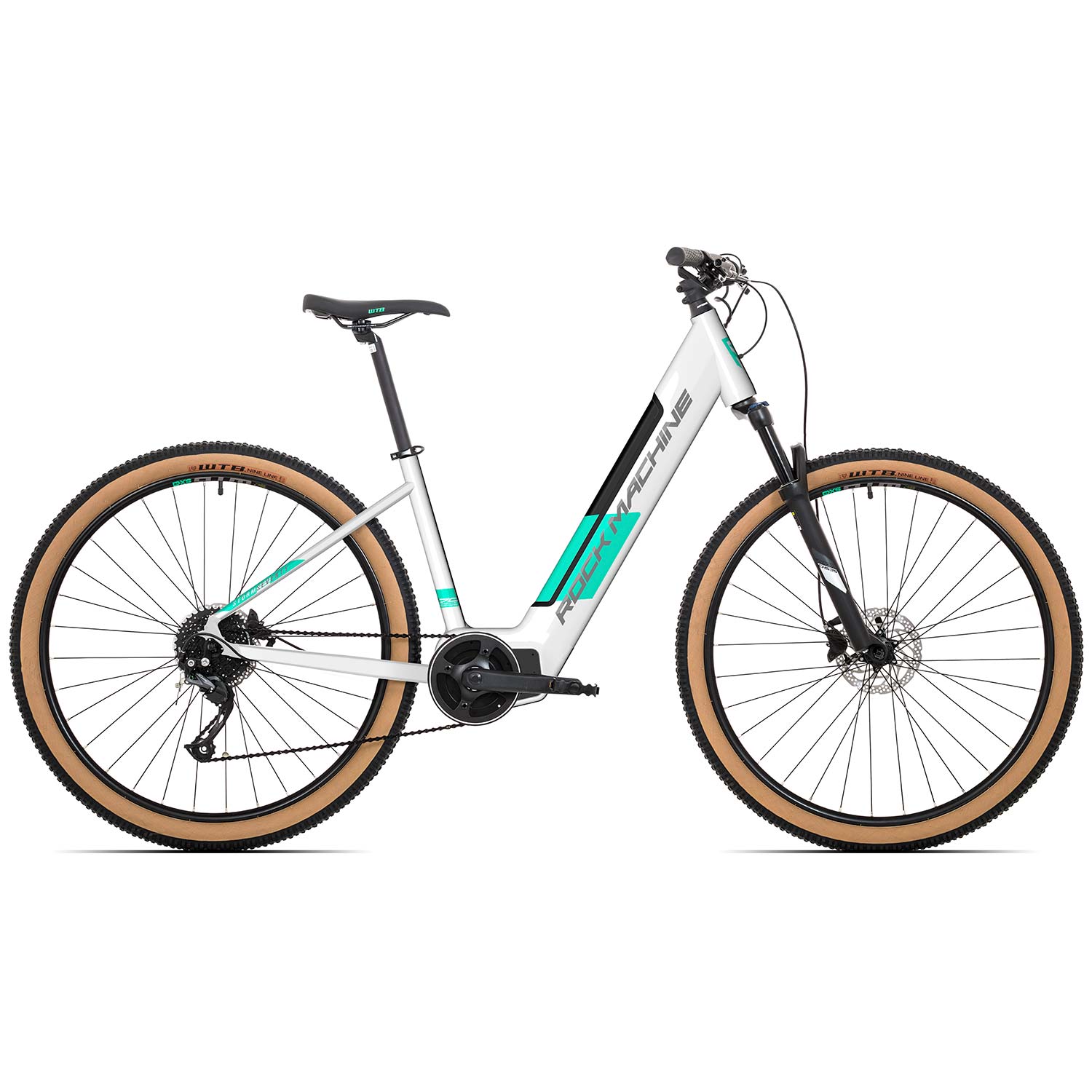

Superior Rock Machine Storm INT e70-29 Ladies E-Bike

A state of the art 29" e-bike with 90 Nm Sport Drive mid-motor and a fully integrated 500 Wh battery granting a range of up to 100 km. The new Fun Ride geometry has been engineered to deliver an easier and more comfortable Storm ride, both on and off roads. The comfort and safety elements comprise a lockable suspension fork, 2.25" WTB tyres with a universal fast pattern, and Shimano hydraulic disc brakes. The possibility to mount a cargo rack, a safety lock, a kickstand or mudguards: All of these are the parts and smart details that make the Storm a perfect pal in everyday commuting and weekend sports trips or touring.

• Lady specific frame with Fun Ride Geometry to increase Comfort and Control and to make uphill's and downhills easier
• Sport Drive motor with 90 Nm, battery 500 Wh and range up to 100 km
• Shimano ALTUS 1x9 38 x 11-36
• ZOOM 595S AMS HLO, 1-1/8", Coil, QR Type, Lockout, 100 mm travel
• WTB Nineline 29x2.25" tyres with Reflective Tape

Sport Drive MD250S

MD250s middle motor: fully integrated into the Sport drive frame, with truly exceptional parameters offers maximal power of 500 W, the efficiency of more than 80%. It is a clear choice for use in mountain e-bikes. You will appreciate not only the performance but also its exceptionally quiet operation. Even in the steepest terrain, it will help you in a very significant way.

• Drive Unit: MD250S
• Max. torque: 90 Nm
• Range: 100km (Average of combined use of all modes and favourable conditions)
• Assist modes: 1/2/3 + Walk

FRAMESET

• COLOUR: Gloss Red/Black/Silver
• FRAME: Alloy Al-6061 T6 Custom Mono tubing, Fun Ride geometry
• HEADSET: FSA No.10 Semi-Cartridge, 1-1/8"
• FORK: sprung Zoom 595S AMS HLO, QR Type / 100 mm
• SIZES: 17.0"(M), 19.0"(L)

E-BIKE

• E-BIKE SYSTEM: SPORT DRIVE - torsion and speed sensor
• DRIVE UNIT: Centre Sport Drive MD250S, 90 Nm (36 V, 250 W) 500 W
• BATTERY: Integrated Sport Drive, 504 Wh (36 V, 14 Ah)
• DISPLAY: Sport Drive Grip display
• CHARGER: Sport Drive 2A charger
• MAX SUPPORT SPEED: 25 km/h
• CHARGE CYCLES: 1000/80% of original capacity

DRIVETRAIN

• GEARS: 1x9, 38x11-36, 327 %
• SHIFTER: Shimano Altus SL-M2010-9R RapidFire Plus
• REAR DERAILLEUR: Shimano Altus RD-M2000 Shadow
• CRANKSET: Wheel Top ED2L, 170 mm, 38T
• CASSETTE: Shimano Acera CS-HG200-9, 11-36T
• CHAIN: KMC e9S
• PEDALS: Marwi SP-827 SANDBLOCK Non/slip pedal

COMPONENTS

• HANDLEBAR ONE1 Alloy, MTB AL-325BT, 6Degree upsweep, 9Degree backsweep, 25mm rise, 720mm, 31.8mm
• STEM: ONE1 TDS-C342 Alloy, 31.8xE45mm, +3deg
• GRIPS: Velo VLG-1879D2, Ergo Grip
• BRAKES: Hydraulic Shimano BL-MT200/BR-MT200, disc 160/160mm
• SADDLE: WTB Koda Sport
• SEATPOST: ONE1 Alloy, SP S405, 30.9mm

WHEELS

• FRONT HUB: Shimano HB-TX505, 32H, CL, QR Type
• REAR HUB: Shimano FH-TX505-8, 32H, CL, M10×135 mm, QR Type
• RIMS: WTB SX19, 32H
• TYRES: WTB Nineline Comp, 29x2.25", Reflective Stripe
• SPOKES: Sapim Galvanized Black

WEIGHT

• 23.2 Kg (M size)

Please Note: Bike Specification May Be Subject To Change Without Notice
