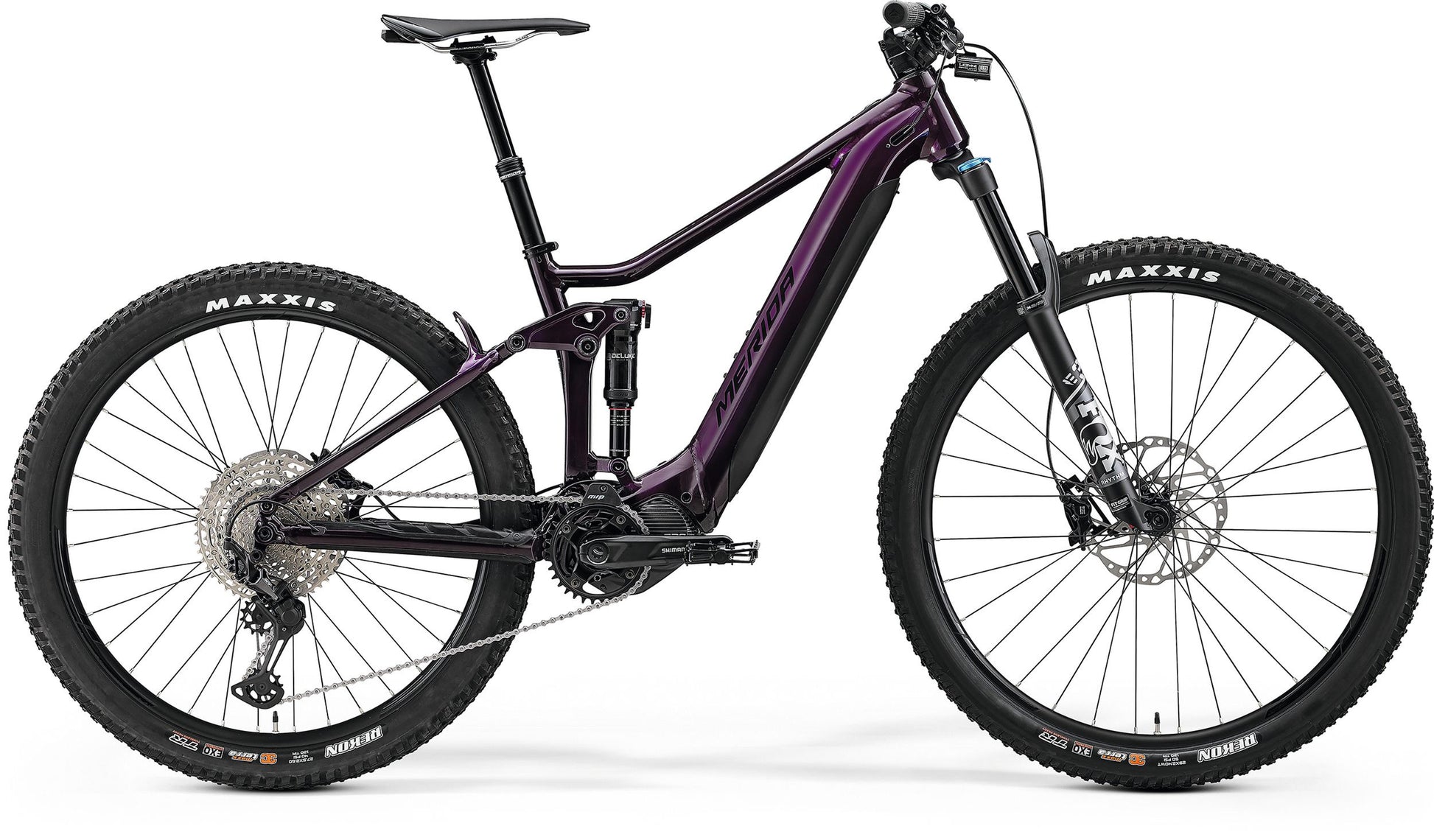

• Merida eOne-Forty 700 - Purple/Black - 504Wh battery - MY23
1 1

Merida

Merida eOne-Forty 700 - Purple/Black - 504Wh battery - MY23

Merida eOne-Forty 700 - Purple/Black - 504Wh battery - MY23

ID: N828

Size
Colour
£5,525.00
£5,525.00
Sale Sold out
Taxes included.
Estimated dispatch:1-2 working days
View full details
  • DESCRIPTION
  • SPECIFICATION
  • DELIVERY
  • REVIEWS
  • ASK A QUESTION
DESCRIPTION

The eOne-Sixty is the headline grabber of the Merida eBike range; for 3 generations it's been winning tests, gathering accolades and generally hogging the limelight!

The eOne-Forty shares exactly the same frame and design features but has different ride characteristics.

The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach, delivering a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful; a highly competent climber that's perfect for all day riding.

The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.

All eOne-Forty models use the powerful Shimano EP8 85NM motor and bigger 630Wh battery (with the exception of frame size - S which uses 504Wh).

Shimano's e-Tube app allows you to tailor power delivery to suit your riding style; you can set two profiles; one for shredding and one for cruising.

SPECIFICATION
  • Frame: Lite III - Hydroformed 6061 double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
  • Rear Shock: RockShox Deluxe Select+; platform
  • Fork: FOX Rhythm 34 Float eMTB+; Air; 140mm travel; Tapered; 51mm fork offset. Max. tyre size: 29" x 2.5"
  • Headset: Merida-8152
  • Stem: Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes). GoPro & Supernova mount point.
  • Handlebars: Merida Expert eTR; 780mm wide; 20mm rise
  • Brake Type: Hydraulic disc
  • Brake Lever: Shimano SLX
  • Front Brake: Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RT64; 203 mm rotor
  • Rear Brake: Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RTEM600; 203 mm rotor
  • Front Tyre: Maxxis Rekon; 29" x 2.4"; kevlar bead; 3C EXO MaxxTerra
  • Rear Tyre: Maxxis Rekon; 27.5" x 2.6"; kevlar bead; TR 3C EXO MaxxTerra
  • Wheel Size: 29" / 27.5"
  • Rim: Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included)
  • Spokes: Black stainless
  • Front Hub: Shimano SLX; 110x15mm; 32 spokes; Center lock
  • Rear Hub: Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Speeds: 12
  • Rear Derailleur: Shimano XT RDM8100 Shadow+ 12
  • Shift Levers: Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever
  • Chain: KMC e12T EPT
  • Cassette: Shimano M6100; 10-51 teeth; 12 speed
  • Chainset: Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
  • Bottom Bracket: Part of Shimano Steps motor
  • Pedals: VP Components, VPE-527
  • Saddle: Merida Expert CC; V-mount including Merida multitool
  • Seatpost: Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (S), 125mm (M), 150mm (L/XL), 170mm (XXL)
  • Motor: Shimano E8035; 504Wh internal battery, Shimano Steps EP8; 85Nm
  • Battery Capacity: 504 Wh
  • Display: Shimano SC-E7000
