• Merida eOne-Forty 400 - Anthracite/Black - MY23
1 1

Merida

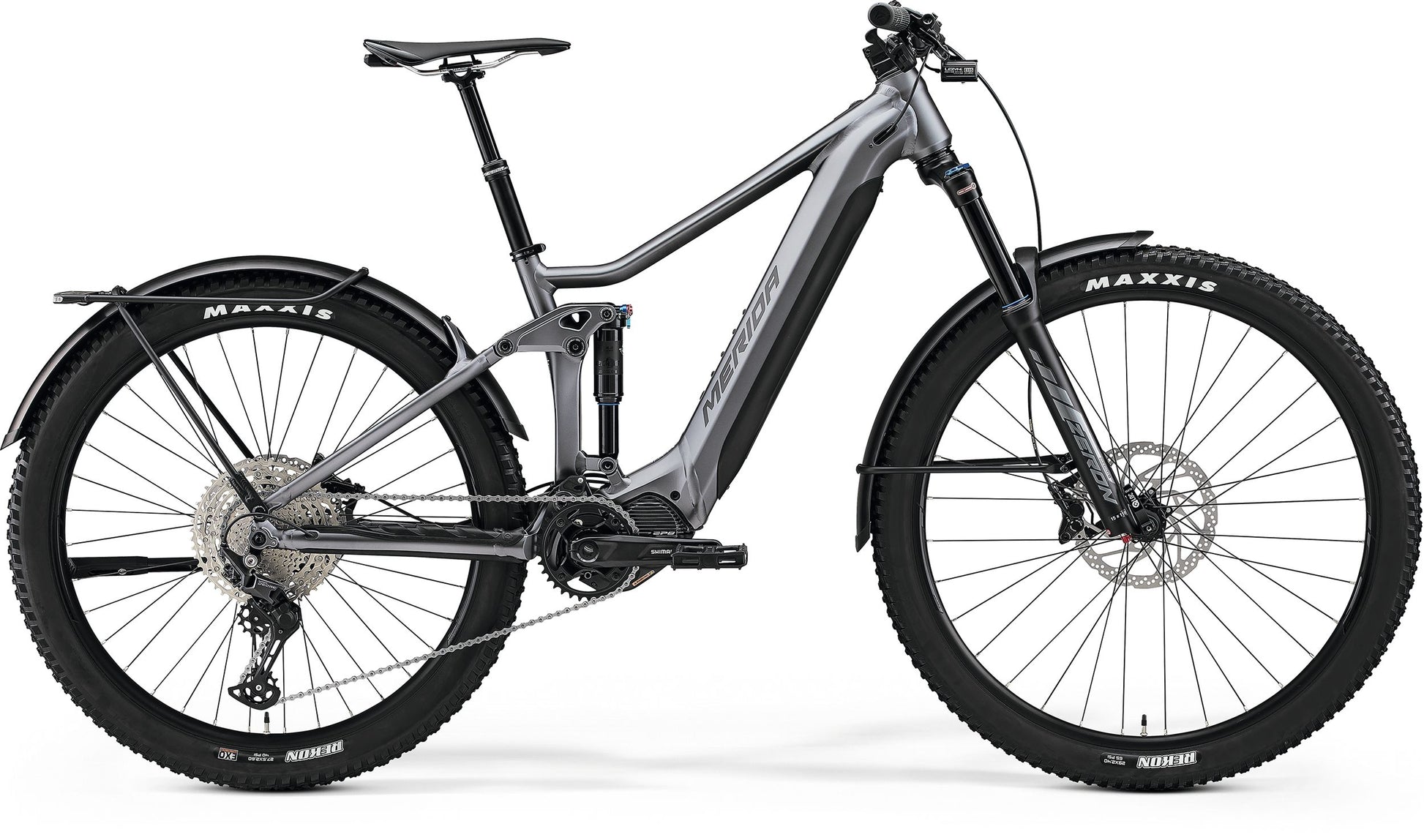

Merida eOne-Forty 400 - Anthracite/Black - MY23

Merida eOne-Forty 400 - Anthracite/Black - MY23

ID: N946

Size
Colour
£3,800.00
£3,800.00
Sale Sold out
Taxes included.
Estimated dispatch:1-2 working days
View full details
  • DESCRIPTION
  • SPECIFICATION
  • DELIVERY
  • REVIEWS
  • ASK A QUESTION
DESCRIPTION

The eOne-Sixty is the headline grabber of the Merida eBike range, for 3 generations it has been winning tests, gathering accolades and generally hogging the limelight!

However........ the eOne-Forty and eOne-Sixty share exactly the same frame and design features but have different ride characteristics.

The shock stroke on the eOne-Forty is shorter, reducing rear travel to 133mm and creating a steeper seat angle. The shorter 140mm fork extends the reach and delivers a slightly steeper head angle. In combination these small changes make the eOne-Forty more agile and playful, a highly competent climber and perfect for all day riding.

The mixed wheel size set up is carried over, to give the e-full suspension bikes precise steering, fantastic ‘rolling over obstacles’ behaviour yet maximum traction, a 29er front wheel with a 2.5" tyre is combined with a 650B rear wheel, equipped with a slightly wider 2.6" tyre. The perfect combination of precision, playfulness and traction.

All eOne-Forty models use the powerful new Shimano EP8 85NM motor and bigger 630NM battery (with the exception of S frame sizes).

Shimano's e-Tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.

SPECIFICATION
  • Frame: Lite III - Hydroformed 6061 double butted aluminium with integrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5" x 2.8".
  • Rear Shock: SunTour RS-Edge-TR-LO-R8-M6; lockout
  • Fork: SunTour XCR34 LOR DS; Air Boost; 140mm; Tapered; 51mm fork offset. Max Tyre clearance 29" x 2.4"
  • Headset: Merida-8152
  • Stem: Merida Expert eTRII; Material: aluminium; 35mm diameter; 0 degree rise; 50mm all sizes
  • Handlebars: Merida Expert eTR; 780mm wide; 20mm rise
  • Brake Type: Hydraulic disc
  • Brake Lever: Shimano M4100
  • Front Brake: Shimano M4100; 4 piston hydraulic disc brake with Shimano RT30; 203 mm rotor
  • Rear Brake: Shimano M4100; 2 piston with Shimano RTEM300; 180mm rotor
  • Front Tyre: Maxxis Rekon; 29" x 2.4"; wire bead
  • Rear Tyre: Maxxis Rekon; 27.5" x 2.6"; EXO wire bead
  • Wheel Size: 29" / 27.5"
  • Rim: Merida Comp TR; 29mm inner rim width; Material: aluminium
  • Spokes: Black stainless
  • Front Hub: Shimano MT400-B; 110x15mm; 32 spokes; Centerlock
  • Rear Hub: Shimano MT400-B; 148x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key
  • Speeds: 10
  • Rear Derailleur: Shimano Deore RDM5120 10
  • Shift Levers: Shimano Deore M4100
  • Chain: Shimano CN-HG54
  • Cassette: Shimano M4100; 11-46 teeth; 10 speed
  • Chainset: Shimano CRE70-B; 34 teeth chainwheel with Shimano FCEM600; 165mm length crank
  • Bottom Bracket: Part of Shimano Steps motor
  • Pedals: VP Components, VPE-537
  • Saddle: Merida Comp CC; V-mount
  • Seatpost: Merida Comp TR; 30.9mm diameter; in-line; S 100mm drop - M/L 125mm drop - XL/XXL 150mm drop with Shimano SL -MT500-IL lever
  • Motor: Shimano E8036; 630Wh battery, Shimano EP8; 85Nm motor
  • Battery Capacity: 630 Wh
  • Display: Shimano SC-E5003
