DESCRIPTION
Upgrade Your Adventure.

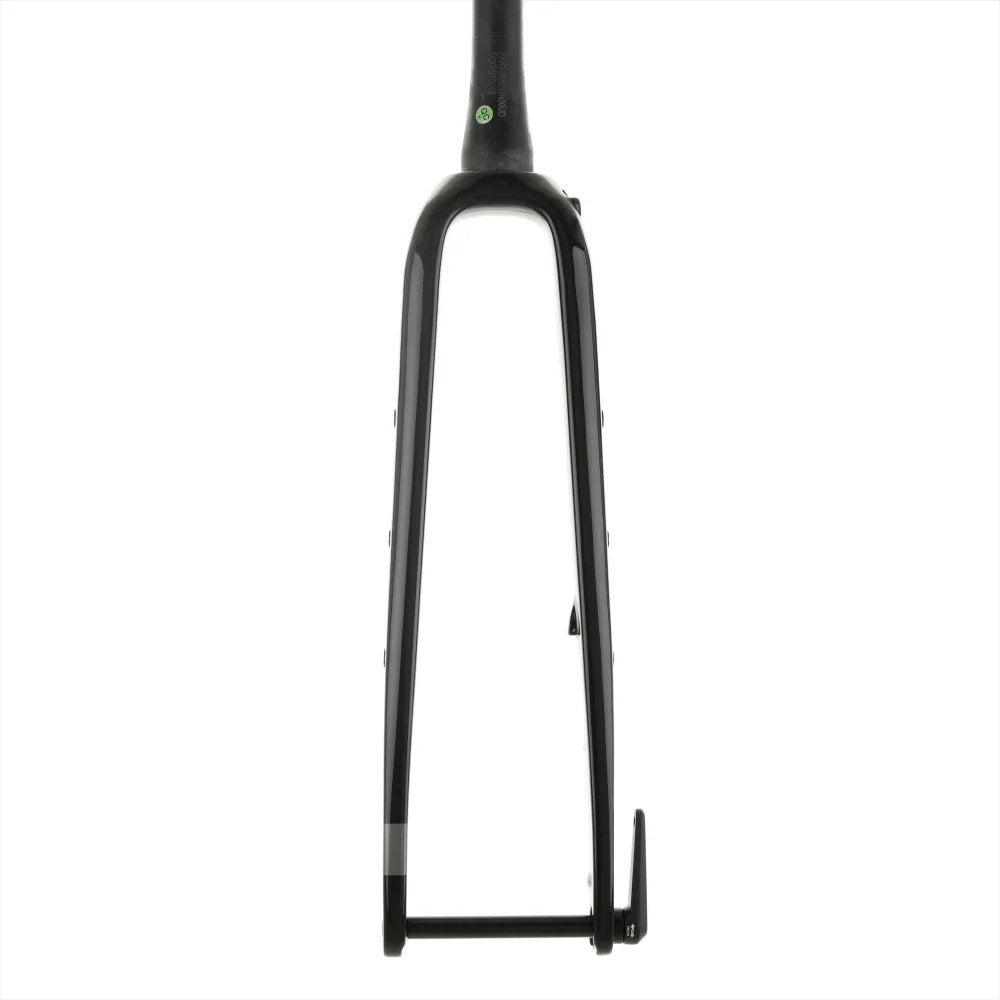

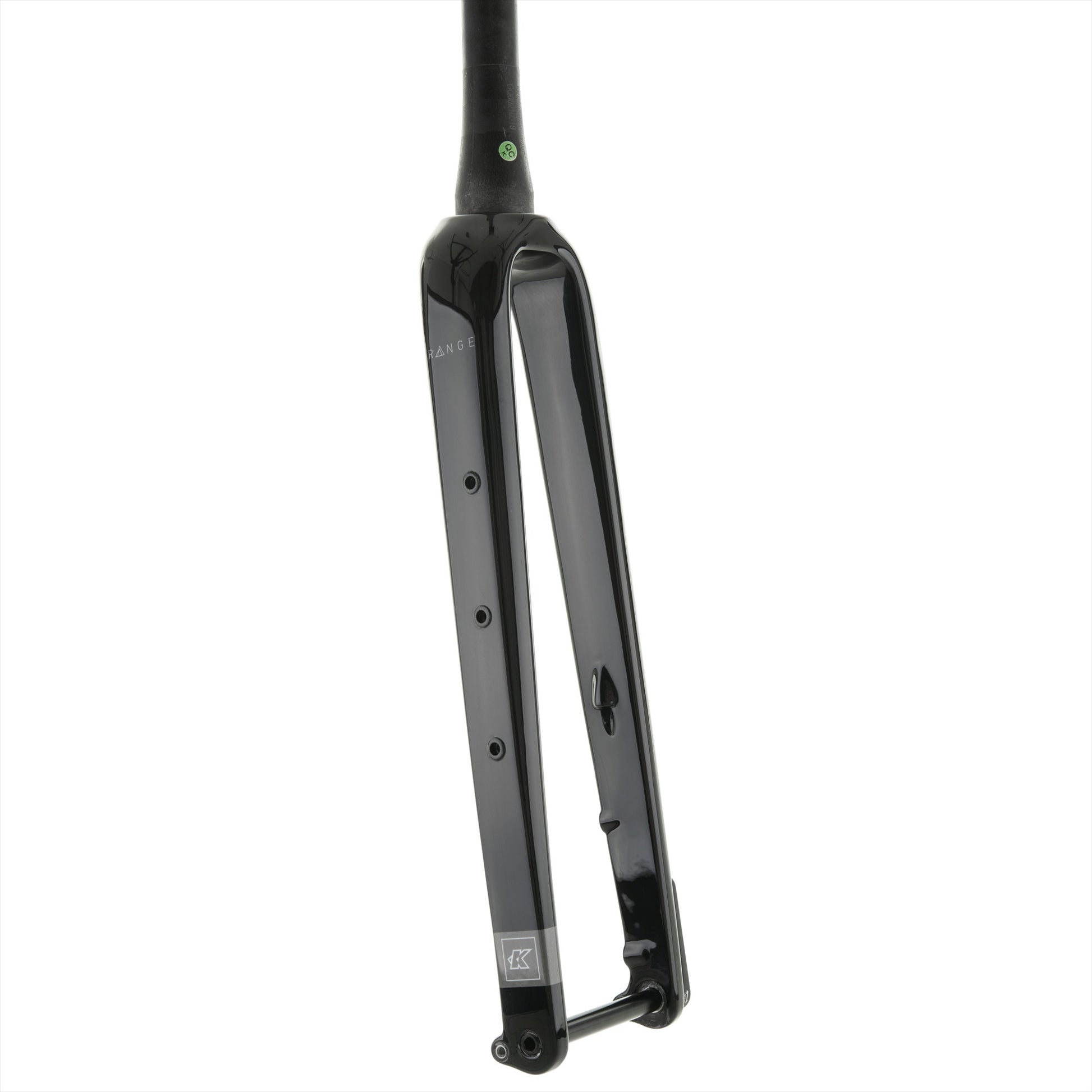

The all-new Range fork was designed to be used with the new and improved Kinesis Tripster ATR. However, it is now available to purchase separately to upgrade your bike, ready for the next adventure.
With 3 cargo mounts on the left and right legs (6 in total), the Range fork is extremely customizable and can easily accommodate bottle cages as well as luggage racks, perfect for all adventures. The Range fork also provides internal routing for the front brake, creating a much tidier front end and reducing the risk of cable snag.
With full UD Carbon Fibre construction, the Range fork absorbs all vibrations, resulting in a smooth and comfortable ride whilst also being incredibly light at only 500g (without axle).
The luggage carrying weight capacity of the Range fork is 1kg per side. We recommend distributing weight evenly between the two sides so as not to affect handling.
The range fork is not supplied with cargo mount bolts.
The bolts required for the cargo mounts are size M5. The minimum thread insertion depth with cargo fitted must be 10mm.
The maximum bolt thread insertion depth is 16mm on the topmost and middle mounting hole.
The maximum bolt thread insertion depth is 12mm on the lowest hole.
To simply blank the holes when not using any racks, we recommend bolts with a thread of 10mm length.
To mount racks to your fork - we cannot recommend exact bolt lengths, as the length of bolt required for your rack can vary greatly depending on the thickness of the material used in the construction of your rack or mount. Please refer to the maximum thread insertion depths listed above. You must check that the bolt used will have the correct thread insertion depth when the rack is fitted. If bolts of too short a length are fitted it may cause the threads to strip and the rack or mount to fail. If bolts of too long a length are fitted, you will damage the carbon inside the fork.
The all-new Range fork was designed to be used with the new and improved Kinesis Tripster ATR. However, it is now available to purchase separately to upgrade your bike, ready for the next adventure.
With 3 cargo mounts on the left and right legs (6 in total), the Range fork is extremely customizable and can easily accommodate bottle cages as well as luggage racks, perfect for all adventures. The Range fork also provides internal routing for the front brake, creating a much tidier front end and reducing the risk of cable snag.
With full UD Carbon Fibre construction, the Range fork absorbs all vibrations, resulting in a smooth and comfortable ride whilst also being incredibly light at only 500g (without axle).
The luggage carrying weight capacity of the Range fork is 1kg per side. We recommend distributing weight evenly between the two sides so as not to affect handling.
The range fork is not supplied with cargo mount bolts.
The bolts required for the cargo mounts are size M5. The minimum thread insertion depth with cargo fitted must be 10mm.
The maximum bolt thread insertion depth is 16mm on the topmost and middle mounting hole.
The maximum bolt thread insertion depth is 12mm on the lowest hole.
To simply blank the holes when not using any racks, we recommend bolts with a thread of 10mm length.
To mount racks to your fork - we cannot recommend exact bolt lengths, as the length of bolt required for your rack can vary greatly depending on the thickness of the material used in the construction of your rack or mount. Please refer to the maximum thread insertion depths listed above. You must check that the bolt used will have the correct thread insertion depth when the rack is fitted. If bolts of too short a length are fitted it may cause the threads to strip and the rack or mount to fail. If bolts of too long a length are fitted, you will damage the carbon inside the fork.
