DESCRIPTION

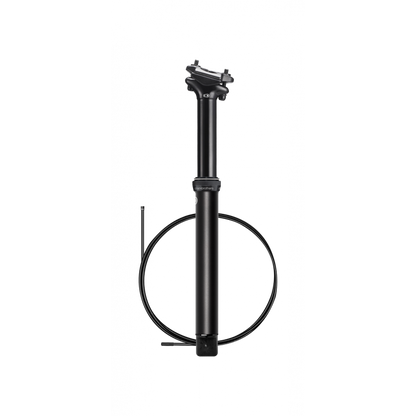

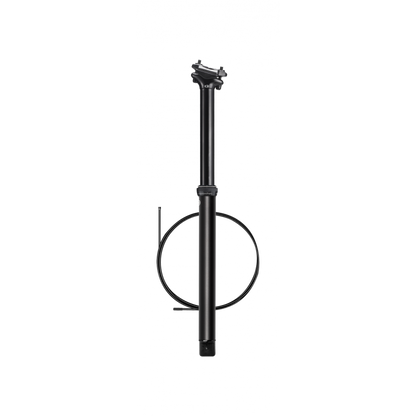

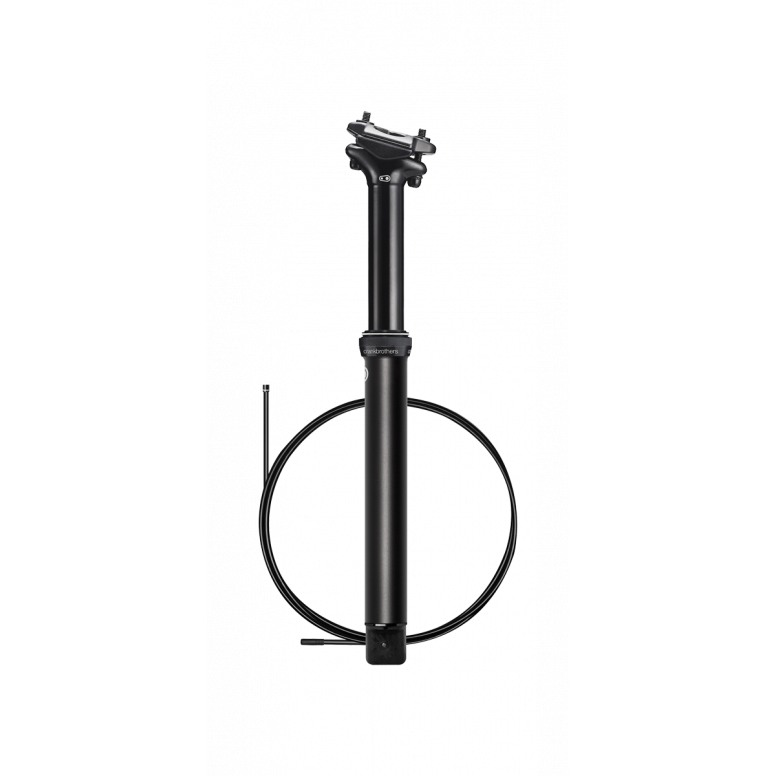

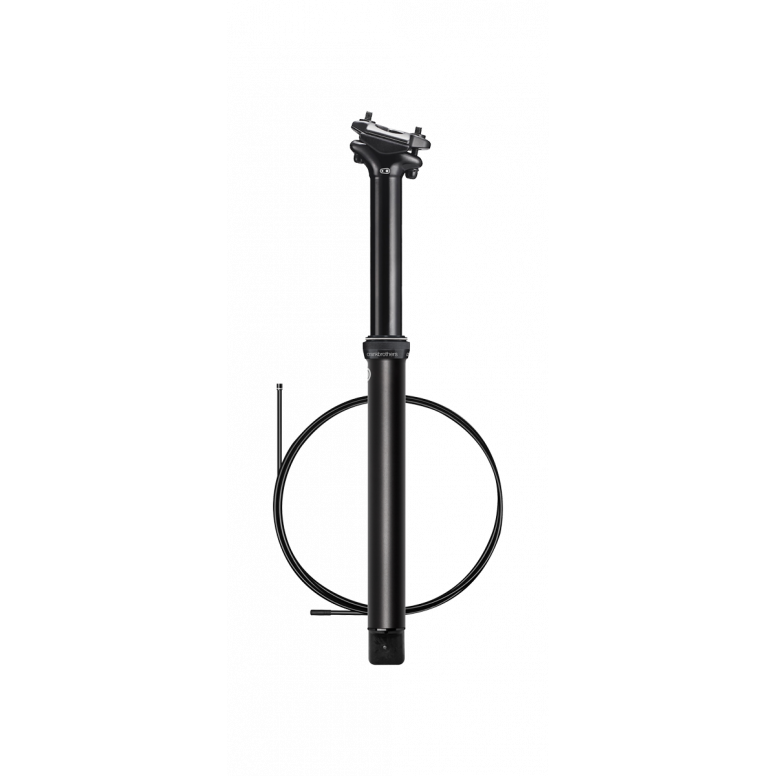

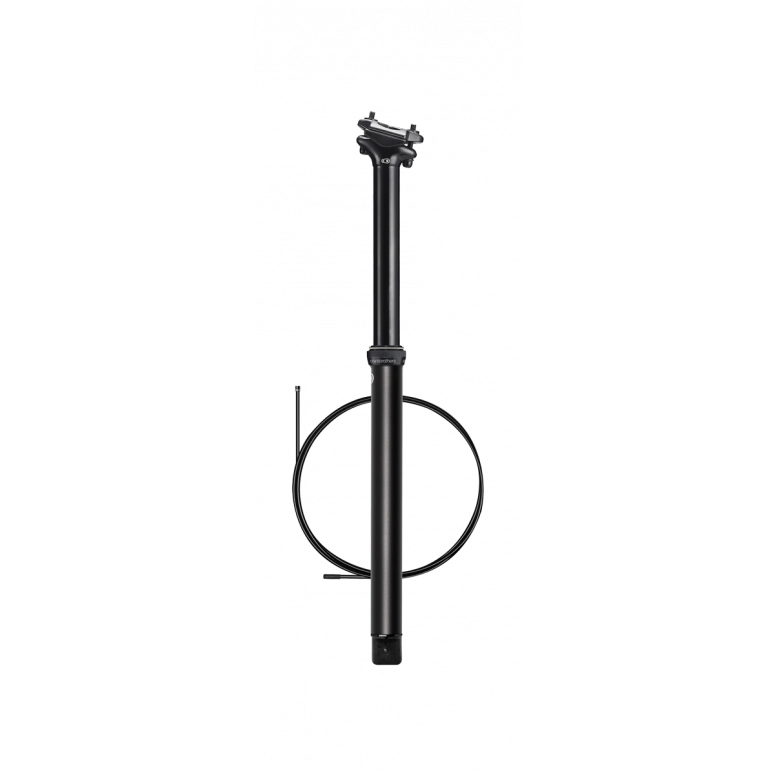

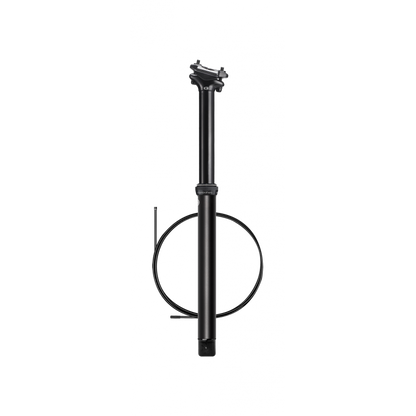

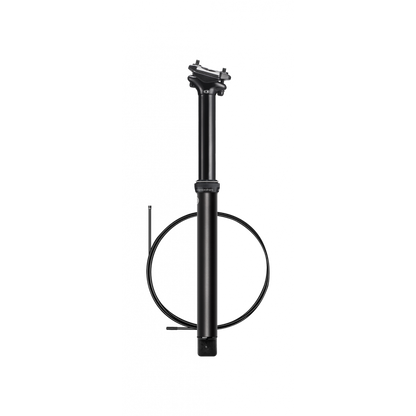

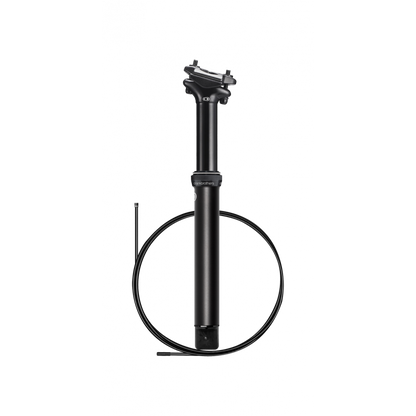

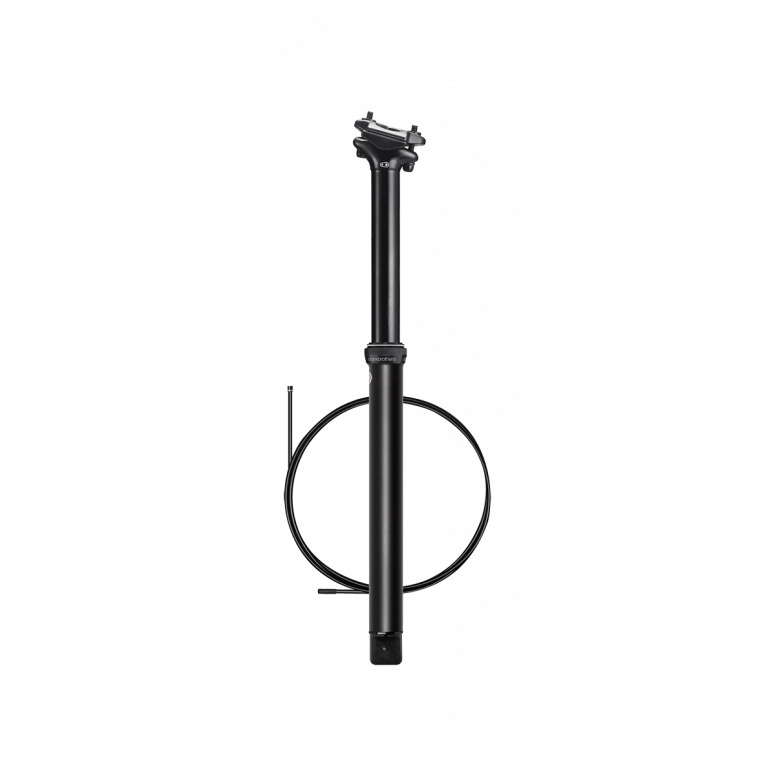

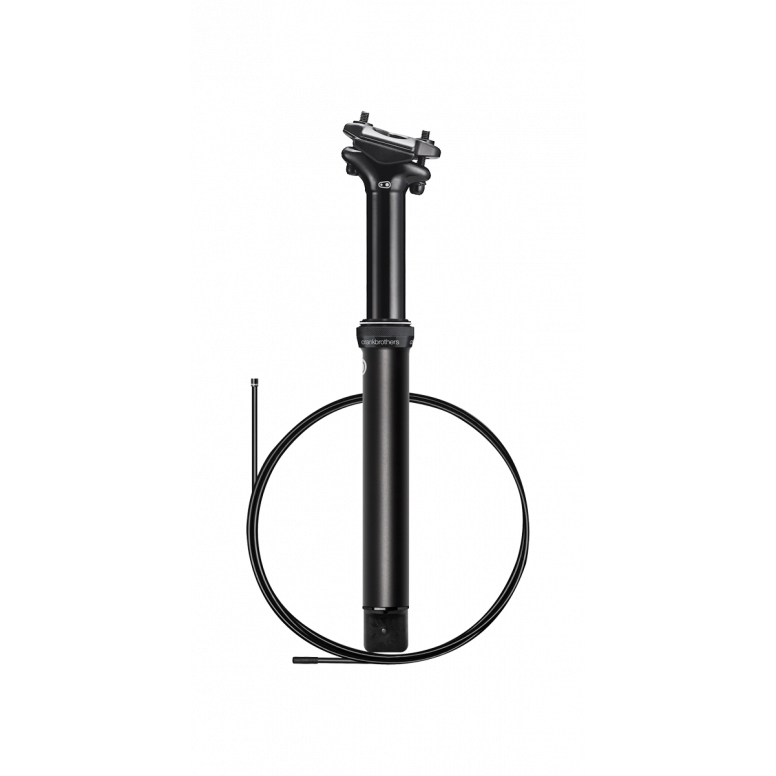

The all-new Highline delivers infinite adjustment, smooth feel, and easy installation for any bike.
Details
- Shorter insertion length to fit more bikes
- Premium Trelleborg® sealing
- Exclusive Igus® LL-glide bearings and keys
- Jagwire® cable and housing
- Self-contained hydraulic cartridge delivers industry leading quality and reliability
- Internal routingÂ
- Quick connect mechanism for ease of cable installation
- Linear actuator for quick return speed
- 2-bolt standard head
- Remote sold separatelyÂ
Specifications
- Material: 7075-T6 aluminum
- Setback: 0
- Minimum stack height: 47mm
- Warranty 2 years
Specs 80mm;
- Max extended length: 100mm
- Max insertion length: 264mm
- Total post length: 380mm
- Weight: 460g (27.2), 550g (30.9), 560g (31.6)
Specs 100mm;
- Max extended length: 241mm
- Max insertion length: 220mm
- Total post length: 370mm
- Weight: 480g (27.2), 485g (30.9), 503g (31.6), 580g (34.9)
Specs 125mm;
- Max extended length: 290mm
- Max insertion length: 245mm
- Total post length: 421mm
- Weight: 525g (30.9), 545g (31.6), 635g (34.9)
Specs 150mm;
- Max extended length: 337mm
- Max insertion length: 270mm
- Total post length: 469mm
- Weight: 565g (30.9), 587g (31.6), 685g (34.9)
Specs 170mm;
- Max extended length: 378mm
- Max insertion length: 285mm
- Total post length: 505mm
- Weight: 586g (30.9), 609g (31.6), 735g (34.9)
