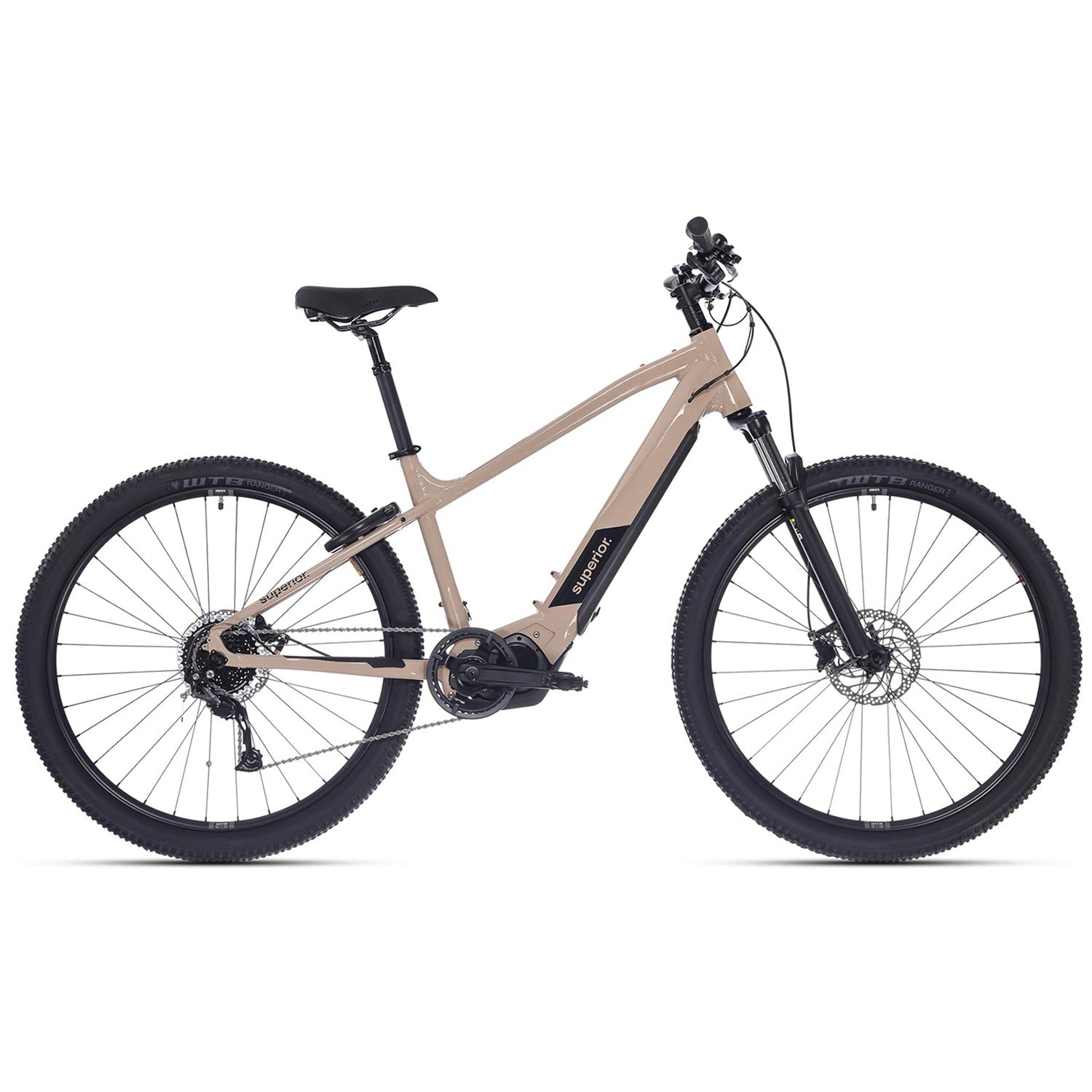

Purpose-built for trail exploration, weekend leisure, and everyday versatility, this e-bike blends off-road capability with urban comfort. Powered by the SHIMANO STEPS E6100 drive unit and a 504 Wh DARFON battery, it delivers up to 120 km of assisted range with 60 Nm of torque-ideal for rolling terrain, gravel paths, and light commuting.
The Shark Spine EVO 29er frame geometry and 100mm coil suspension fork offer confident handling on mixed surfaces, while hydraulic disc brakes and wide 29x2.25" tyres ensure control and grip in all conditions. With a 150 kg load capacity and EN17406 off-road certification, it’s ready for riders who value reliability, comfort, and multi-purpose performance.
This e-bike frame is built from lightweight yet durable 6061 T6 aluminium, shaped with custom tubing and smooth welds for a clean, refined look. Its Fun Ride Geometry and Shark Spine EVO design offer confident handling and comfort across varied terrain, whether you're commuting or exploring. The second-generation battery integration keeps the lines sleek, while internal cable routing and a replaceable derailleur hanger add practicality.
Base Info
- E-System: SHIMANO STEPS E6100, 60Nm
- Range: 120km
- Support speed up to: 25km/h
- Weight: 25kg
E-Bike Parts

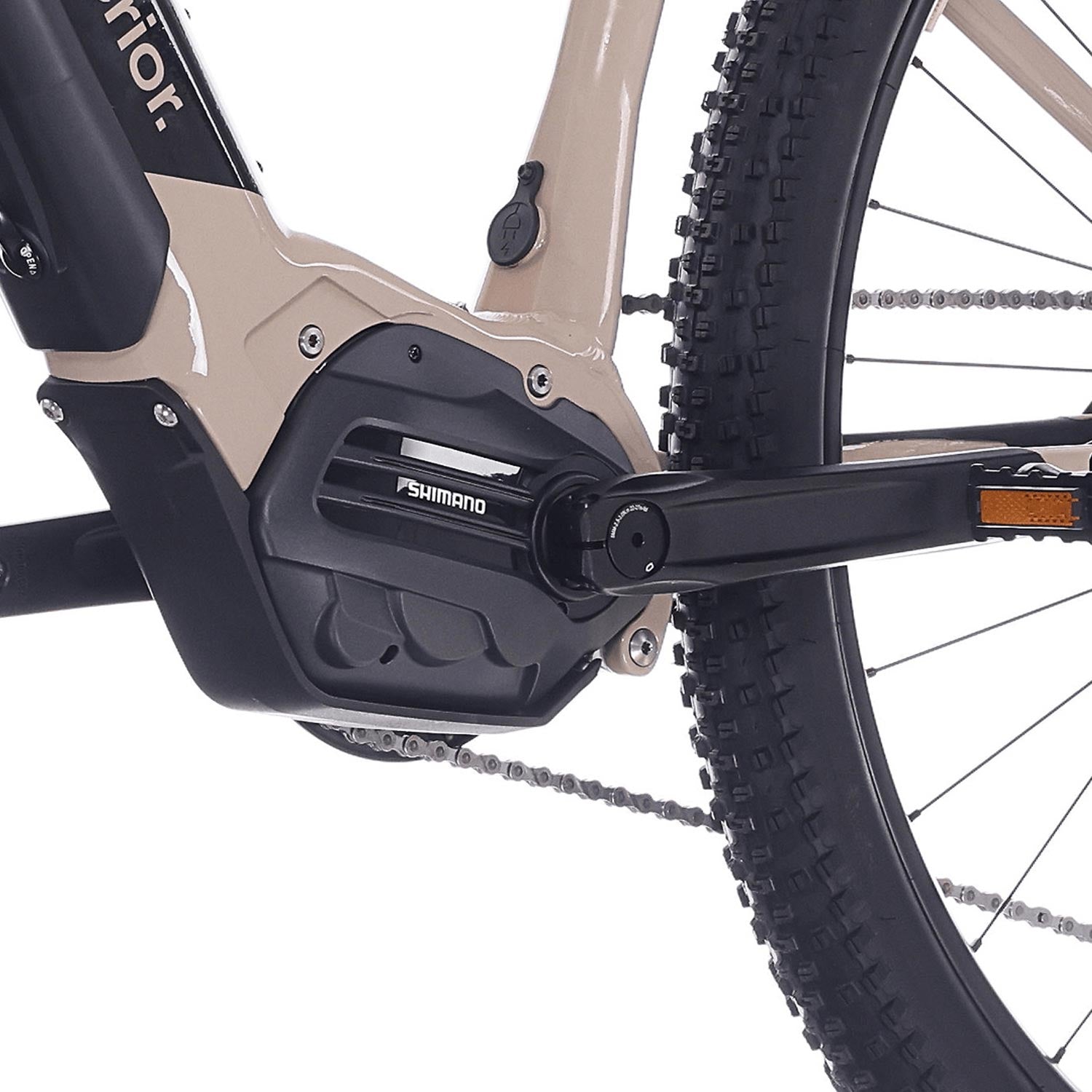

- Motor: SHIMANO STEPS E6100, 60Nm
- Charger: DARFON 2A
- Battery: DARFON, 504Wh
- Display: SHIMANO SC-E5000
Frameset
- Frame: Alloy Al-6061 T6 Custom tubing, Smooth Welding, Integrated battery

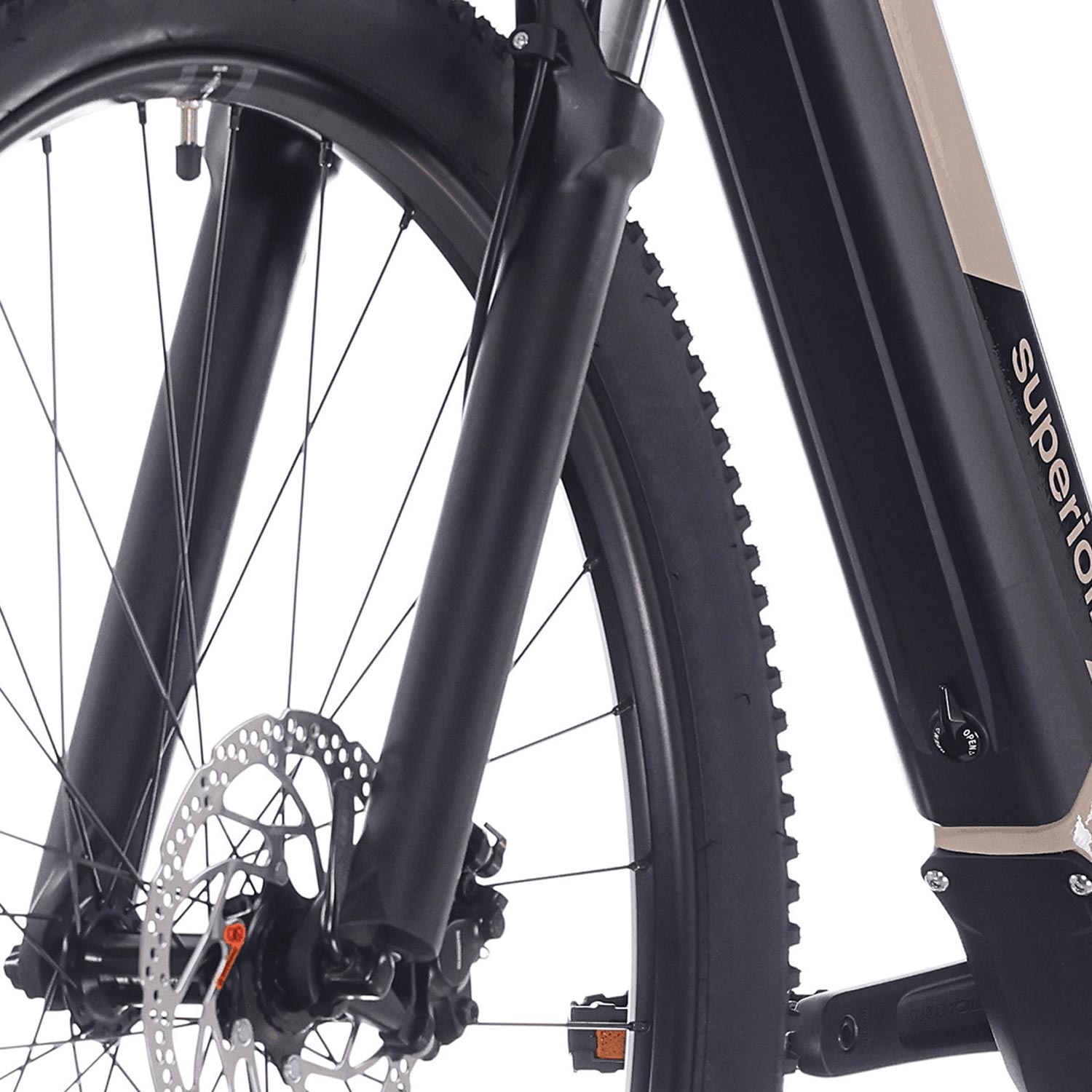

- Suspension Fork: ZOOM 595S AMS HLO, 1-1/8", Coil, QR Type, 100mm travel, Hydraulic Lockout
- Headset: ACROS, 310.52.536R2

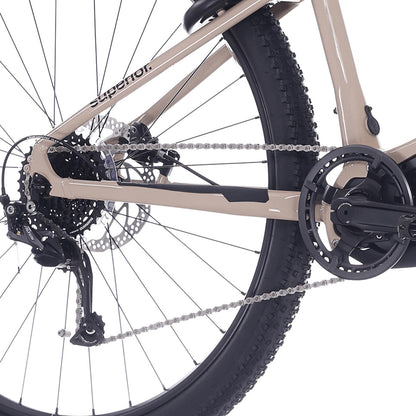

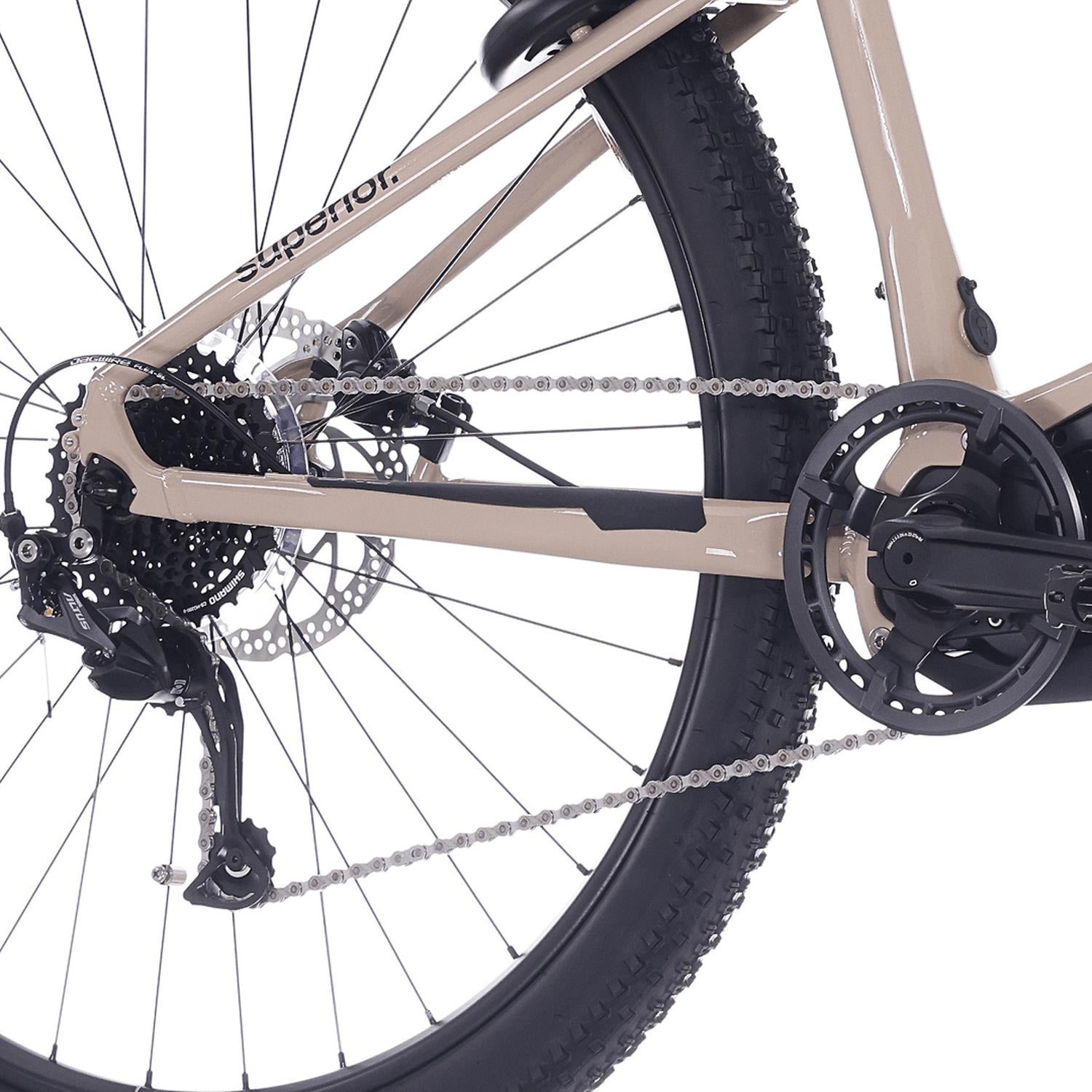

Drivetrain
- Shifters: SHIMANO ALTUS SL-M2010-9R, RapidFire Plus, 9-speed
- Rear Derailleur: SHIMANO ALTUS RD-M2000, Shadow Design

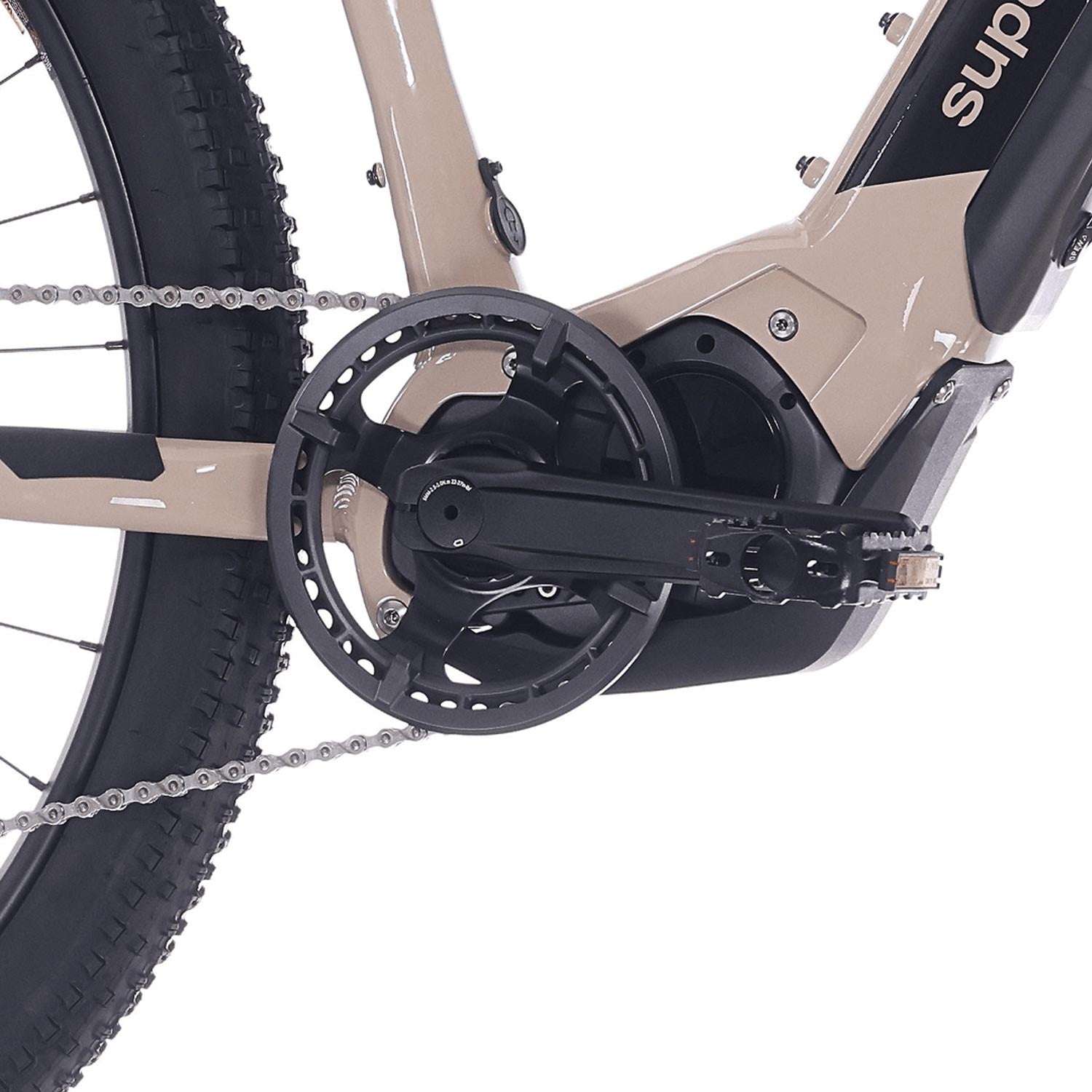

- Crankset: ONE Sport, Alloy, SHIMANO SM-CRE61, 38T
- Cassette: SHIMANO CS-HG200, 9-speed, 11-36T
- Chain: KMC e9S
Braking system

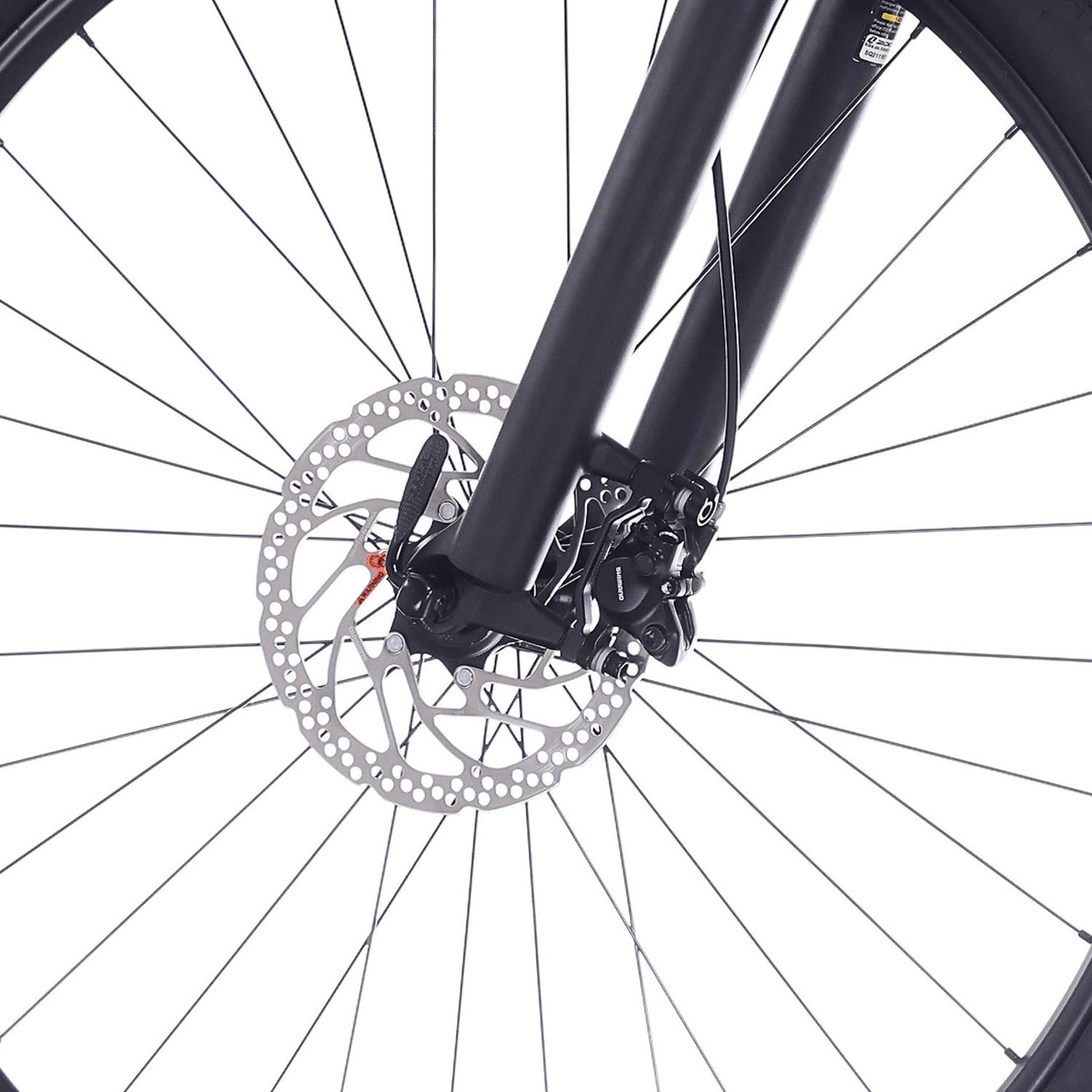

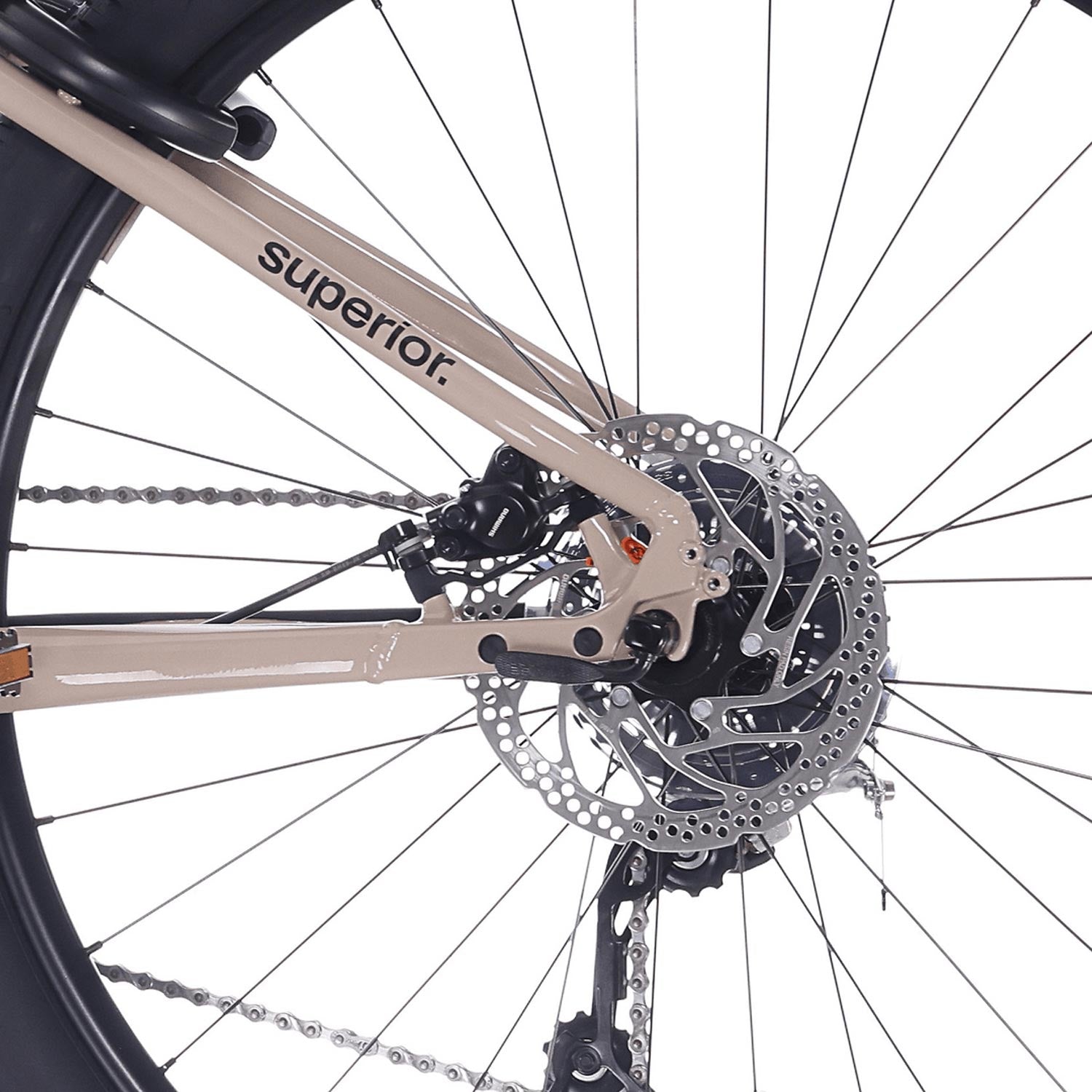

- Brakes: SHIMANO MT200, hydraulic disc brake
Wheels
- Rims: WTB SX19, 32H
- Tyres: WTB Ranger Comp, 29x2.25, Wired Bead

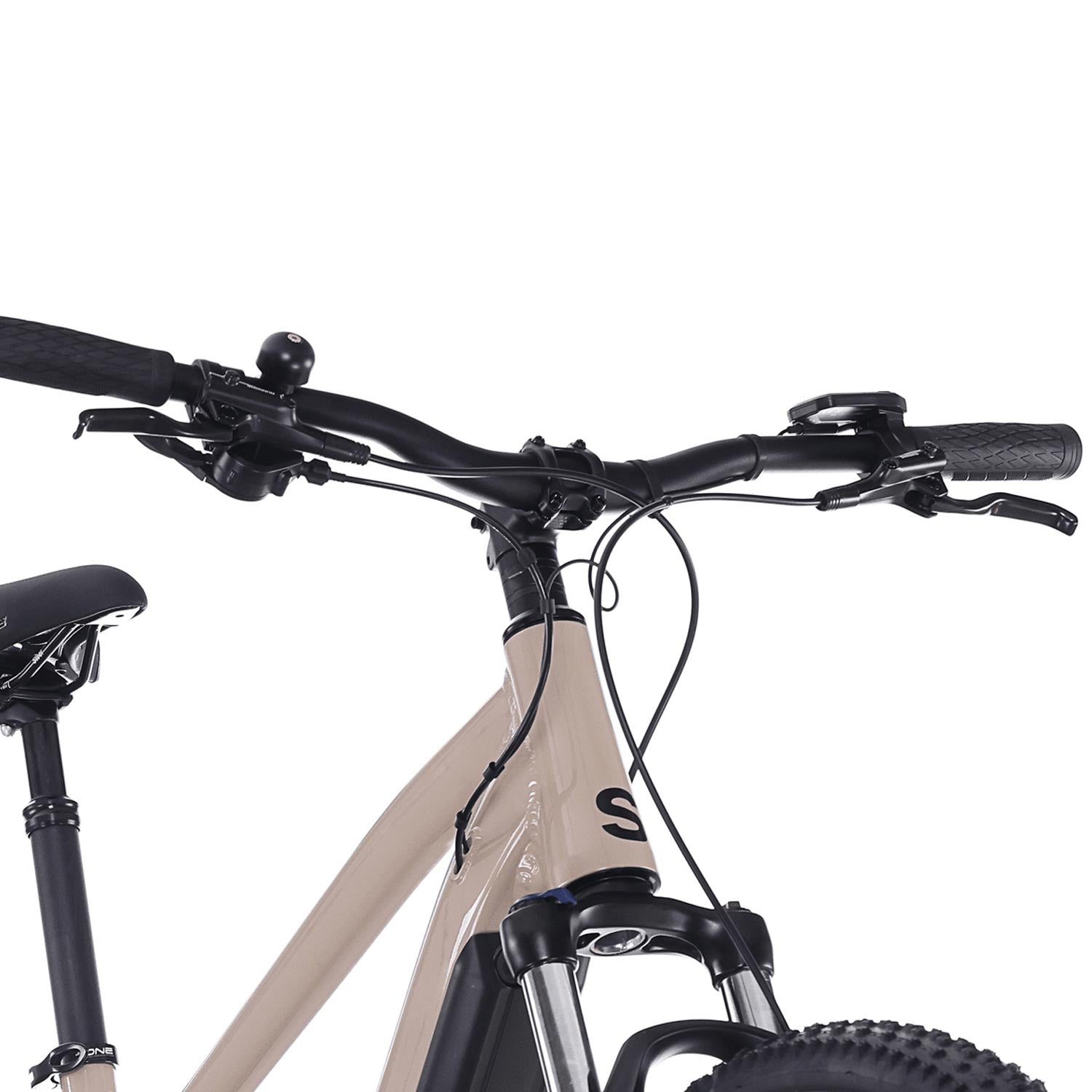

Cockpit
- Stem: ONE, Alloy, 31,8mm
- Handlebar: ONE Alloy, 25mm rise, 31.8mm
- Grips: ONE Sport Ergo, Lock-On
Parts

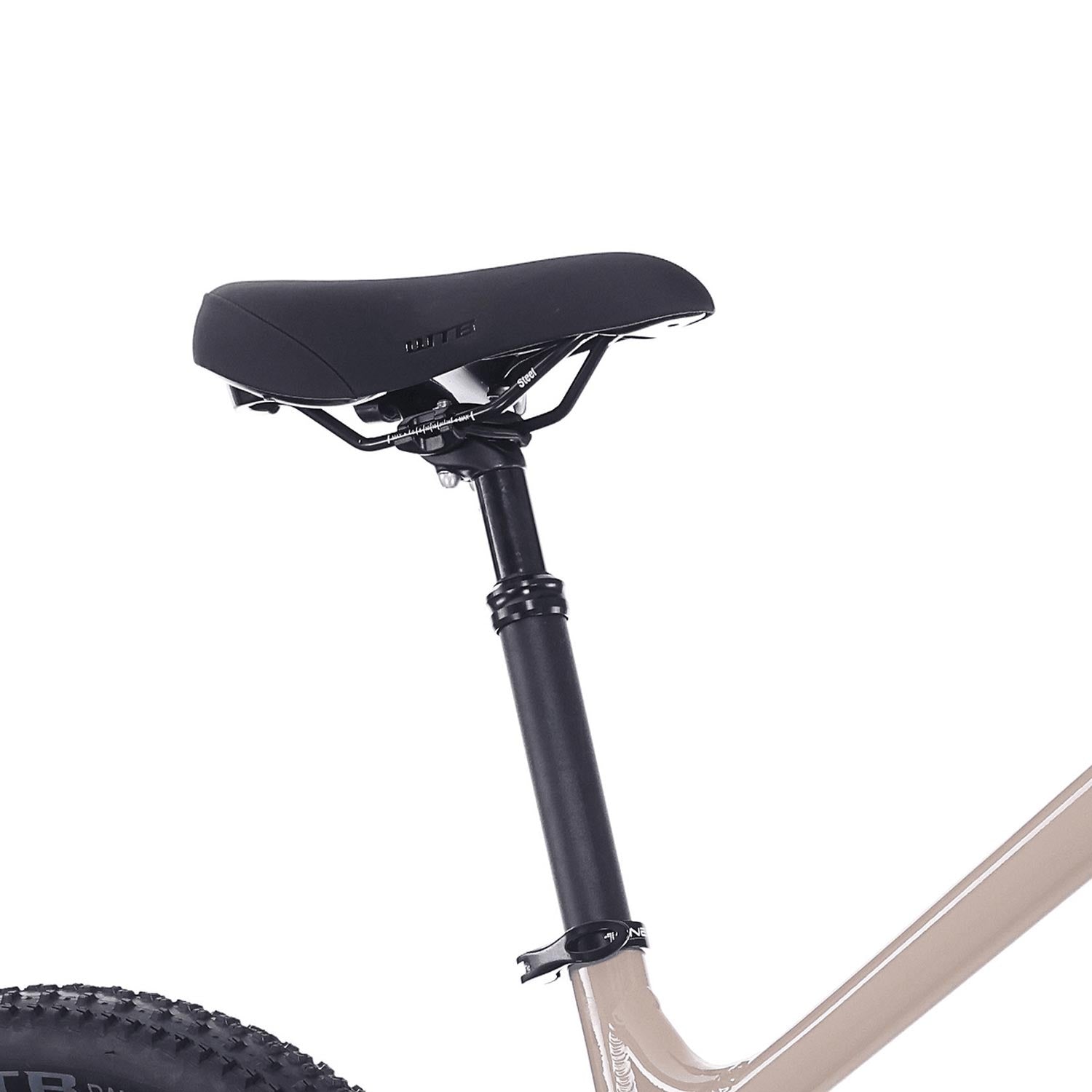

- Saddle: WTB Volt Sport
- Seatpost: ONE, Alloy, Suspension, 30.9mm
- Pedals: Marwi SP-827
Please Note: Bike Specification May Be Subject To Change Without Notice
