DESCRIPTION

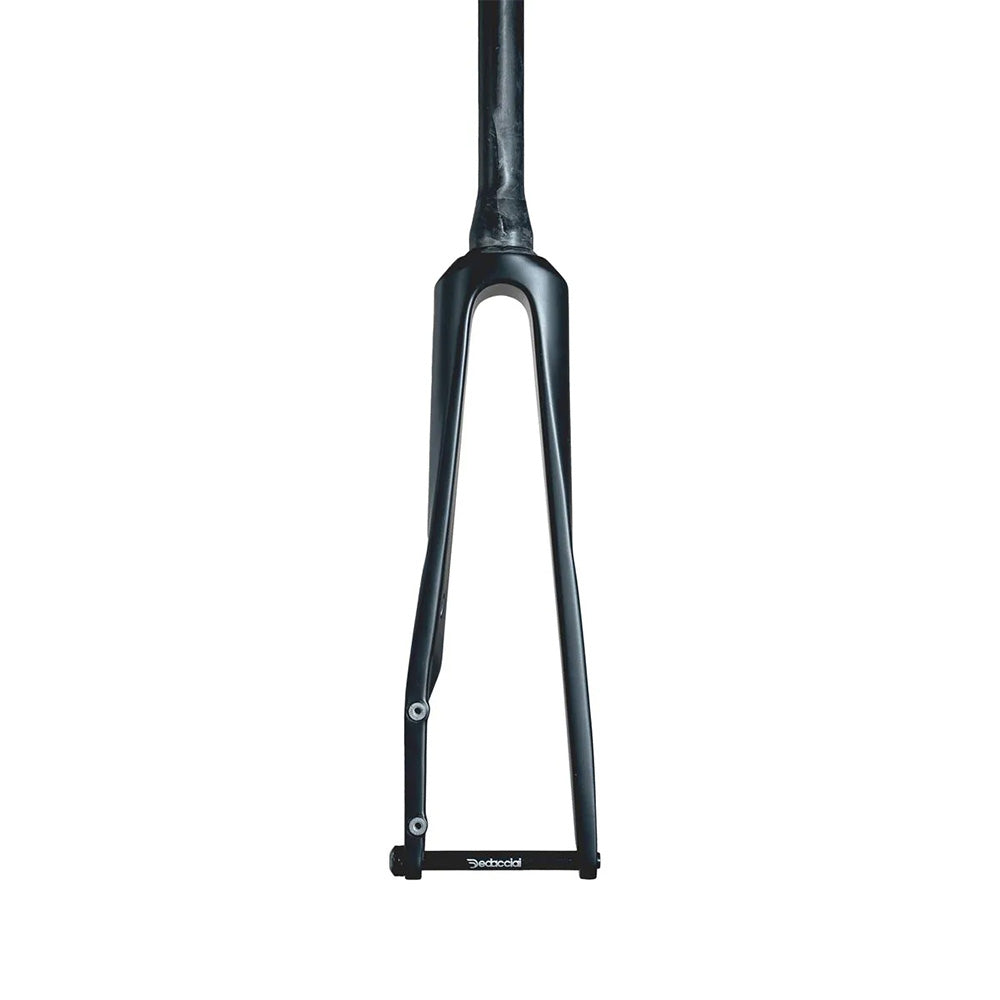

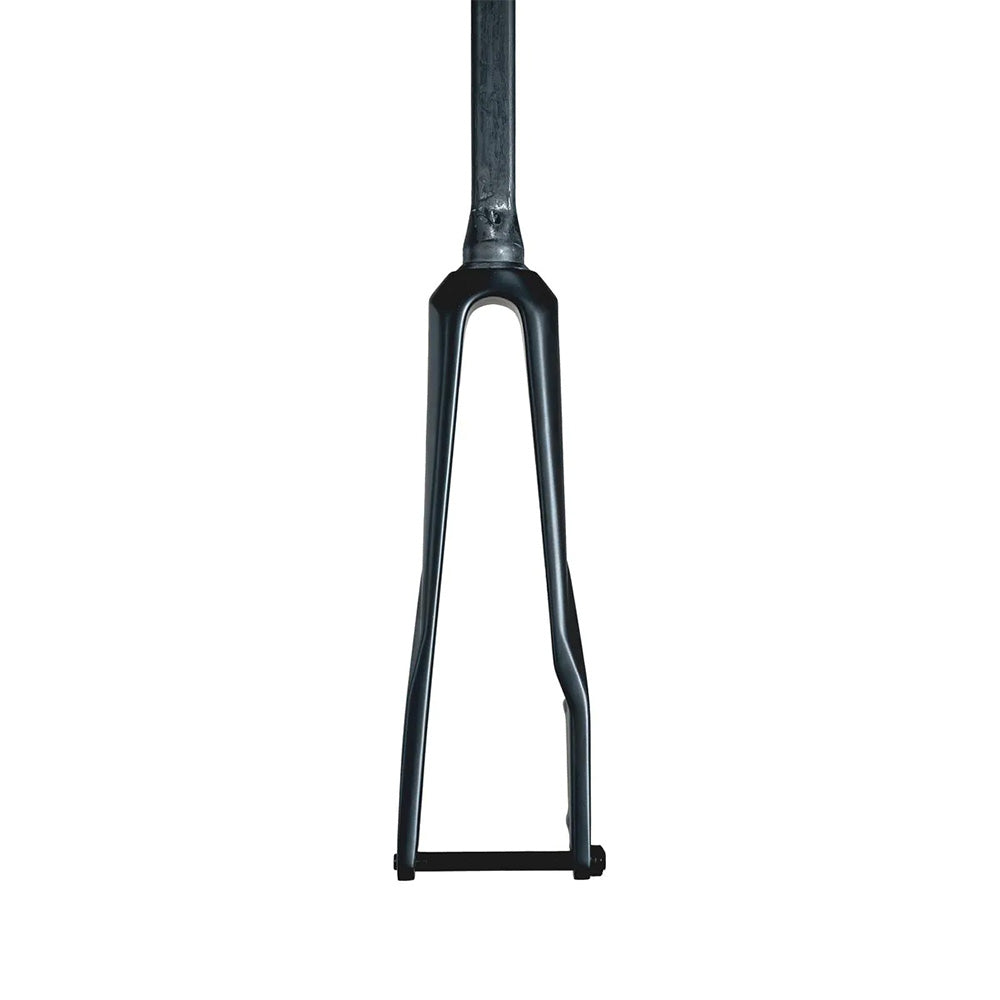

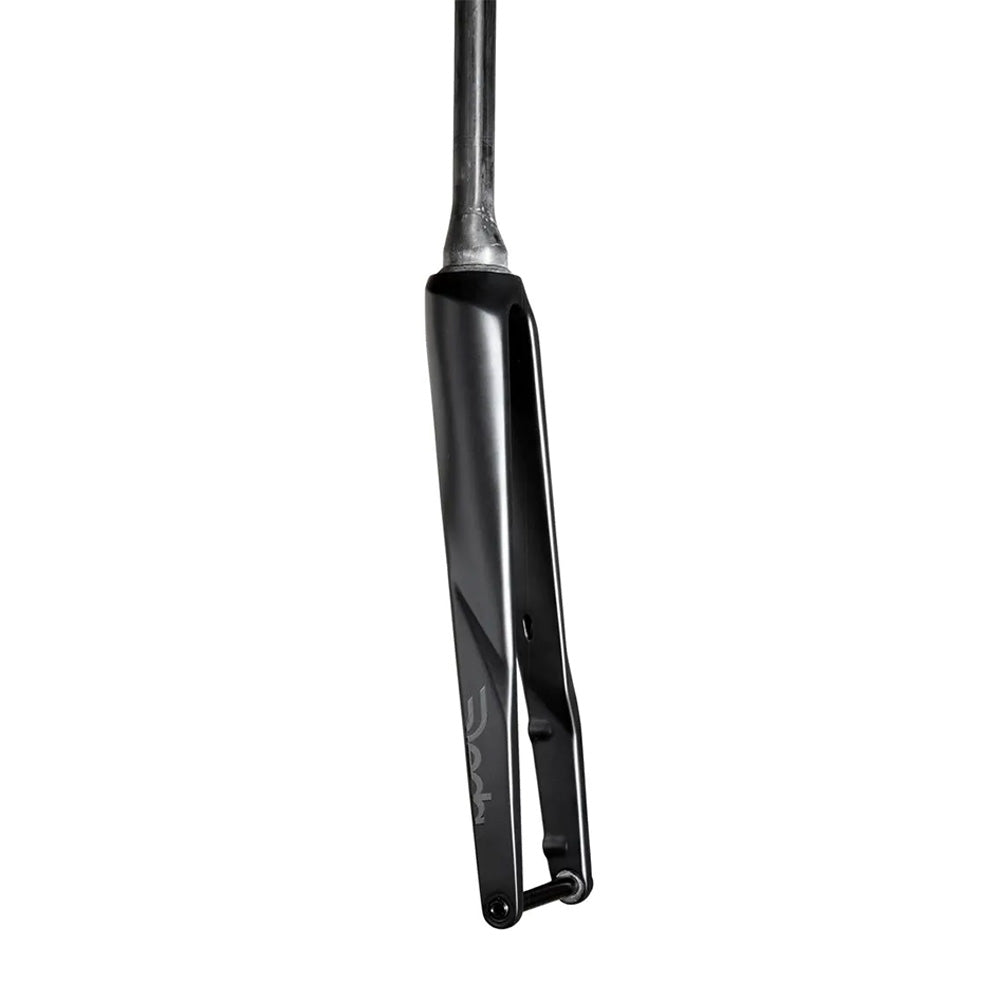

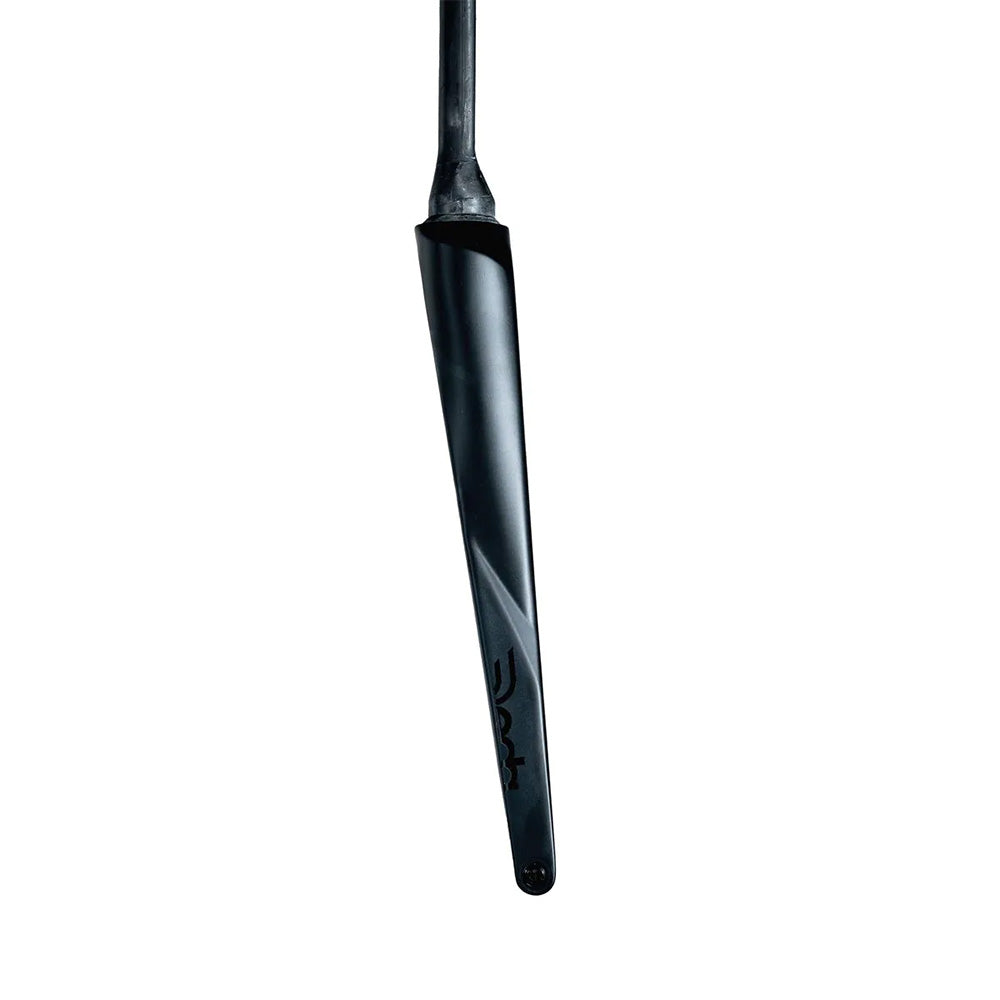

EDG ROAD fork is designed to be compatible with a road bicycle frame. It is designed to be compatible with both standard stems and DCR (Deda Cable Routing) stems, allowing for different cable routing options. Specifically, it supports: standard stems (up to 3 cables, which can include two brake housing cables and one mechanical or electronic shifting cable); DCR stems (up to 4 cables, accommodating two brake housing cables and two shifting cables - mechanical or electronic).
Technical Specifications
- Material: Full carbon fibre
- Fork steerer: D-Shape 1"1/8
- Headset Compatibility: Upper bearing 1” 1/8 lower bearing 1.5”. 45 degrees integrated crown race
- Steerer length: 350mm
- Axle crown length: 369mm
- Rake: 45m
- Axle compatibility: 100x12mm thru axle (Included)
- Crown diameter: 56mm
- Disc brake rotor compatibility: Flat mount 140mm or 160mm
- Max fork load: 15k per side (5kg per eyelet)
- Finish: UD carbon with POB logo
- Max Tyre clearance: 28"
- Weight: 414g
Compatibility
- Frame: any bicycle frame featuring internal cable routing system and fitting Deda DCR headset, Deda Classic 1 and Classic 2 or tapered 1” 1/8-1.5” / 1” 1/4 -1.5” / 1.5” -1.5”
- Stem: All Deda stems are compatible or the stems with a large opening between the fork steerer and stem body to allow the internal cable routing
- Bearing Compatibility: Upper: headset/frame headtube with 1” 1/8, 1” 1/4 or 1.5” ; Lower: 1.5” bearing; 45 degrees contact angle bearing
- Internal cable routing: With a standard stem up to 3 cables (two brakes housing cables and mechanical/electronic shifting cable); with a DCR stem up to 4 cables (two brakes housing cables and two shifting cables)
Accessories
- Dedacciai "EXP" 23.5mm and topcap
